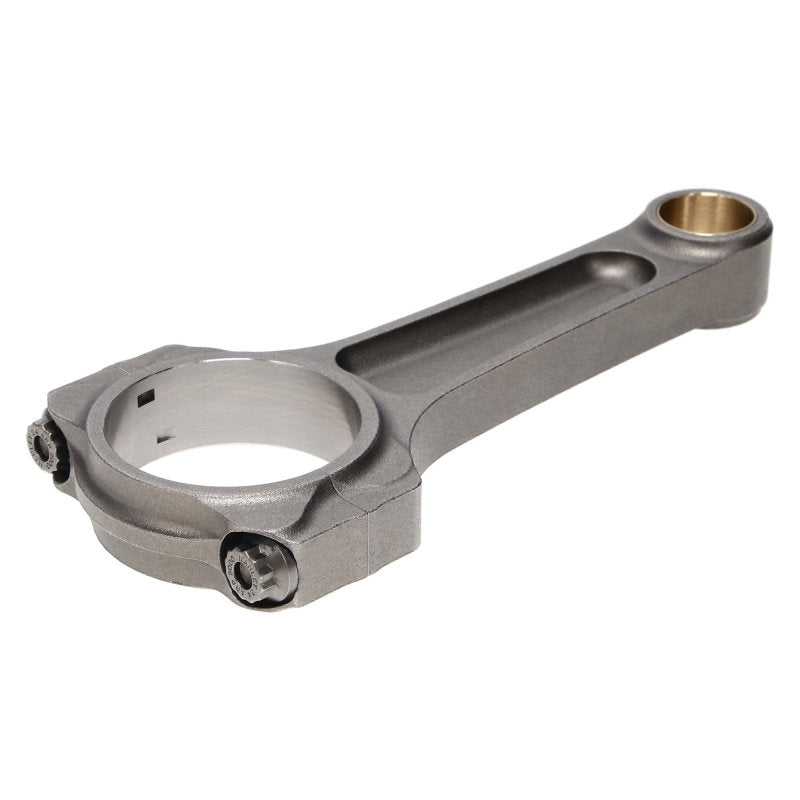

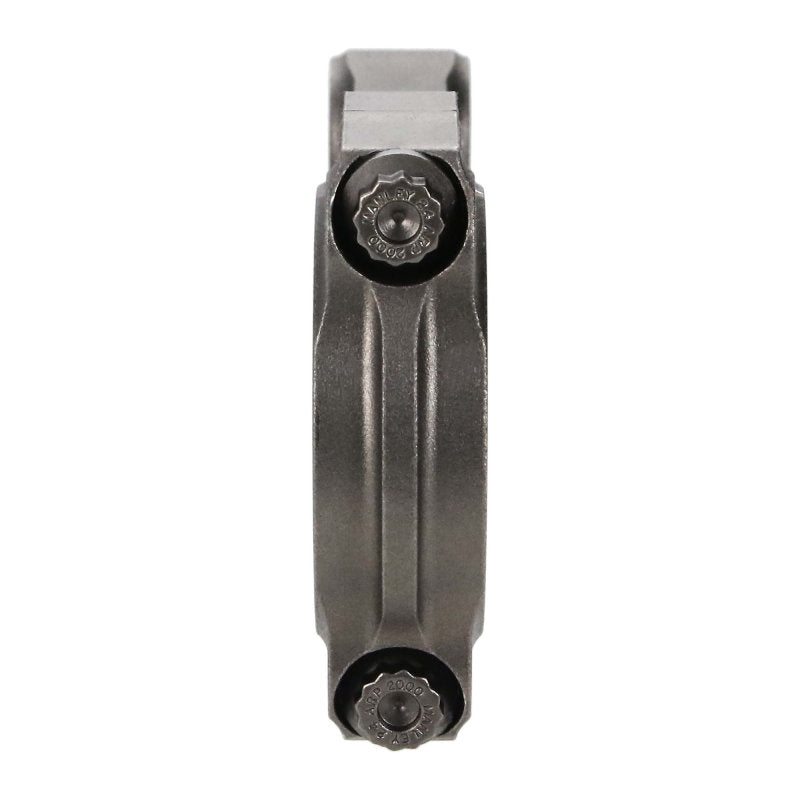

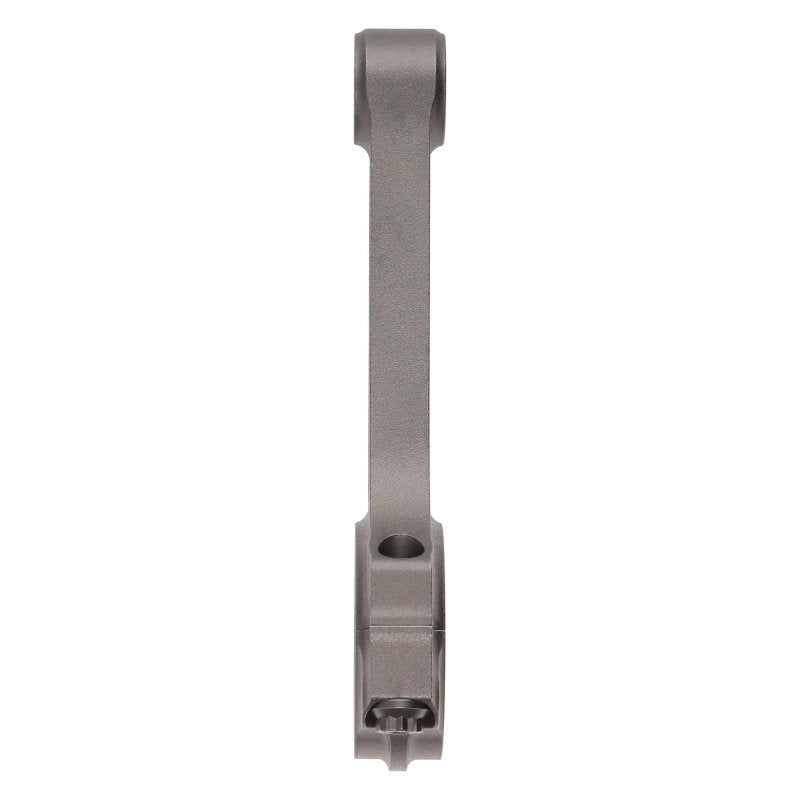

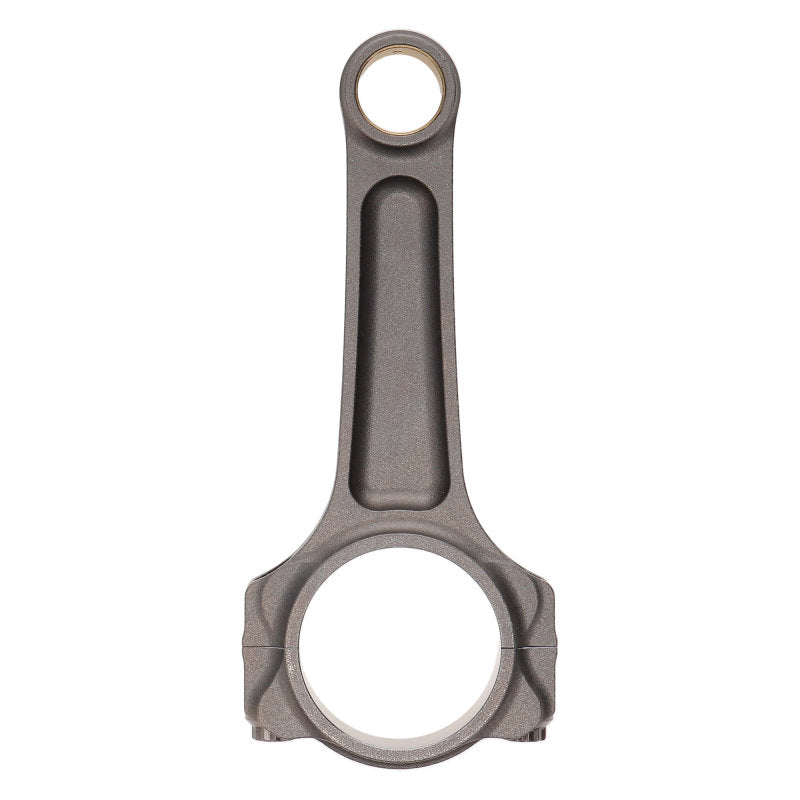

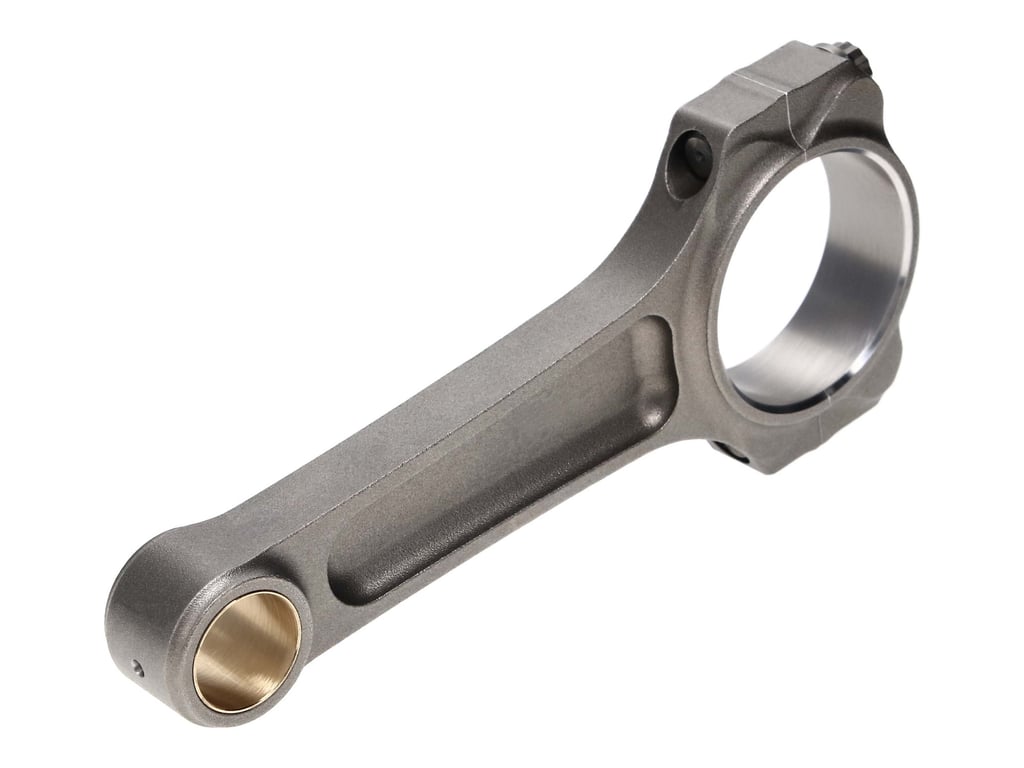

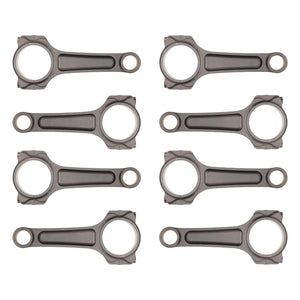

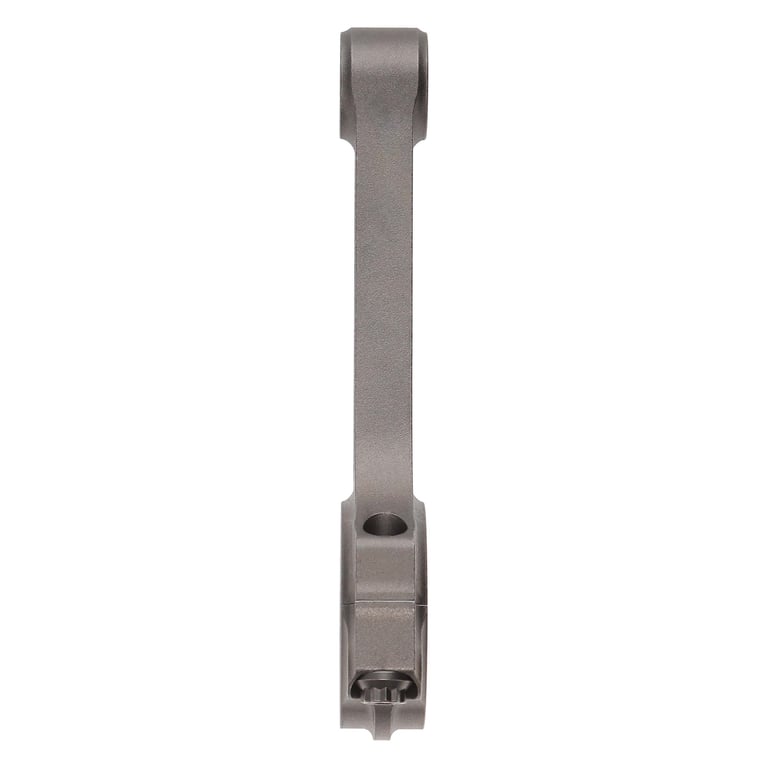

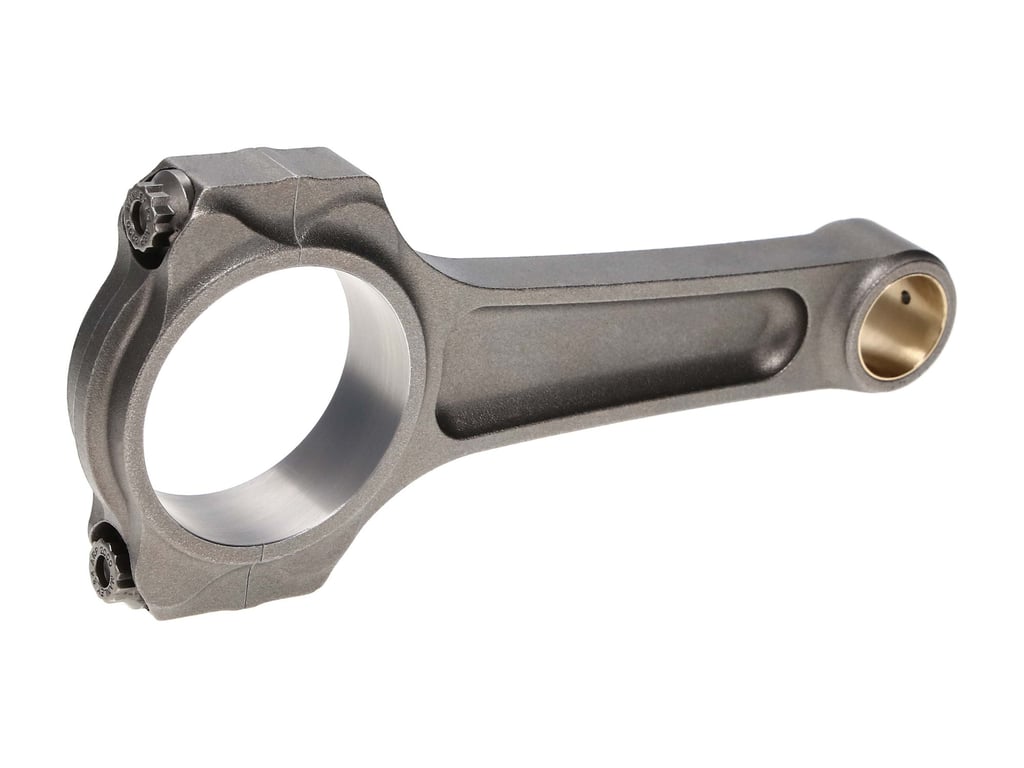

Manley Small Block Chevy .025in Longer LS-1 6.125in Pro Series I Beam Connecting Rod Set - 14359-8

Manley's Pro Series I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.

Features

• Designed for ultimate performance with superior materials: forged 4340 or 300M vacuum degassed steel alloys
• NHRA Legal Certification for some SKUs - Stock and Super Stock
• Versatile Weight Options: Tour Lites, Light, Standard, Heavy

Specs

• Center To Center Length: 6.125 in
• Big End Bore: 2.225 in
• Pin Bore: 0.9281 in
• 7/16" ARP 2000 Bolts
• Approx. HP Rating: 700+
• For LS engines with pistons ready to accept 6.125” length rods. Stock LS rods are 6.100” long. Note the pin bore is .9281”. Stock LS pins are .945” diameter. The 14359-8 has no offset on the crank journal, same as the stock LS connecting rods
• Product Market: Domestic
• Average Gram Weight: 615
• Big End Bore: 2.225
• Center To Center Length: 6.125
• Journal Size: Stock
• Connecting Rod Journal Diameter: Stock
• Length: .025 longer
• Pin End Bore: 0.9281
• Wrist Pin Diameter: 0.927
• Connecting Rod Series: Pro Series I-Beam
• Connecting Rod Sub-Series: Lightweight
• Product Type: Engine Connecting Rod Set

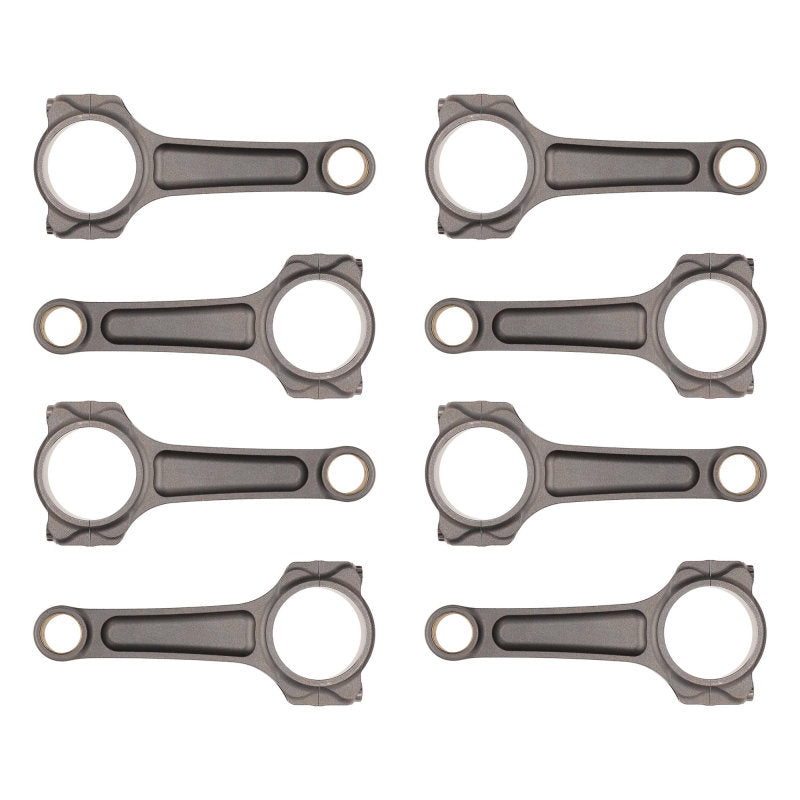

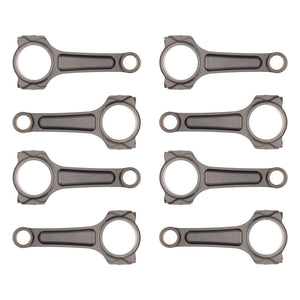

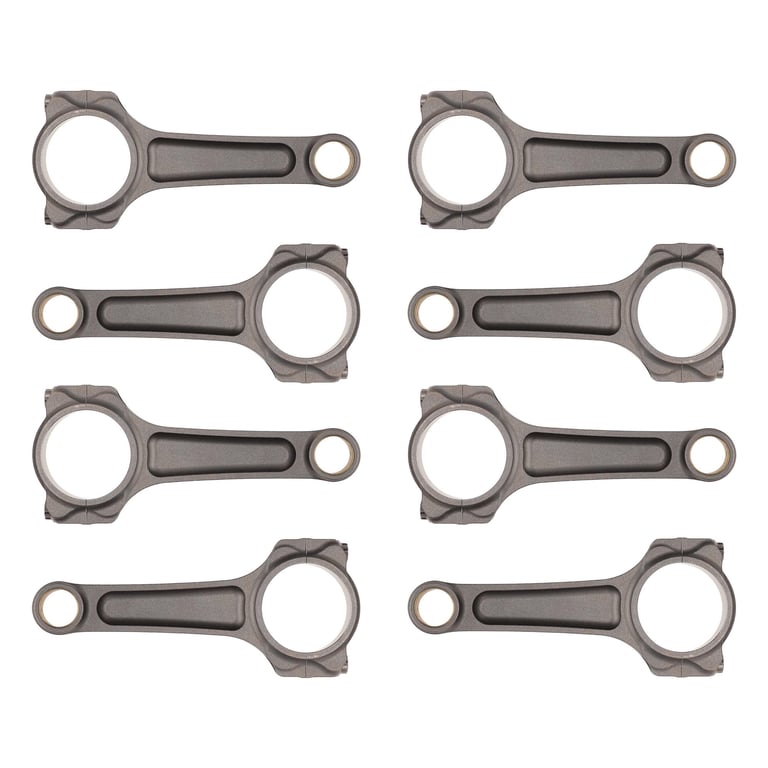

• Rod Quantity: 8
• Rod Bolt Material: ARP 8740
• Connecting Rod Type: I-Beam
• Pin End Width: 1.000
• Connecting Rod Material: 4340
• Industry: Automotive
• Out of Stock Message: Call for Availability
