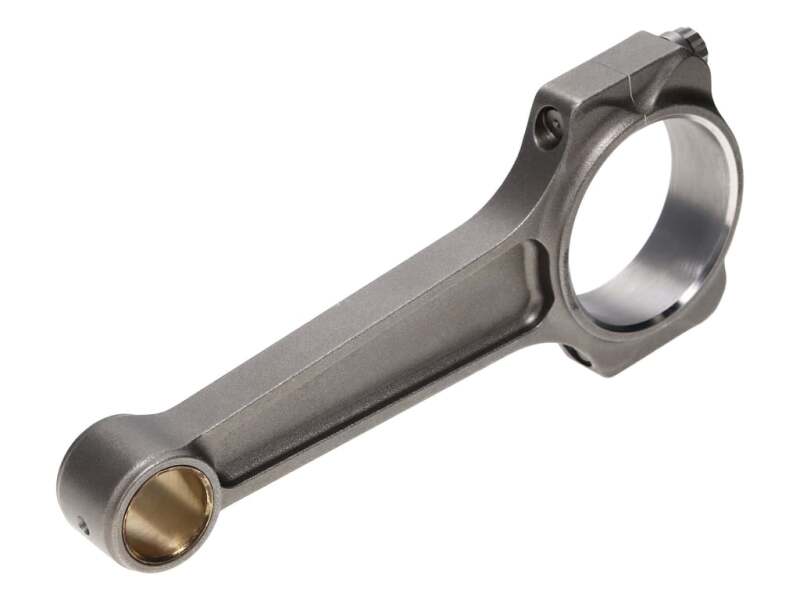

Manley's Turbo Tuff® I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.
Features
- Experience the pinnacle of connecting rod technology with our Turbo Tuff® rods, designed for ultimate performance
- Superior Materials: These rods forged 4340 vacuum degassed steel alloy, engineered for unparalleled performance and durability
- Shot peened after machining to MIL spec and 100% individually magnafluxed
- Specifically designed to handle high horsepower applications when using power adders
- Flywheel horsepower range: 4 cylinder - 1000+ / 6 cylinder - 1250+ / 8 cylinder - 1500+
- Also available by request: Pin Bore to fit 23mm wrist pin for higher HP applications
Specs
- Center To Center Length: 6.081 in
- Big End Bore: 2.2443 in
- Pin Bore: 0.8671 in. (22mm pin)
- 3/8" ARP 2000 Bolts
- Approx. HP Rating: 1700+
- 2004-2016 VK56DE, 2010-2024 VK56VD, 0.866 BEW, .900 PEW, 2.2443 BEH 42050 MODIFIED TO .895 PIN BUSHING
- 42380 DOWEL BUSHING
- 42351 BOLT
- 3/8" ARP 2000. Also available by request: Pin Bore to fit 23mm wrist pin for higher HP applications
- Pin End Bore: 0.8671
- Rod Quantity: 1
- Big End Bore: 2.2443
- Center To Center Length: 6.081
- Wrist Pin Diameter: 22
- Connecting Rod Material: 4340
- Rod Bolt Material: ARP 2000
- Connecting Rod Type: I-Beam
- Journal Size: Stock
- Length: Stock
