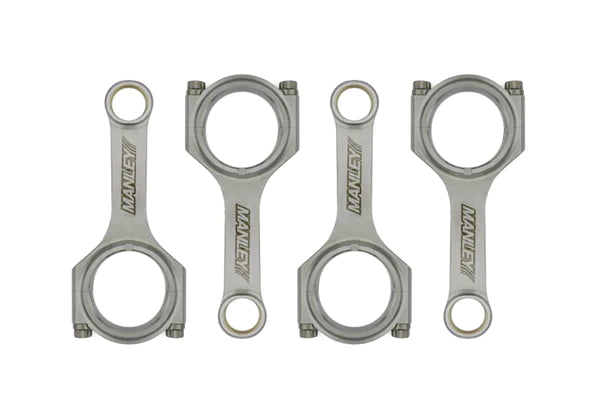

When it comes to H-Beam connecting rods, not all are created equal. Manley's H-Beam Series stands out as a superior choice, offering exceptional quality at an economical price point. These connecting rods are meticulously crafted to meet the same high-quality standards as our renowned Sportsmaster? and Pro Series rods.
Features
- Exacting Tolerances: Our H-Beam rods are finished to exacting tolerances to ensure precision and performance.
- Attention to Detail: Every aspect, from final hone size to thread detail, bend, and twist, is treated with utmost seriousness to deliver connecting rods of the highest quality.
- Exceptional Performance: Manley's H-Beam rods are designed to outperform others on the market, giving you a competitive advantage on the track.
- Flexible Bolt Options: Tailor your connecting rods to your specific requirements with a choice of ARP 8740 or ARP 2000 bolts.
Specs
- Center To Center Length: 5.945 in
- Big End Bore: 2.087 in
- Pin Bore: 0.8671 in. (22mm Pin)
- 3/8" ARP 2000
- Approx. HP Rating: 600+
- Neon SRT-4 2.4L I4 DOHC
- Bolt: 42350
- Torque 60 ft./lbs. (30wt. Oil), Bolt Stretch: .0058”-.0062” (30wt. Oil)
- Average Gram Weight: 595
- Big End Bore: 2.087
- Center To Center Length: 5.945
- Journal Size: Stock
- Connecting Rod Journal Diameter: Stock
- Length: Stock
- Pin End Bore: 0.8671
- Wrist Pin Diameter: 0.866
- Connecting Rod Series: H-Beam
- Product Type: Engine Connecting Rod Set
- Rod Quantity: 4
- Rod Bolt Material: ARP 8740
- Connecting Rod Type: H-Beam
- Connecting Rod Material: 4340
- Industry: Automotive
- Out of Stock Message: Call for Availability
- Prop 65 Yes/No: Yes
