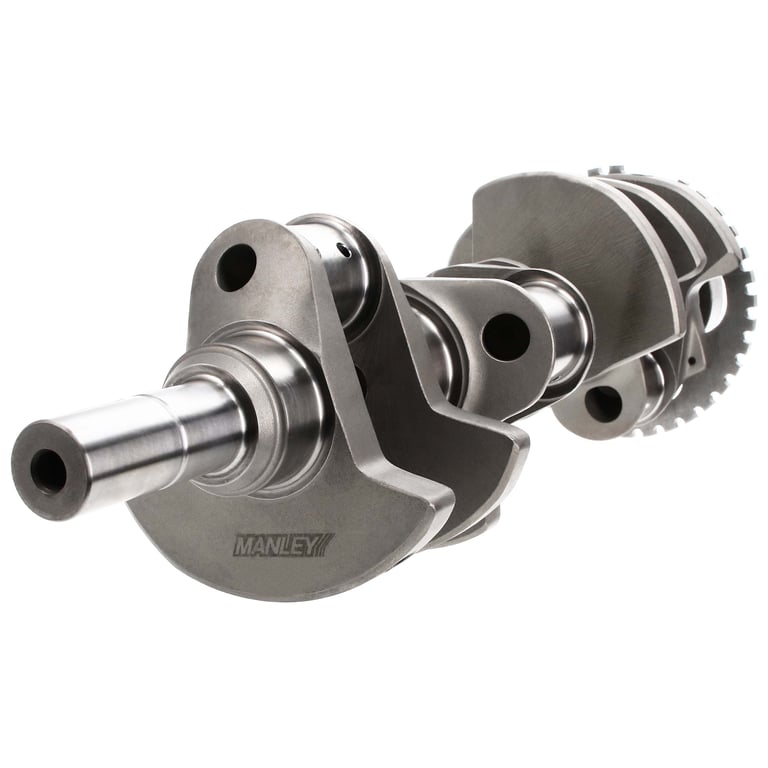

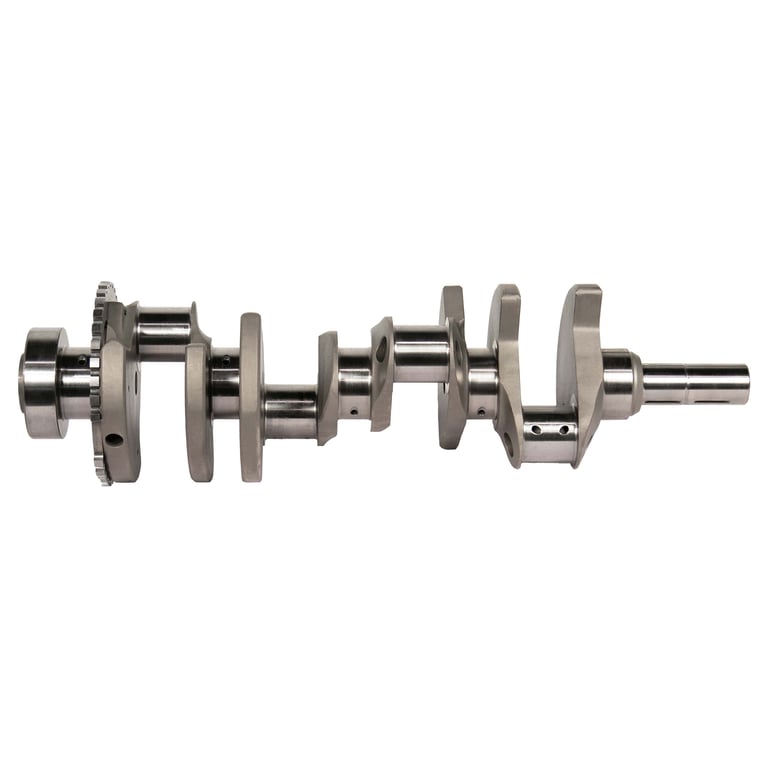

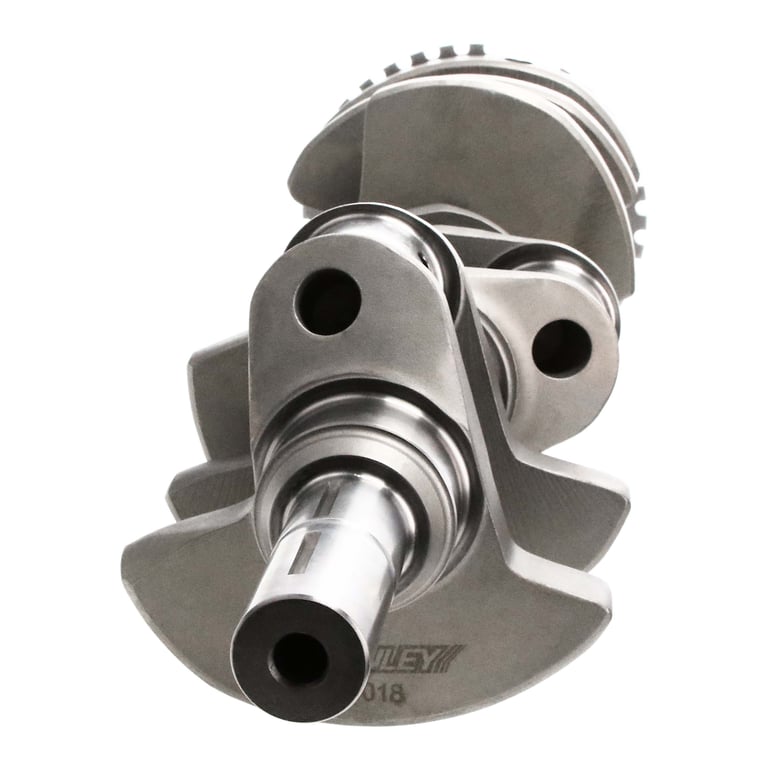

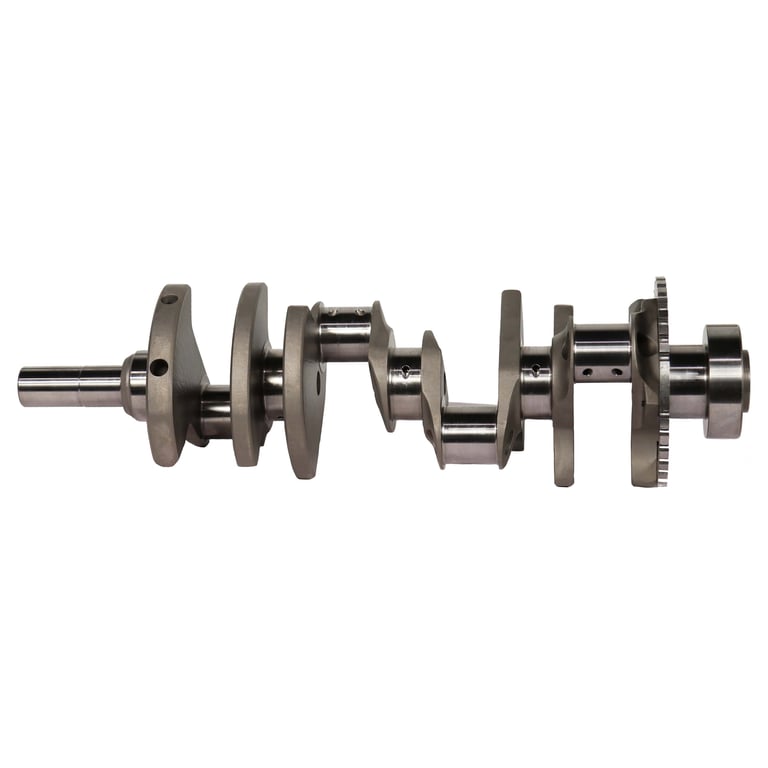

Manley Chrysler 5.7L Hemi Forged Crankshaft - 4.050in Stroke - 191832NB

Manley Performance “PRO SERIES” stroker crankshaft designed for the Gen III small block HEMI engine. Manufactured from a premium 4340 steel forging, these cranks feature a 4.050” stroke which can turn your 5.7L into a 392 c.i. engine and your 6.1L/6.4L into a 426 c.i. engine. The Manley 4.050” stroke HEMI crankshaft features small block Chevy small journal (2.000") crank pin diameters and widths. This provides taller "side walls" on the crankshaft rod journals for better oil control and reduced windage. Counterweights are profiled for 6.125" connecting rods.

Features

• Multi-step heat treatment process and nitrided for added strength to already strong forged 4340 material
• Stress relieved, shot-peened and 100% magnafluxed
• Micro polished large radius journals (narrow rod bearings required)
• Dual keyed post for supercharger drive pulleys
• Gun drilled mains and lightened rod journals for weight reduction
• Counterweights fully profiled

Specs

• Stroke: 4.050 in
• Rod Journal: 2.000 in

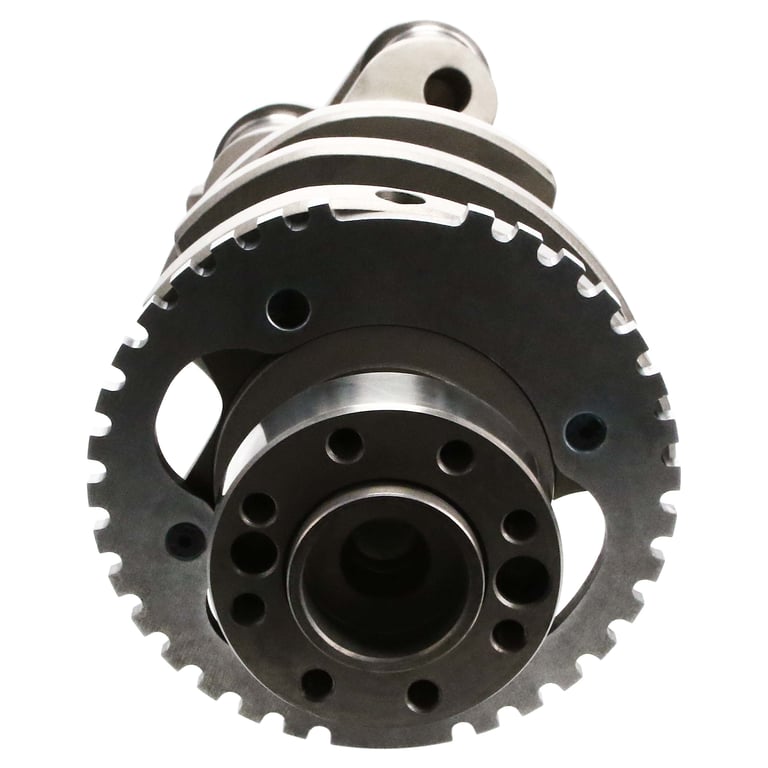

• Reluctor Wheel: 32 Tooth
• Bobweight: 1730 grams (Not Balanced/Non-Drilled)
• This crank is not balanced and has non-drilled counterweights. The stock timing crank gear may need to be chamfered to clear the larger radius on the snout of the crankshaft
• All reluctor wheels are attached with 4 fasteners
• Product Market: Domestic
• Weight: 50.000
• Product Type: Engine Crankshaft
• Engine Stroke: 4.050
• Rod Journal Diameter: 2.000
• Bob Weight: 1730
• Crankshaft Material: 4340 Steel
• Lightened: No
• Reluctor Ring Included: Yes
• Reluctor Wheel Tooth Quantity: 32
• Rear Main Seal Type: 1 Piece
• Material: 4340 Steel
• Industry: Automotive
• Out of Stock Message: Call for Availability
• Title: Manley Crankshaft, CRANK-4340 FORGE 4.050 STROKE
• Prop 65 Yes/No: Yes
• Prop 65 (C, R or CR): CR
• Prop 65 - Short Label: Prop 65 Warning Label.JPG
• Engine Type: ICE
