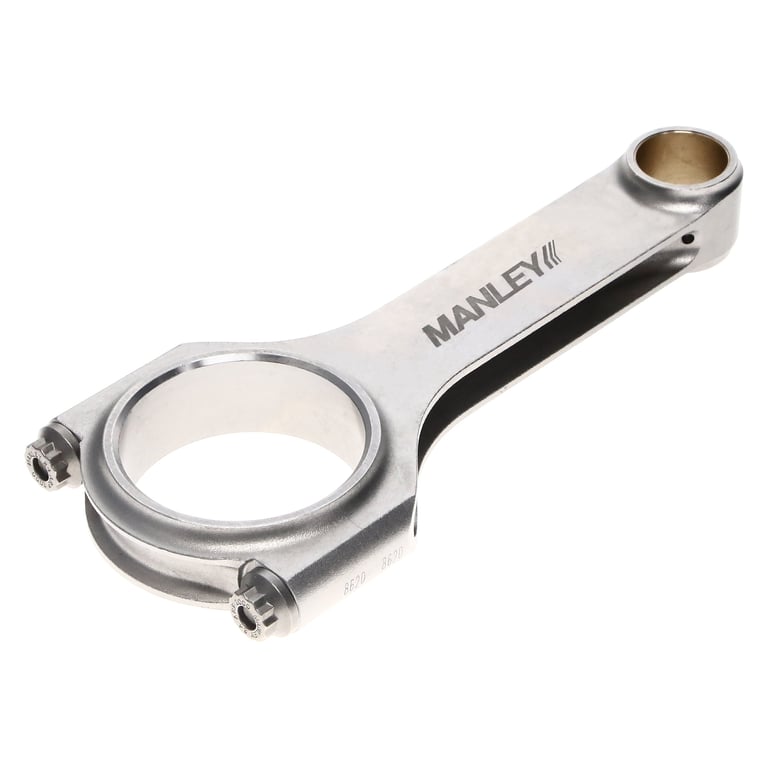

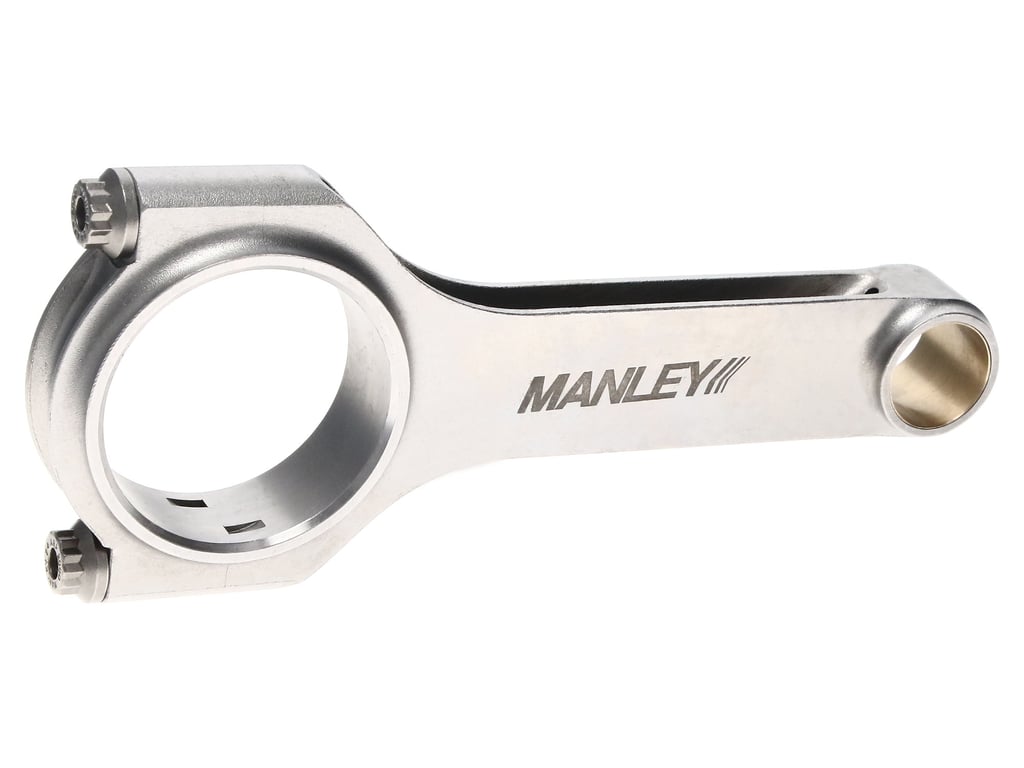

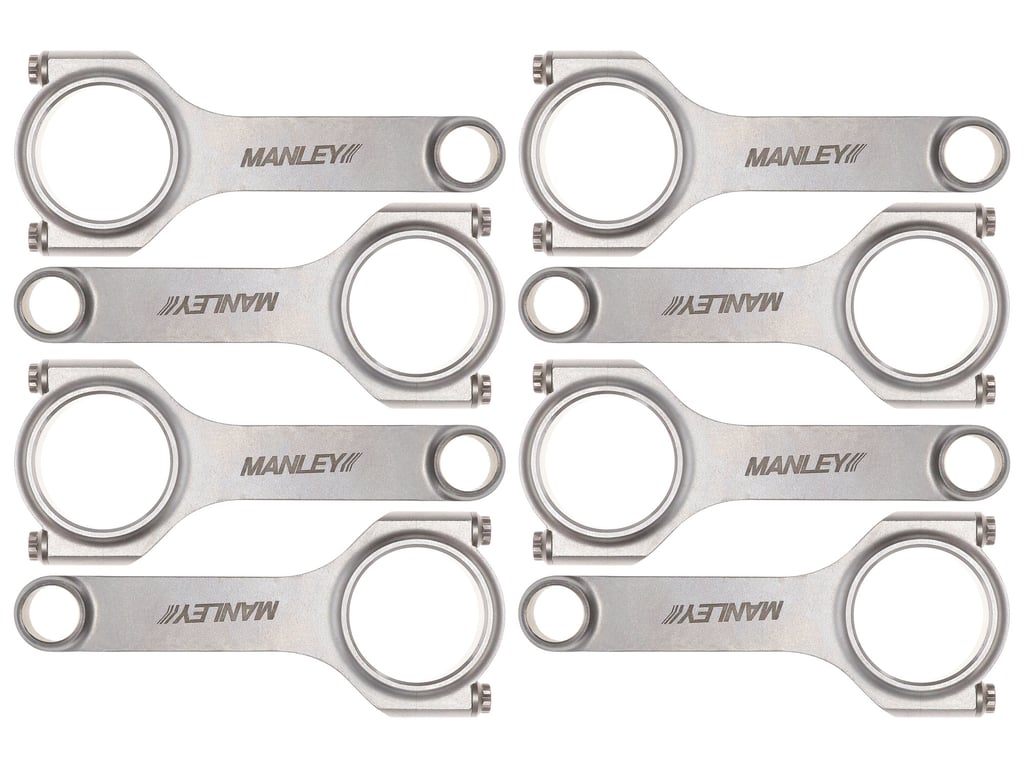

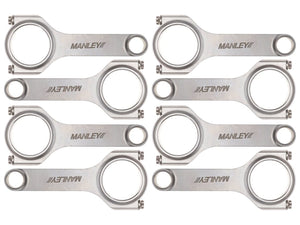

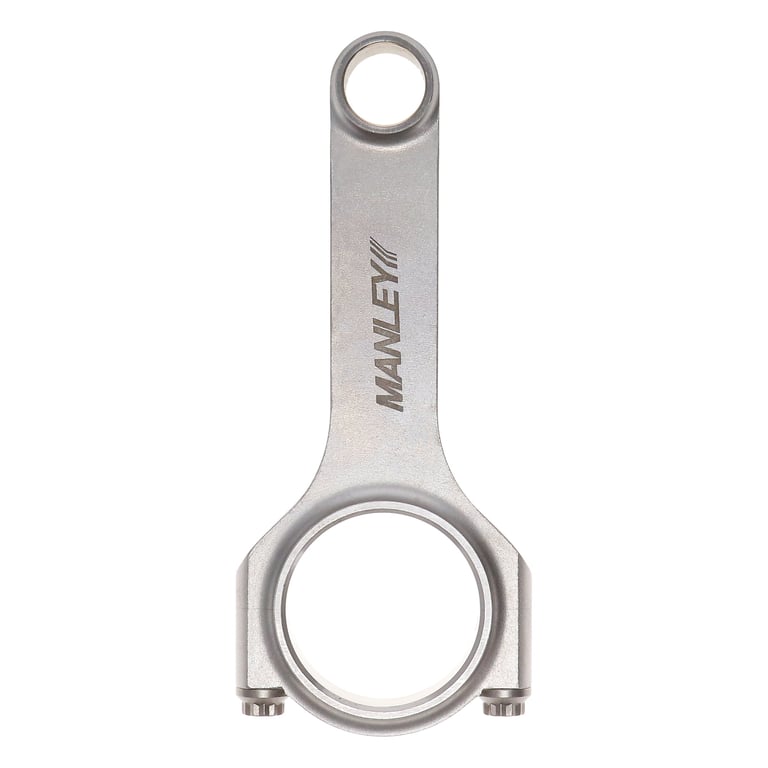

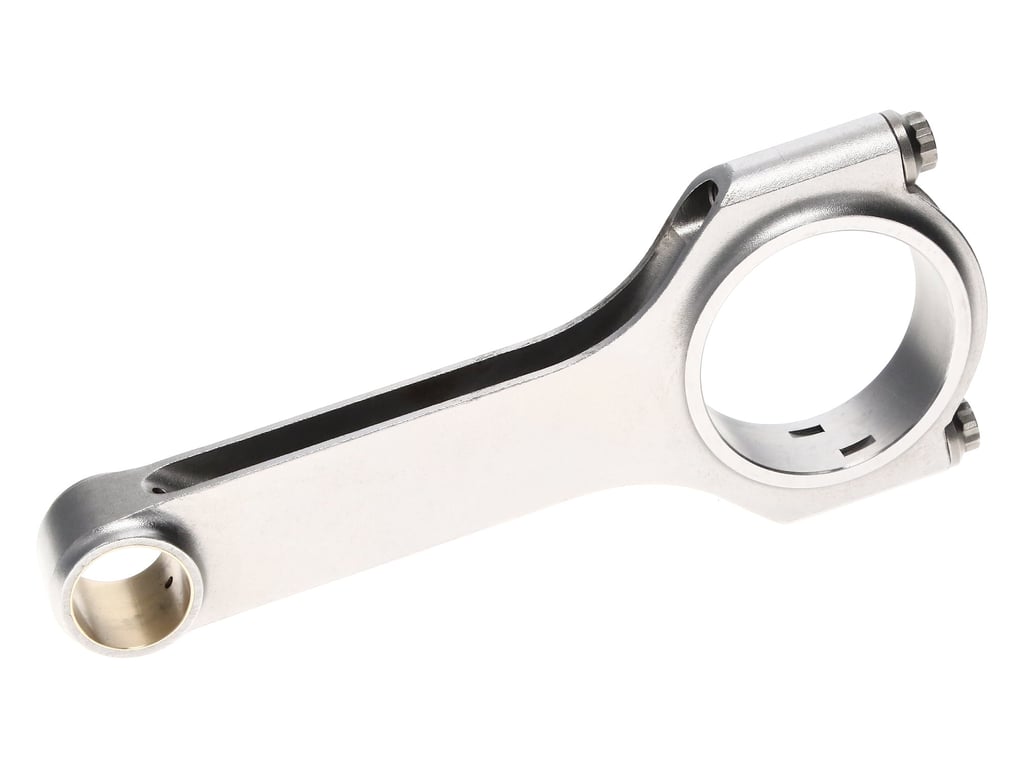

Manley Chevrolet Big Block H-Beam Connecting Rod Set - 6.800in Length - 14073-8

When it comes to H-Beam connecting rods, not all are created equal. Manley's H-Beam Series stands out as a superior choice, offering exceptional quality at an economical price point. These connecting rods are meticulously crafted to meet the same high-quality standards as our renowned Sportsmaster? and Pro Series rods.

Features

• Exacting Tolerances: Our H-Beam rods are finished to exacting tolerances to ensure precision and performance.
• Attention to Detail: Every aspect, from final hone size to thread detail, bend, and twist, is treated with utmost seriousness to deliver connecting rods of the highest quality.
• Exceptional Performance: Manley's H-Beam rods are designed to outperform others on the market, giving you a competitive advantage on the track.
• Flexible Bolt Options: Tailor your connecting rods to your specific requirements with a choice of ARP 8740 or ARP 2000 bolts.

Specs

• Center To Center Length: 6.800 in
• Big End Bore: 2.325 in
• Pin Bore: 0.9911 in

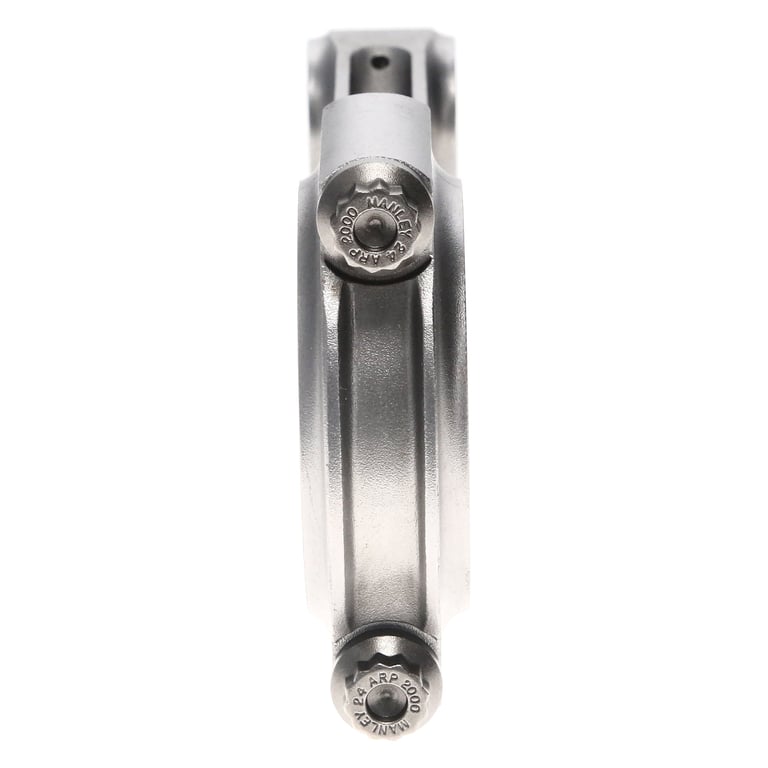

• 7/16" ARP 8740 Bolts
• Approx. HP Rating: 900
• Manley Connecting Rod, ROD-BBC 6.800 H BEAM
• Pin End Width: 1.125
• Connecting Rod Material: 4340
• Industry: Automotive
• Out of Stock Message: Call for Availability
• Prop 65 Yes/No: Yes
• Prop 65 (C, R or CR): CR
• Prop 65 - Short Label: Prop 65 Warning Label.JPG
• Engine Type: ICE
• Make: Chevrolet
• Engine: Big Block
• Product Market: Domestic
• Average Gram Weight: 825
• Big End Bore: 2.325
• Center To Center Length: 6.800
• Journal Size: 2.200
• Connecting Rod Journal Diameter: 2.200
• Length: .665 longer
• Pin End Bore: 0.9911
• Wrist Pin Diameter: 0.990
