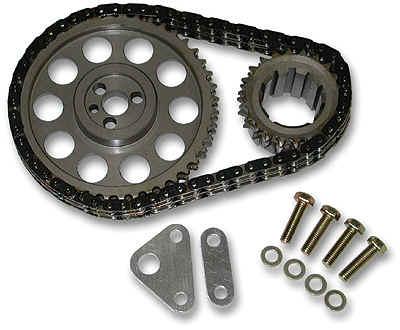

Manley 97-04 SB Chevy LS-1/LS-6 Captive Torrington & 9 Keyway Crankshaft Sprocket & Double Roller C - 73333

Billet Steel Sprockets - Double Roller Chain - Torrington Bearing - .005 in. Shorter

Features

• Fully machined billet steel camshaft and crankshaft sprockets
• Roller chain designed with .250" diameter rollers
• Nine keyway steel crankshaft sprocket enabling different settings: 0 , +/- 2 , +/- 4 , +/- 6 , +/- 8
• Camshaft sprockets are machined for and include a captive Torrington thrust bearing
• No grinding/modifying of timing cover required
• NOT recommended for valve spring pressures exceeding 450 lbs.

Specs

• Billet Steel Sprockets
• Double Roller Chain
• Torrington Bearing
• .005 in. Shorter
• Manley Timin Chain Kit, KIT-SBC LS1 BILLET W/TORR -.005
• Product Market: Domestic
• Add-On: 76233
• Product Type: Engine Timing Chain Kit
• Thrust Bearing: Torrington Bearing
• Center Distance: 0.005 in. Shorter
• Industry: Automotive
• Out of Stock Message: Call for Availability
• Timing Chain Style: Roller (.250 in. diameter)
• Cam Sprocket Material: Billet Steel
• Crank Sprocket Material: Billet Steel
• Title: Manley Timin Chain Kit, KIT-SBC LS1 BILLET W/TORR -.005
• Prop 65 Yes/No: Yes
• Prop 65 (C, R or CR): CR
• Prop 65 - Short Label: Prop 65 Warning Label.JPG
• Engine Type: ICE
• Make: Chevrolet
• Engine: LS
