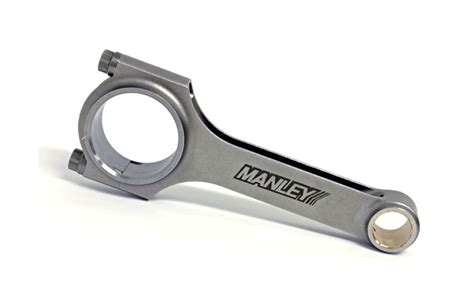

When it comes to H-Beam connecting rods, not all are created equal. Manley's H-Beam Series stands out as a superior choice, offering exceptional quality at an economical price point. These connecting rods are meticulously crafted to meet the same high-quality standards as our renowned Sportsmaster? and Pro Series rods.
Features
- Exacting Tolerances: Our H-Beam rods are finished to exacting tolerances to ensure precision and performance.
- Attention to Detail: Every aspect, from final hone size to thread detail, bend, and twist, is treated with utmost seriousness to deliver connecting rods of the highest quality.
- Manufactured from 4340 forgings and weight matched sets +/- 1.5 grams
- Flexible Bolt Options: Tailor your connecting rods to your specific requirements with a choice of ARP 8740 or ARP 2000 bolts.
- Heat treated, stress relieved, shot peened and 100% individually magnafluxed
Specs
- Center To Center Length: 5.394 in
- Big End Bore: 1.890 in
- Pin Bore: 0.8281 in. (22mm Pin)
- 3/8" ARP 2000 Bolts
- Approx. HP Rating: 600+
- Integra LS 1.8 non V-Tec DOHC
- (B18A, B18B, B20B, B20Z 1990-up)
- 42181 REPLACEMEMT PIN BUSHING
- Product Market: Sport Compact
- Average Gram Weight: 515
- Big End Bore: 1.890
- Center To Center Length: 5.394
- Journal Size: Stock
- Connecting Rod Journal Diameter: Stock
- Length: Stock
- Pin End Bore: 0.8281
- Wrist Pin Diameter: 0.827
- Connecting Rod Series: H-Beam
- Product Type: Engine Connecting Rod
- Rod Quantity: 1
- Rod Bolt Material: ARP 2000
- Connecting Rod Type: H-Beam
- Connecting Rod Material: 4340
- Industry: Automotive
- Out of Stock Message: Call for Availability
