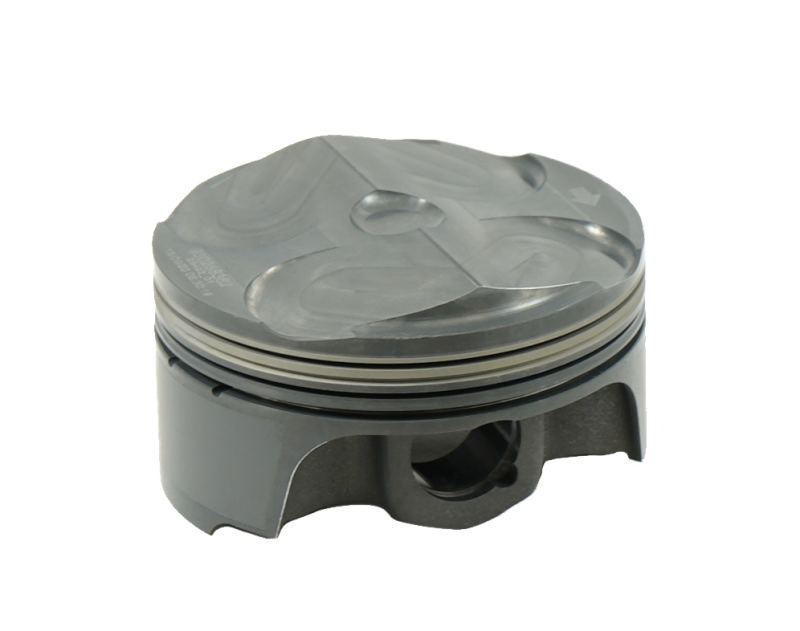

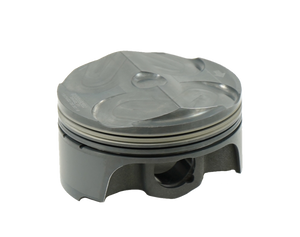

Mahle MS Single Piston Gen 3 Coyote 5.0L 3.662in Bore 3.65in Stroke 5.933in Rod .866 Pin 8.4cc 12 CR - 930258362-1

SKU: SKU: MHL930258362-1

Piston (ea) - FORD 5.0L MODULAR COYOTE Gen 3 — 308cid 3.662 x 1.167CH, 3.650stroke,5.933rod,0.866pin,8.4cc,373g,12.0CR, 2618, SINGLE PISTON

Application

Ford Coyote 308 cu in.

Features & Specs

  • Replacement piston for kit 930258362, bare piston only, components must be ordered separately
  • OCR Material: Nitrided stainless steel
  • LCR Thickness: 1.2mm
  • LCR Material: 9254 Steel
  • LCR Coating: Chrome
  • File Fit: N
  • Crown Volume: 8.4cc
  • UCR Thickness: 1.2mm
  • Clip Style: Round Wire
  • Pin Wall Thickness: 0.177
  • UCR Material: 9254 Steel
  • UCR Coating: HV385
  • Rings Included: N
  • Piston Style: Dome, w/ 4 valve reliefs
  • Piston Ring Thickness: 1.2mm, 1.2mm, 2.0mm
  • Piston Material: Forged, 2618
  • Piston Mass: 373g
  • Pins Included: N
  • Pin Style: Floating
  • Clips Included: N
  • Pin Material: Steel
  • Pin Mass: 112g
  • Pin Length: 58.1mm
  • Pin Diameter: 22.0mm
  • Package Quantity: Sold as a set of 1
  • OCR Thickness: 2.0mm
  • OCR Tension: Standard

Country of Origin: US  |  Package: Sold as a set of 1
