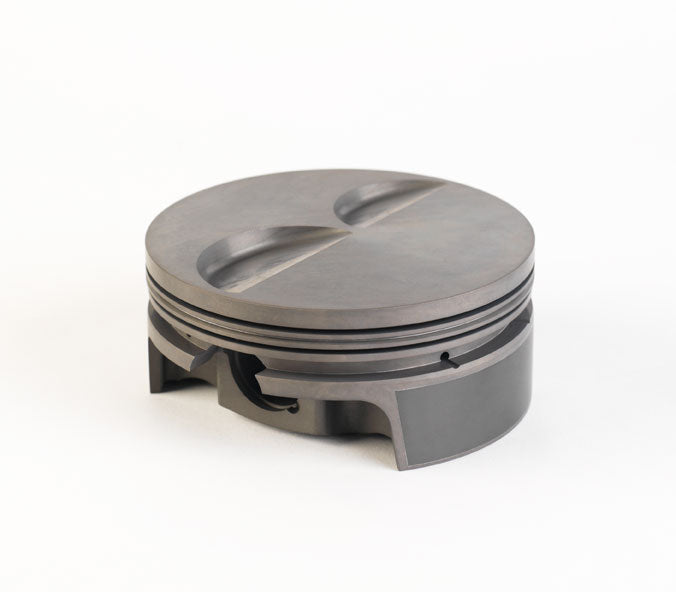

Mahle MS Piston Sets 495c.i. 4.185bore 4.5stroke 7.1rod 1.26c/h 0.990pin -22ccvol 504g 10.1c/r 4032 - 930274585

Piston (set) - BIG BLOCK OLDSMOBILE 455 Stroker DISH — 495cid 4.185 x 1.260CH, 4.500stroke,7.100rod,0.990pin,-22.0cc,503g,10.1CR, 4032

Application

Oldsmobile Big Block 495 cu in.

Features & Specs

• Coatings: Phosphate + Grafal
• File Fit: Y
• Piston Material: Forged, 4032
• Clips Included: Y
• Clip Style: Round Wire
• UCR Thickness: 1.0mm
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: Y
• Piston Style: Dish, w/ 2 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Mass: 503g
• LCR Coating: Phosphate
• Pins Included: Y
• Pin Wall Thickness: 0.18
• Pin Style: Floating
• Pin Material: Steel
• Pin Mass: 148g
• Pin Length: 64.0mm
• Pin Diameter: 25.146mm
• Package Quantity: Sold as a set of 8
• OCR Thickness: 2.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• Crown Volume: -22.0cc

Country of Origin: US  |  Package: Sold as a set of 8
