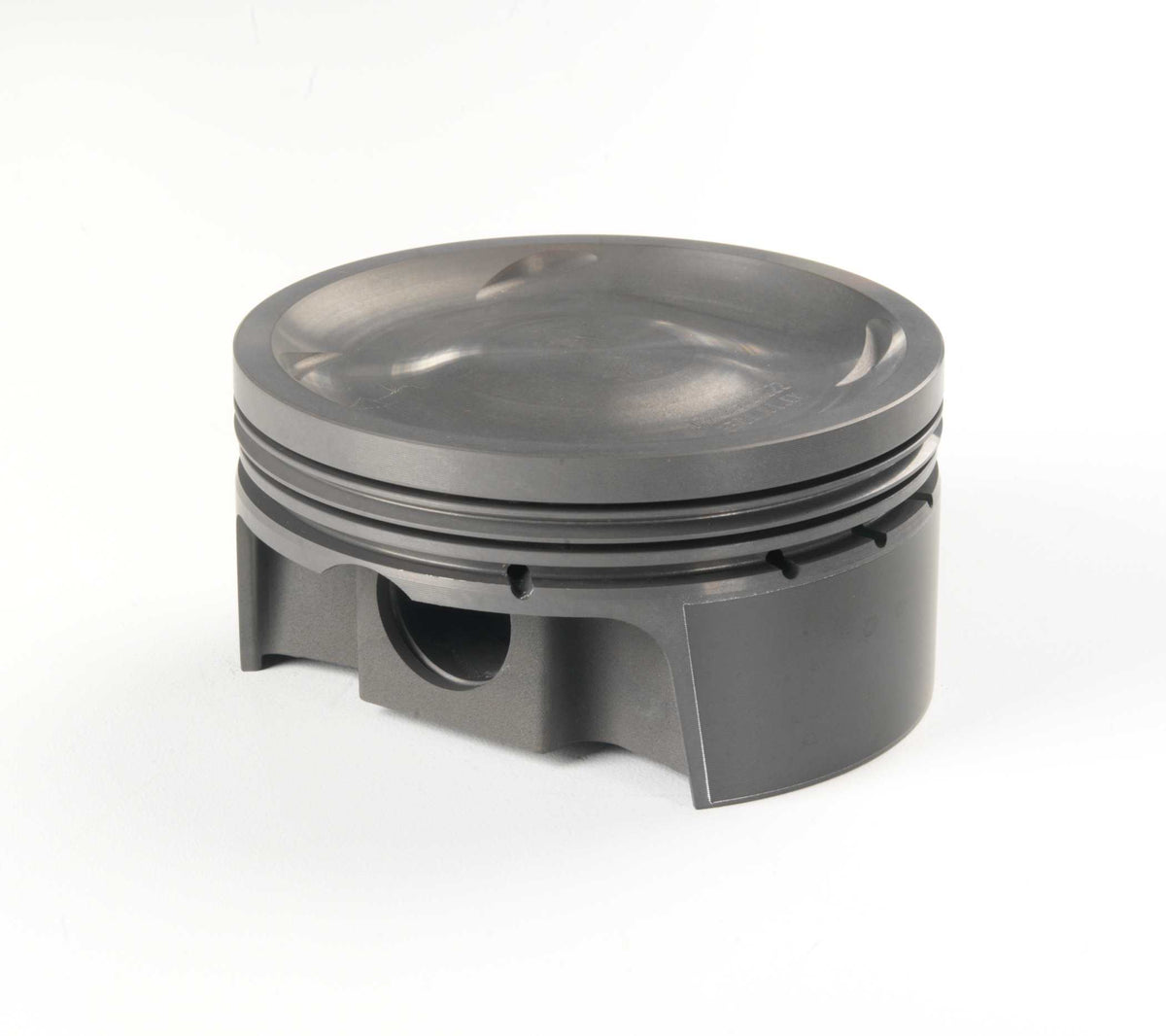

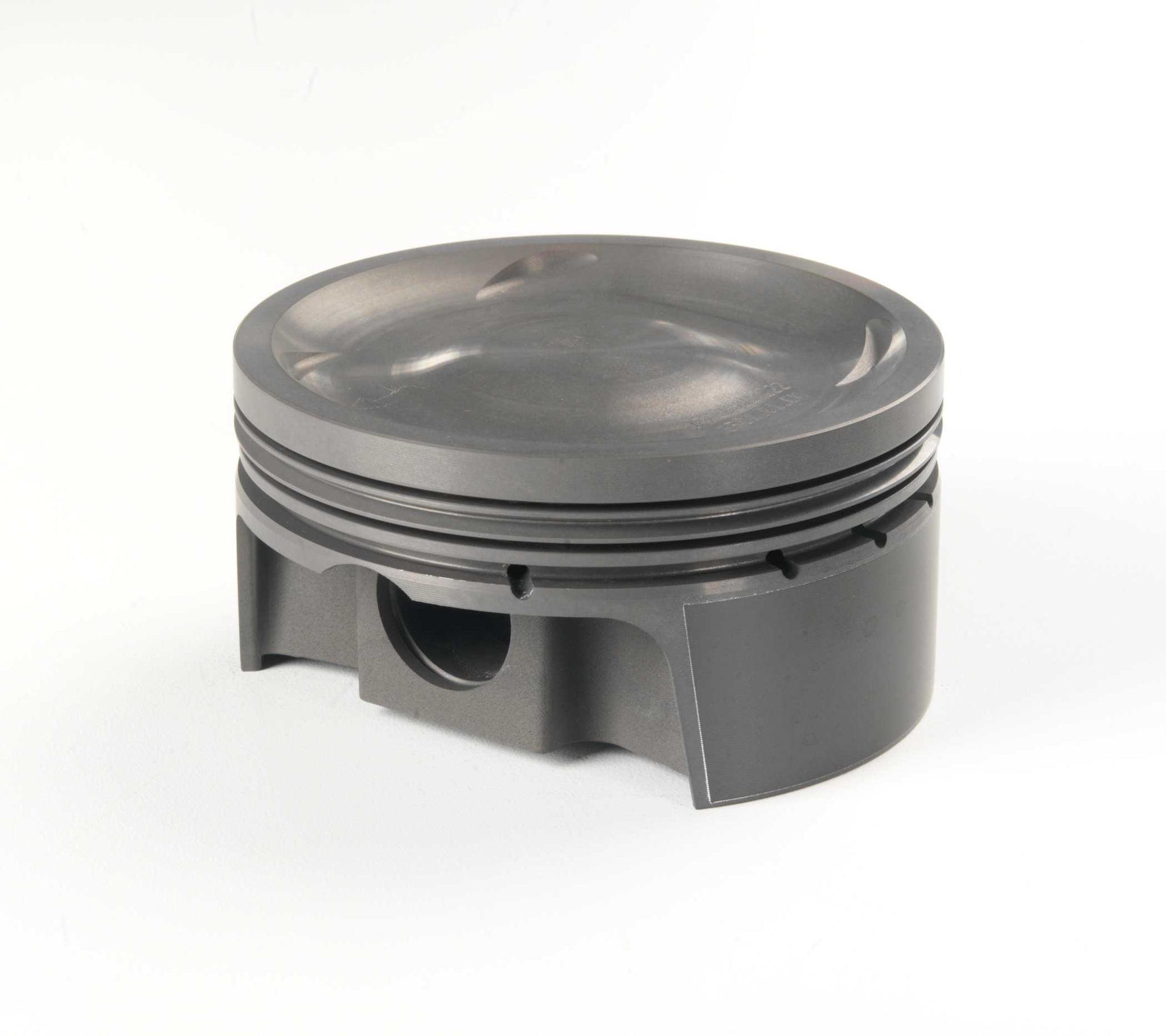

Mahle MS Piston Set Subaru 2.5L 99.50mm Bore 79mm Stroke 130.5mm Rod 23mm Pin -22cc 8.5 CR Set of 4 - 930285117

Piston (set) - SUBARU WRX 2.5L STI, FORESTER, LEGACY — 99.50mm x 30.7mm CH, 79.0mm stroke,130.5mm rod,23mm pin,-19.3cc,409g,8.5CR, 2618

Application

Subaru WRX 2.5L

Features & Specs

• Coatings: Phosphate + Grafal + Hard Anodized top ring groove
• Clip Style: Round Wire
• Pin Wall Thickness: 0.187
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: Y
• Piston Style: Dish, w/ 4 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 2618
• Piston Mass: 409g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 124g
• Pin Length: 57.404mm
• Pin Diameter: 23.0mm
• Package Quantity: Sold as a set of 4
• OCR Thickness: 2.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: -19.3cc
• UCR Thickness: 1.0mm

Country of Origin: US  |  Package: Sold as a set of 4
