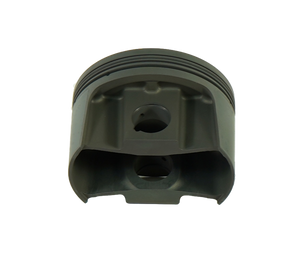

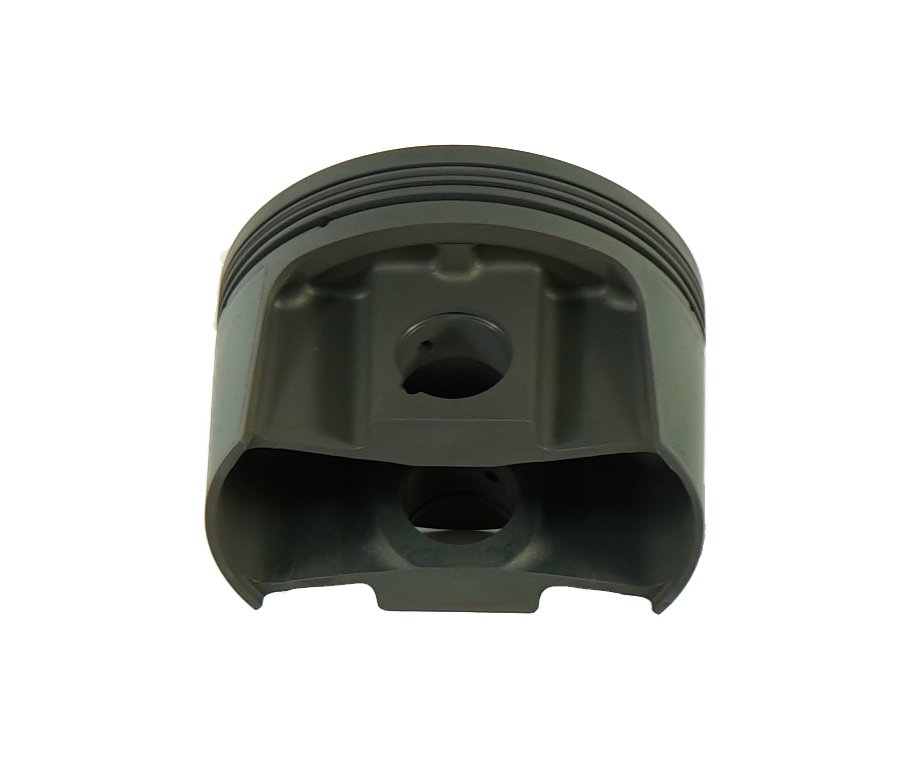

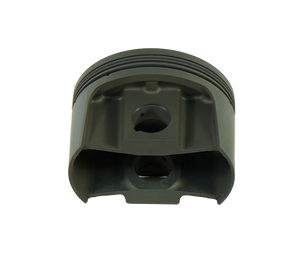

Mahle MS Piston Set SBC 358ci 4.030in Bore 3.480/3.500stk 5.7in Rod .927 Pin -5cc 10.4 CR Single - 930200030-1

Piston (ea) - SMALL BLOCK CHEVY FLAT TOP — 355cid 4.030 x 1.550CH, 3.480/3.500stroke,5.700rod,0.927pin,-5.0cc,474g,10.4CR, 4032, SINGLE PISTON

Application

Chevrolet Small Block 355 cu in.

Features & Specs

• Replacement piston for kit 930200030, bare piston only, components must be ordered separately
• OCR Tension: Standard
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 4032
• Piston Mass: 474g
• Pins Included: N
• Pin Wall Thickness: 0.168
• Pin Style: Floating
• Pin Material: Steel
• Pin Mass: 118g
• Pin Length: 58.1mm
• Pin Diameter: 23.55mm
• Package Quantity: Sold as a set of 1
• OCR Thickness: 2.0mm
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: -5.0cc
• Clips Included: N
• Clip Style: Round Wire
• UCR Thickness: 1.0mm
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: N
• Piston Style: Flattop, w/ 2 valve reliefs

Country of Origin: US  |  Package: Sold as a set of 1
