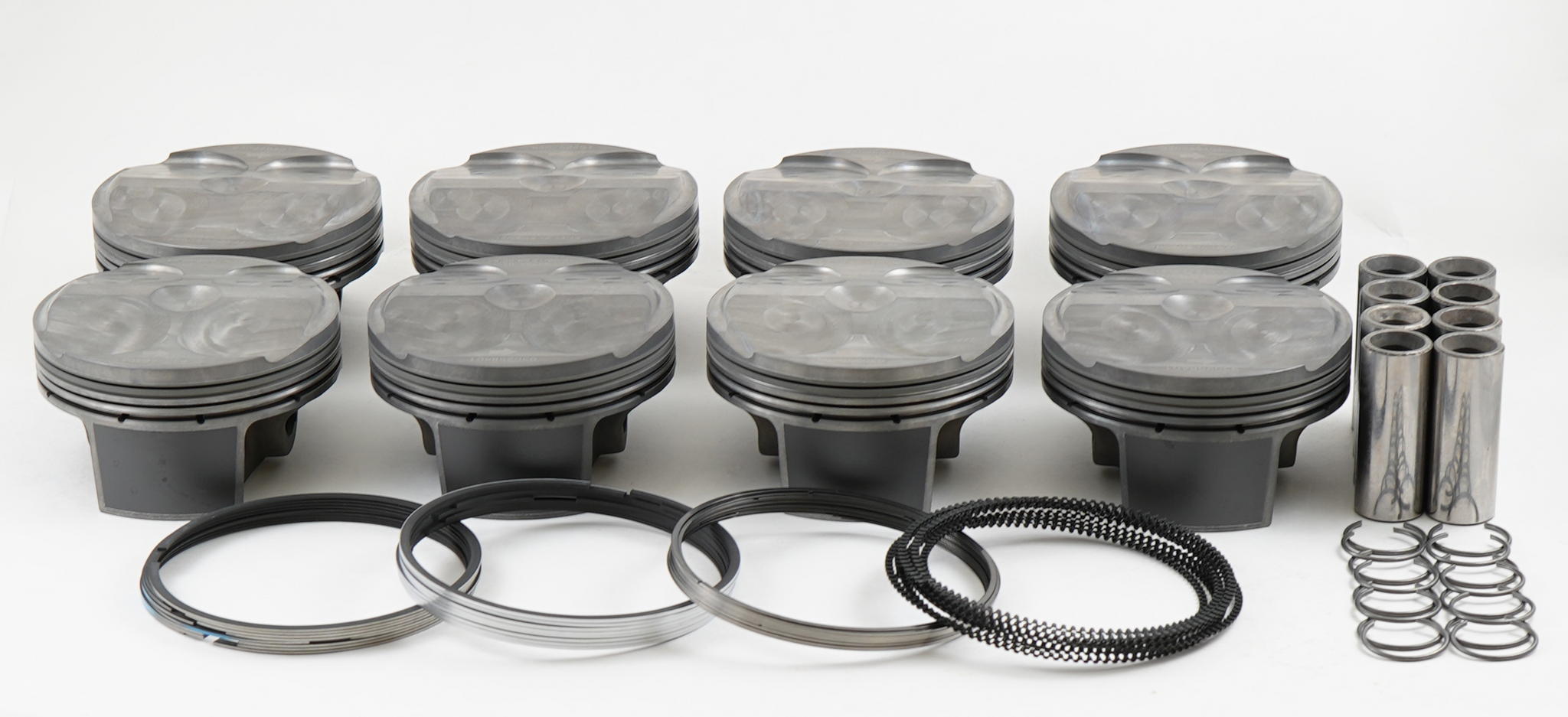

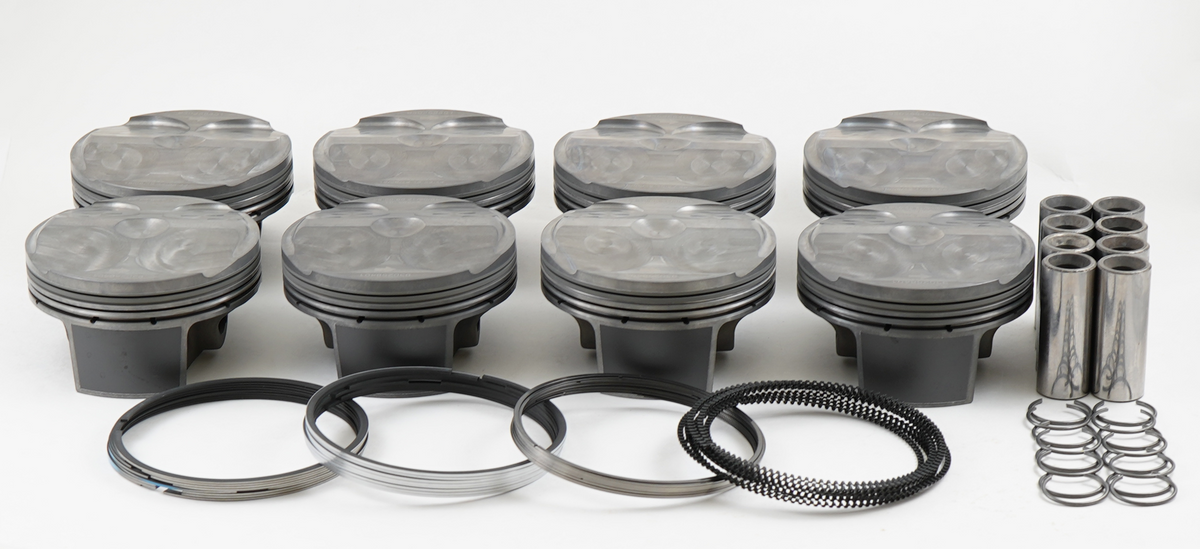

Mahle MS Piston Set of 8 Ford 5.2L Voodoo 315cid 3.710in Bore 3.661 Stk 5.9 Rod .827 Pin 7.8cc 12CR - 930258401

Piston (set) - FORD 5.2L VOODOO DROP-IN FORGED REPLACMENT ASSEMBLY — 315cid 3.701 x 1.161CH, 3.661stroke,5.933rod,0.827pin,7.8cc,380g,12.0CR, M142P

Application

Ford Voodoo 315 cu in.

Features & Specs

• NO BALANCING, NO COMP RATIO CHANGE
• Package Quantity: Sold as a set of 8
• OCR Thickness: 2.0mm
• OCR Tension: Standard
• OCR Material: Nitrided stainless steel
• LCR Thickness: 1.2mm
• LCR Material: 9254 Steel
• LCR Coating: Chrome
• File Fit: N
• Crown Volume: 7.8cc
• UCR Thickness: 1.0mm
• Clip Style: Round Wire
• Pin Wall Thickness: 0.187
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: Y
• Piston Style: Dome, w/ 4 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.2mm, 2.0mm
• Piston Material: Forged, M142P
• Piston Mass: 380g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 100g
• Pin Length: 54.3mm
• Pin Diameter: 21.0mm

Country of Origin: US  |  Package: Sold as a set of 8
