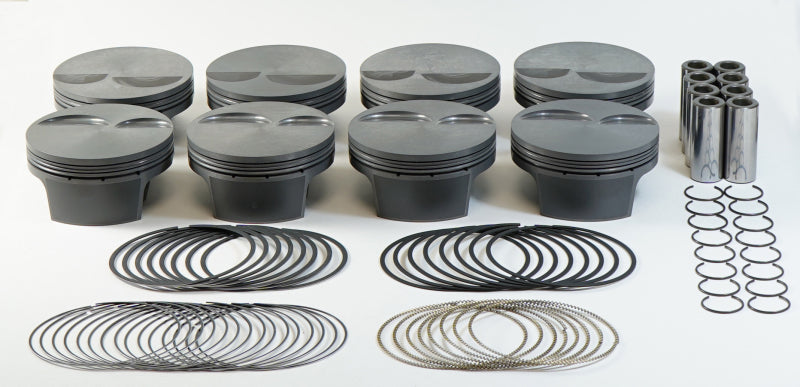

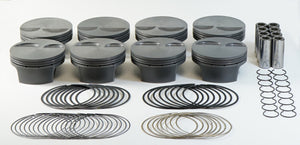

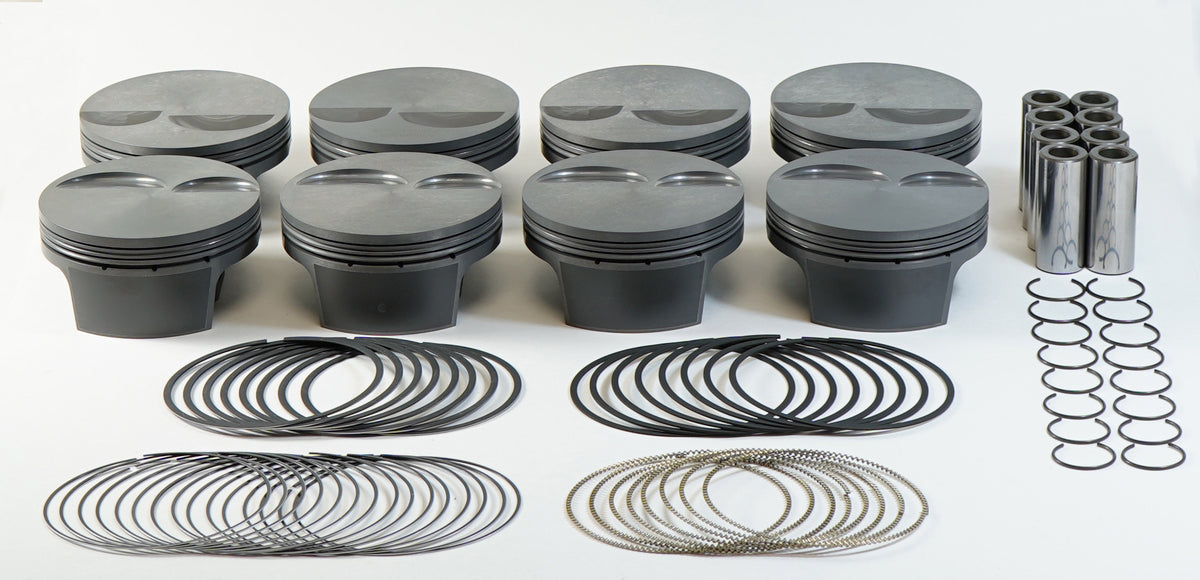

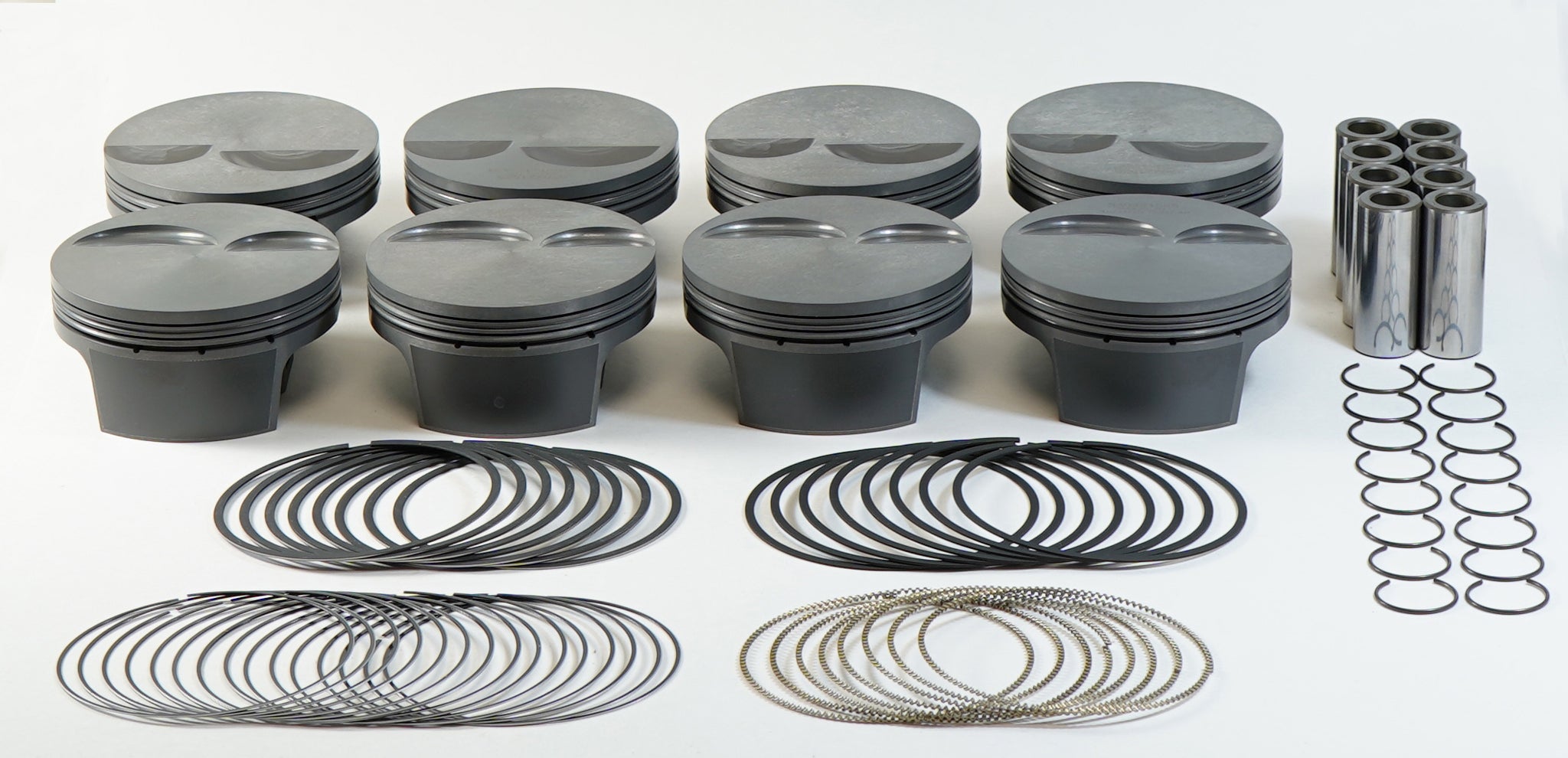

Mahle MS Piston Set LS7 430cid 4.135in Bore 4.000in Stroke 6.067in Rod .927in Pin -2.5cc 11.8 CR - 930221535

Piston (set) - LS 7.0L FLAT TOP & DISH - compatible with LS7 style heads — 430cid 4.135 x 1.181CH, 4.000stroke,6.067rod,0.927pin,-2.5cc,452g,11.8CR, 4032

Application

Chevrolet LS7 430 cu in.

Features & Specs

• Coatings: Phosphate + Grafal
• UCR Coating: HV385
• Rings Included: Y

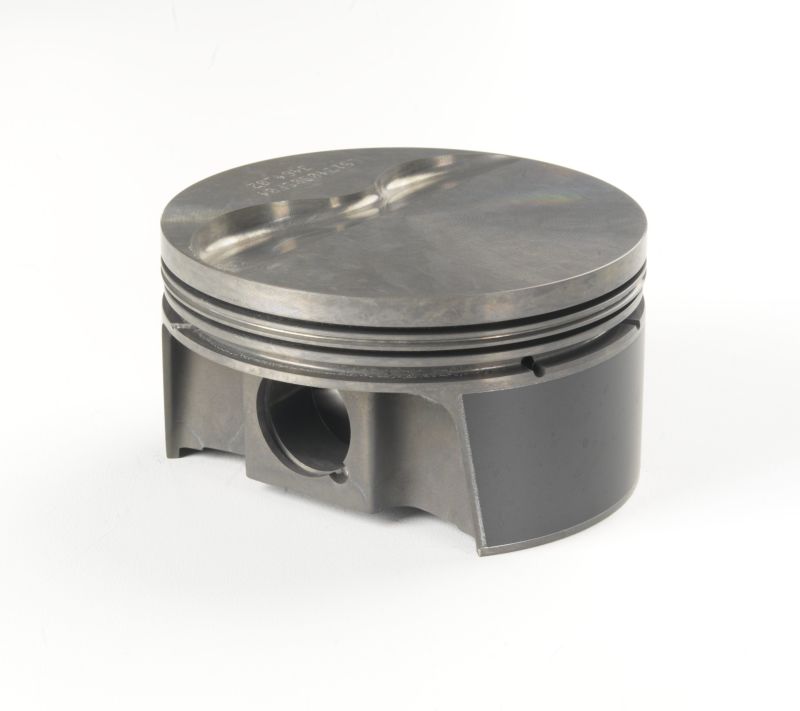

• Piston Style: Flattop, w/ 2 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 4032
• Piston Mass: 452g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 118g
• Pin Length: 58.1mm
• Pin Diameter: 23.55mm
• Package Quantity: Sold as a set of 8
• OCR Thickness: 2.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: -2.5cc
• UCR Thickness: 1.0mm
• Clip Style: Round Wire
• Pin Wall Thickness: 0.168
• UCR Material: 9254 Steel

Country of Origin: US  |  Package: Sold as a set of 8
