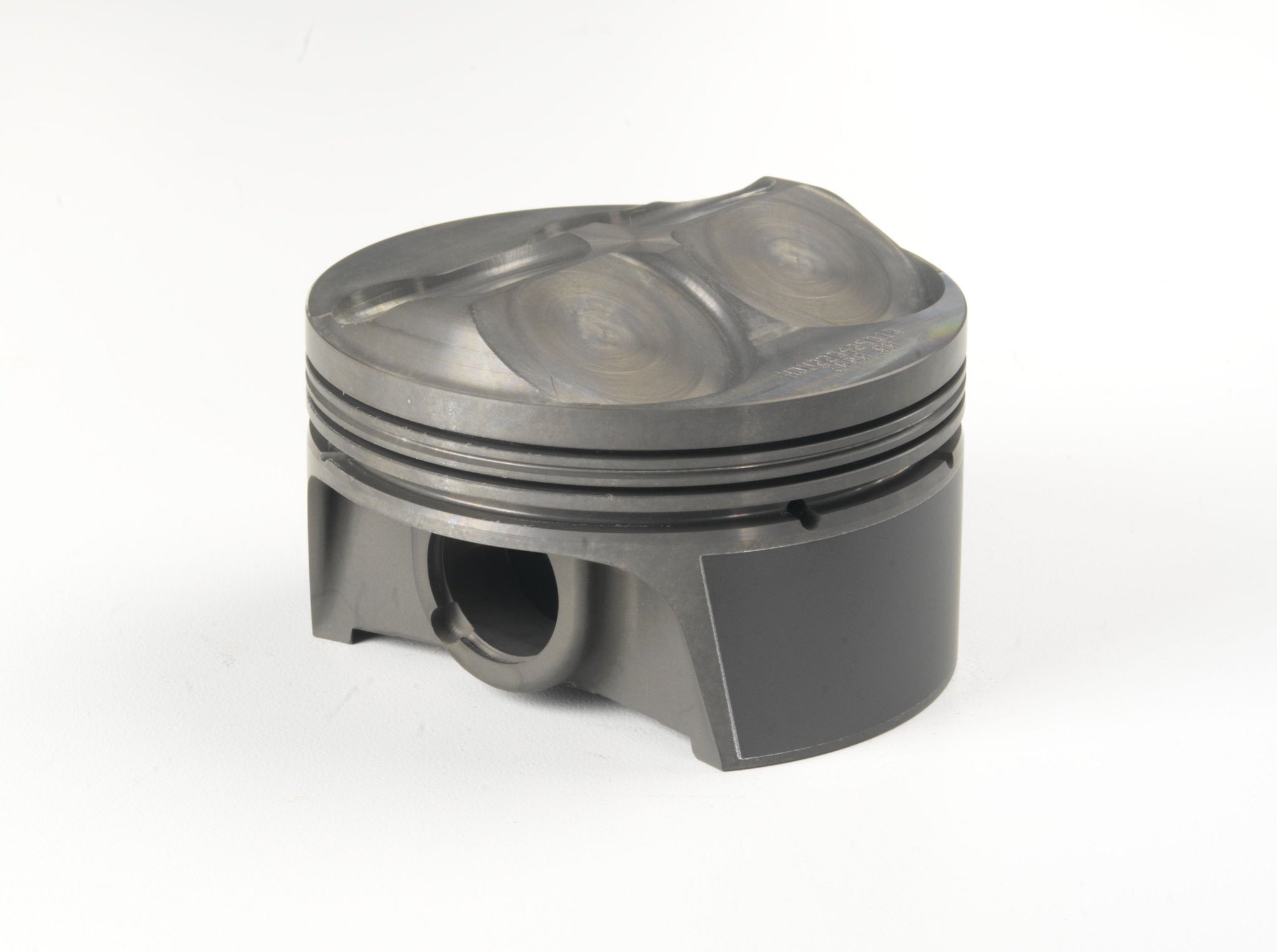

Mahle MS Piston Set Hon F20C 87.25mm Bore 84mm Stroke 153mm Rod 23mm Pin 9cc 12.5 CR Set of 4 - 929986135

Piston (set) - HONDA S2000 F20C 2.0L GOLD SERIES — 87.25mm x 30mm CH, 84.0mm stroke,153mm rod,23mm pin,9.0cc,334g,12.5CR, 4032

Application

Honda F20C/F22C 2.0L

Features & Specs

• FOR USE IN FACTORY FRM (FIBER REINFORCED MATRIX) CYLINDERS ONLY
• Clip Style: Round Wire
• Pin Wall Thickness: 0.197
• UCR Material: Stainless Steel
• UCR Coating: Gas Nitrided
• Rings Included: Y
• Piston Style: Dome, w/ 4 valve reliefs
• Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
• Piston Material: Forged, 4032
• Piston Mass: 334g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 109g
• Pin Length: 50.0mm
• Pin Diameter: 23.0mm
• Package Quantity: Sold as a set of 4
• OCR Thickness: 2.8mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.2mm
• LCR Material: Cast Iron
• LCR Coating: Phosphate
• File Fit: N
• Crown Volume: 9.0cc
• UCR Thickness: 1.2mm

Country of Origin: US  |  Package: Sold as a set of 4
