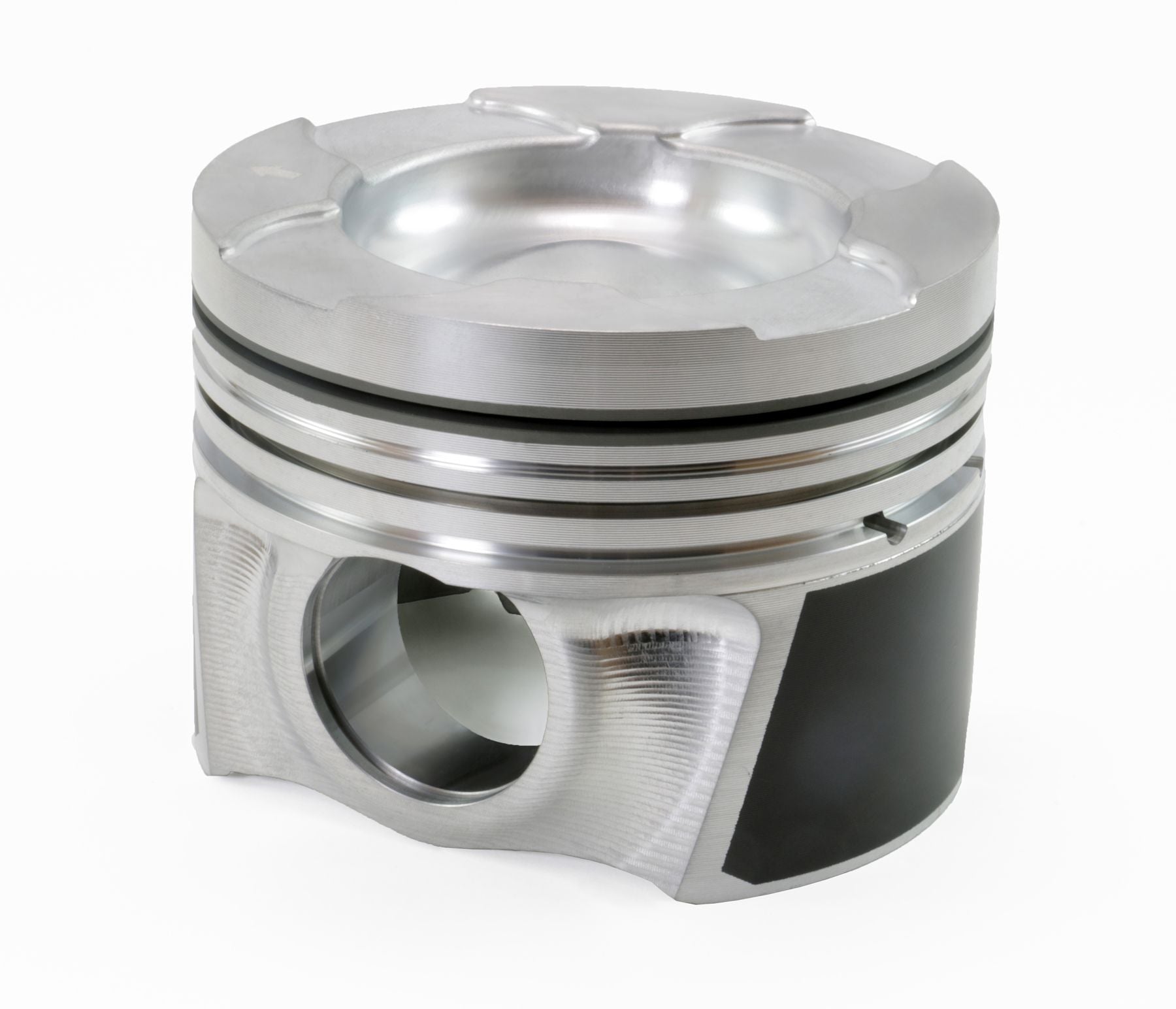

Mahle MS Piston Set Duramax 4.075in Bore 3.898in Stk 6.417in Rod 1.358 Pin -41.8cc 16.5 CR Set of 8 - 930036275

SKU: SKU: MHL930036275

Piston (set) - GM 6.6L Duramax Forged Aluminum Race Pistons — 407cid 4.075 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-41.8cc,785g,16.5CR, M124P

Application

GM 6.6L Duramax 407 cu in.

Features & Specs

  • w/ 0.075" Deep Valve Pockets
  • UCR Thickness: 1/16
  • Clip Style: Snap Ring
  • Pin Wall Thickness: 0.325
  • UCR Material: Stainless Steel
  • UCR Coating: CrN PVD
  • Rings Included: Y
  • Piston Style: Dish, w/ 4 valve reliefs
  • Piston Ring Thickness: 1/16, 2.0mm, 3.0mm
  • Piston Material: Forged, M124P
  • Piston Mass: 785g
  • Pins Included: Y
  • Pin Style: Floating
  • Clips Included: Y
  • Pin Material: Steel
  • Pin Mass: 410g
  • Pin Length: 77.5mm
  • Pin Diameter: 34.5mm
  • Package Quantity: Sold as a set of 8
  • OCR Thickness: 3.0mm
  • OCR Tension: Standard
  • OCR Material: Gas Nitrided stainless steel
  • LCR Thickness: 2.0mm
  • LCR Material: Cast Iron
  • LCR Coating: Chrome
  • File Fit: Y
  • Crown Volume: -41.8cc

Country of Origin: US  |  Package: Sold as a set of 8
