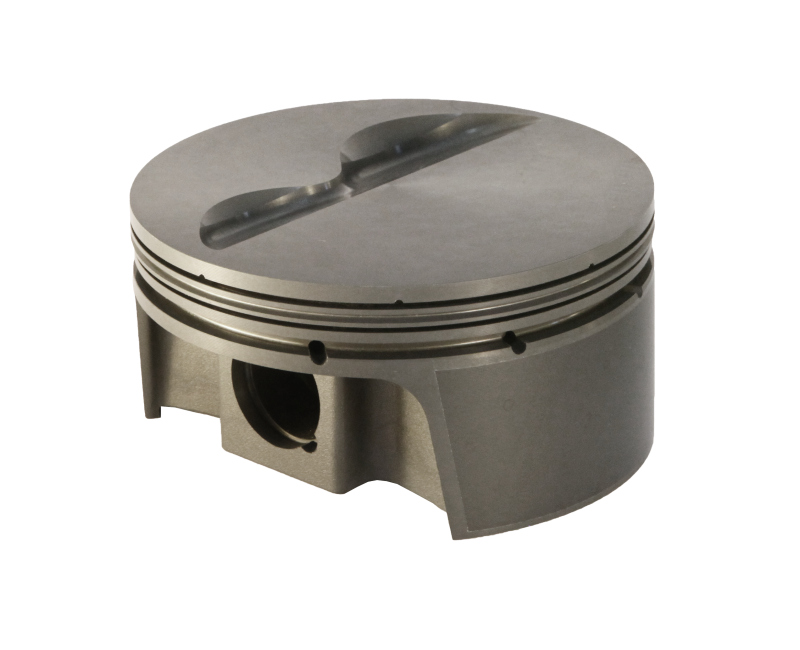

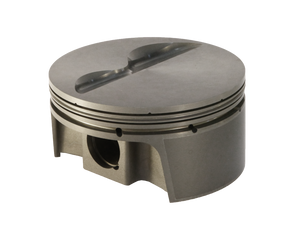

Mahle MS Piston Set Chevy 358ci 4.035in Bore 3.500in Stroke 6.0in Rod .927in Pin -4cc 10.5 CR - 930202635

Piston (set) - SMALL BLOCK CHEVY HIGH OUTPUT — 358cid 4.035 x 1.250CH, 3.500stroke,6.000rod,0.927pin,- 4.1cc,395g,10.6CR, 4032

Application

Chevrolet Small Block 358 cu in.

Features & Specs

• For 2bbl 22 Deg/23 Deg FLAT TOP Gasported / Asymmetrical Valve Pockets
• Piston Style: Flattop, w/ 2 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 4032
• Piston Mass: 395g
• Pin Wall Thickness: 0.129
• Crown Volume: - 4.1cc
• Pin Style: Floating
• Pin Material: Steel
• Pin Mass: 93g
• Pin Length: 58.1mm
• Pin Diameter: 23.55mm

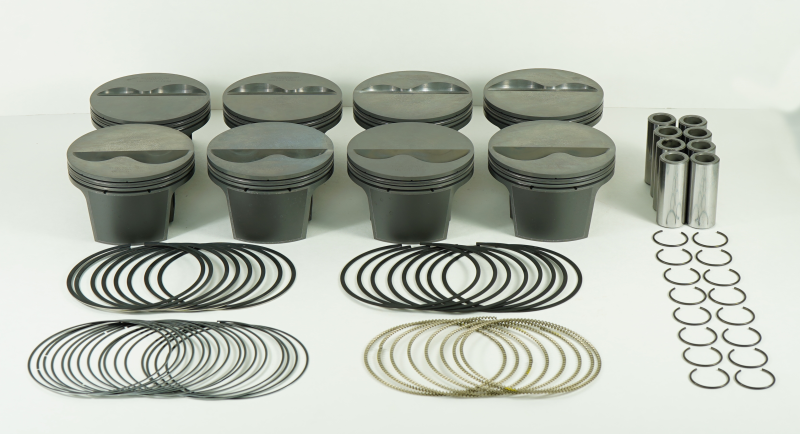

• Package Quantity: Sold as a set of 8
• OCR Thickness: 2.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Clip Style: Round Wire
• Clips Included: Y
• Pins Included: Y
• UCR Thickness: 1.0mm
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: Y

Country of Origin: US  |  Package: Sold as a set of 8
