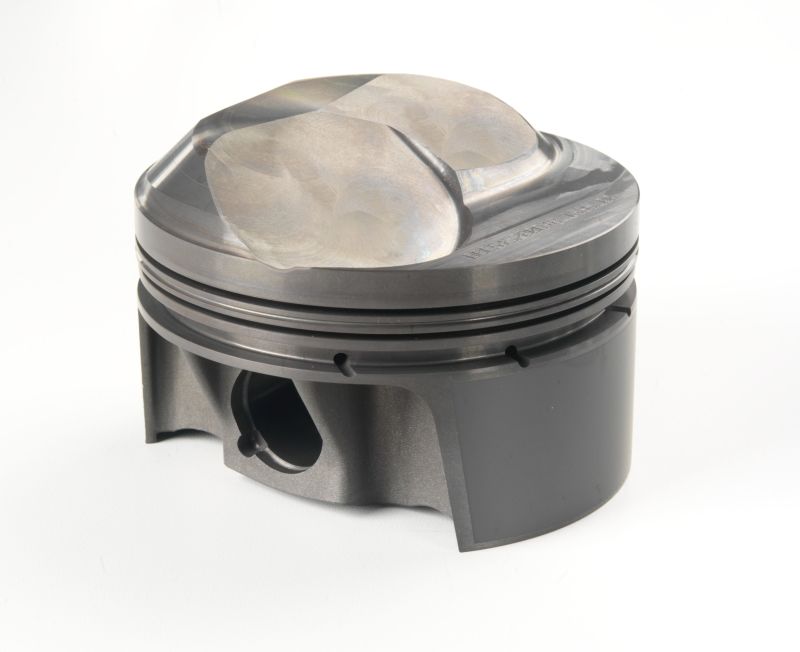

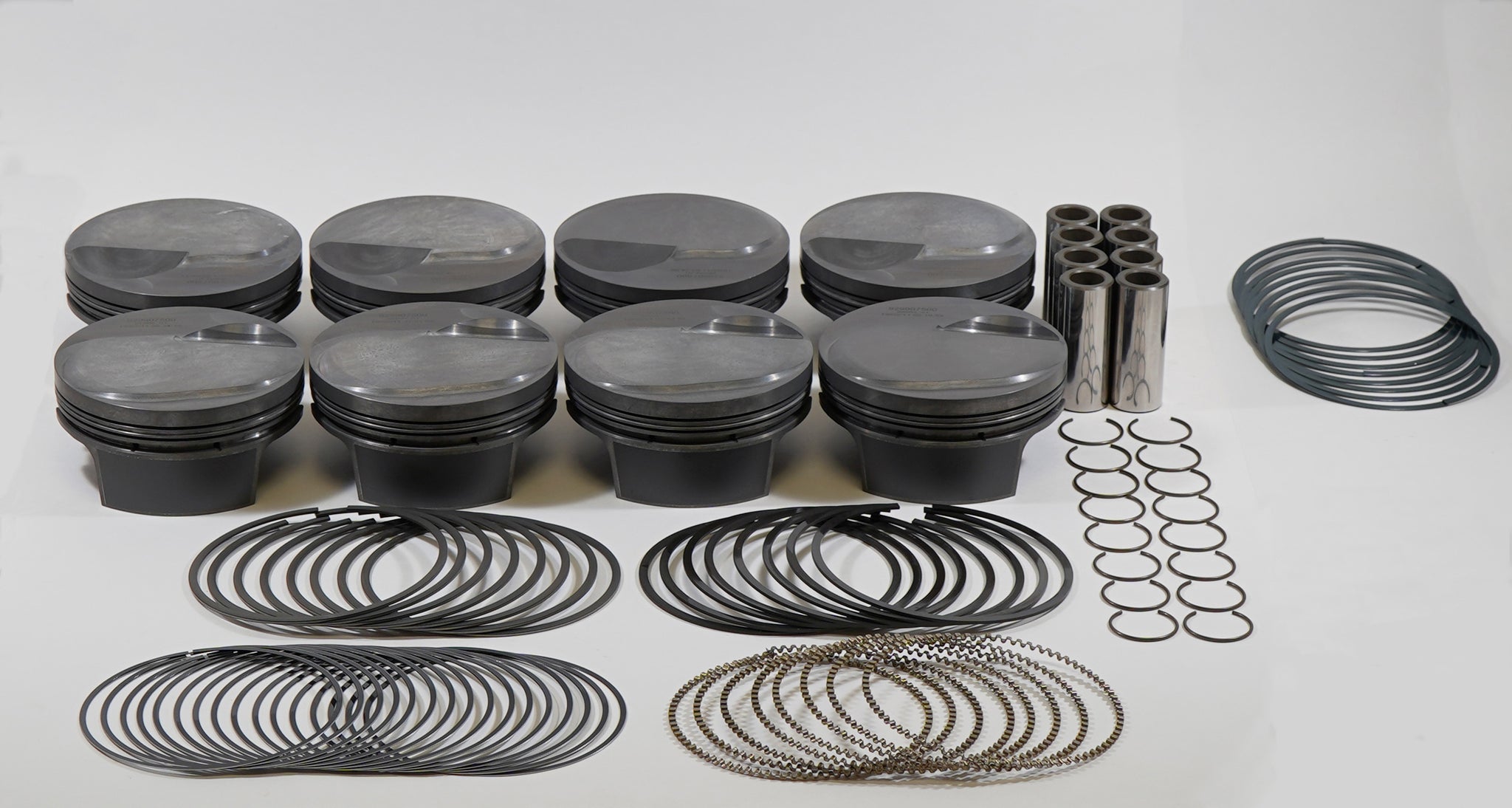

Mahle MS Piston Set BBC 565ci 4.600in Bore 4.25in Stroke 6.385in Rod .990 Pin 38cc 13.7 CR Set of 8 - 928980201

Piston (set) - BIG BLOCK CHEVY DOME (STD DECK 9.800) — 565cid 4.600 x 1.270RCH, 4.250stroke,6.385rod,0.990pin,38.0cc,623g,13.7CR, 2618

Application

Chevy Big Block 565 cu in.

Features & Specs

• Coatings: Phosphate + Grafal
• Clip Style: Round Wire
• Pin Wall Thickness: 0.18
• UCR Material: Ductile Iron
• UCR Coating: Plasma Moly
• Rings Included: Y
• Piston Style: Dome, w/ INT valve relief
• Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
• Piston Material: Forged, 2618
• Piston Mass: 623g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 148g
• Pin Length: 64.0mm
• Pin Diameter: 25.146mm
• Package Quantity: Sold as a set of 8
• OCR Thickness: 3.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.5mm
• LCR Material: Cast iron
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: 38.0cc
• UCR Thickness: 1.5mm

Country of Origin: US  |  Package: Sold as a set of 8
