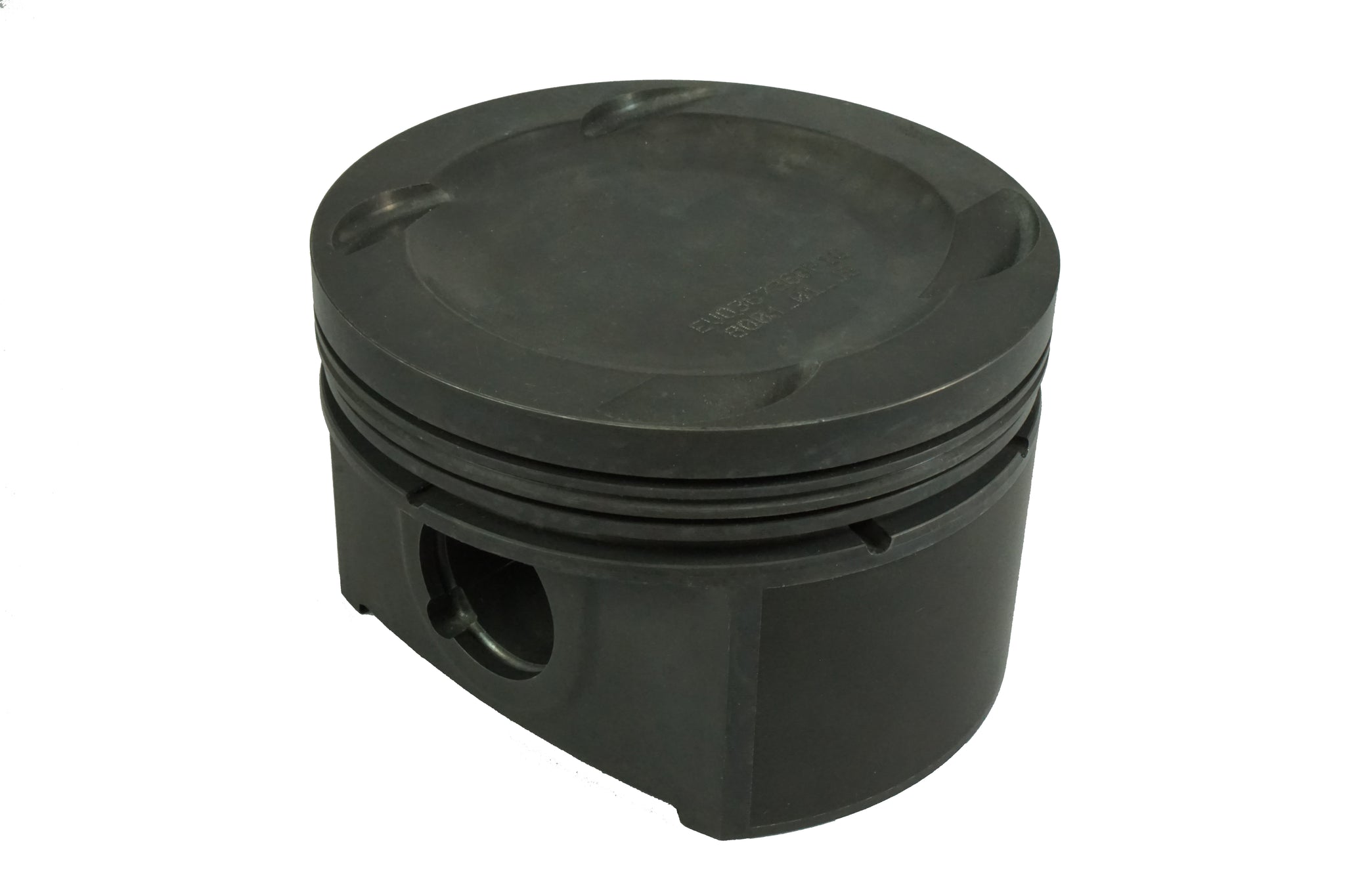

Mahle MS Piston Set 93-09 4G63 86.00mm Bore 88.0mm Stroke 150mm Rod 22mm Pin -10cc 9.0 CR Set of 4 - 929925885

Piston (set) - MITSUBISHI 4G63 2.0L 93-02 ECLIPSE 03-09 LANCER EVO — 86.00mm x 34.7mm CH, 88.0mm stroke,150mm rod,22mm pin,-10.0cc,321g,8.7CR, 2618

Application

Mitsubishi 4G63 2.0L

Features & Specs

• Coatings: Phosphate + Grafal + Hard Anodized top ring groove
• Package Quantity: Sold as a set of 4
• Piston Style: Dish, w/ 4 valve reliefs
• Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
• Piston Material: Forged, 2618
• Piston Mass: 321g
• Pins Included: Y
• Pin Wall Thickness: 0.177
• Pin Style: Floating
• Pin Material: Steel
• Pin Mass: 112g
• Pin Length: 58.1mm
• Pin Diameter: 22.0mm
• OCR Thickness: 2.8mm
• Rings Included: Y
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.2mm
• LCR Material: Cast Iron
• LCR Coating: Phosphate
• File Fit: N
• Crown Volume: -10.0cc
• Clips Included: Y
• Clip Style: Round Wire
• UCR Thickness: 1.2mm
• UCR Material: Stainless Steel
• UCR Coating: Gas Nitrided

Country of Origin: US  |  Package: Sold as a set of 4
