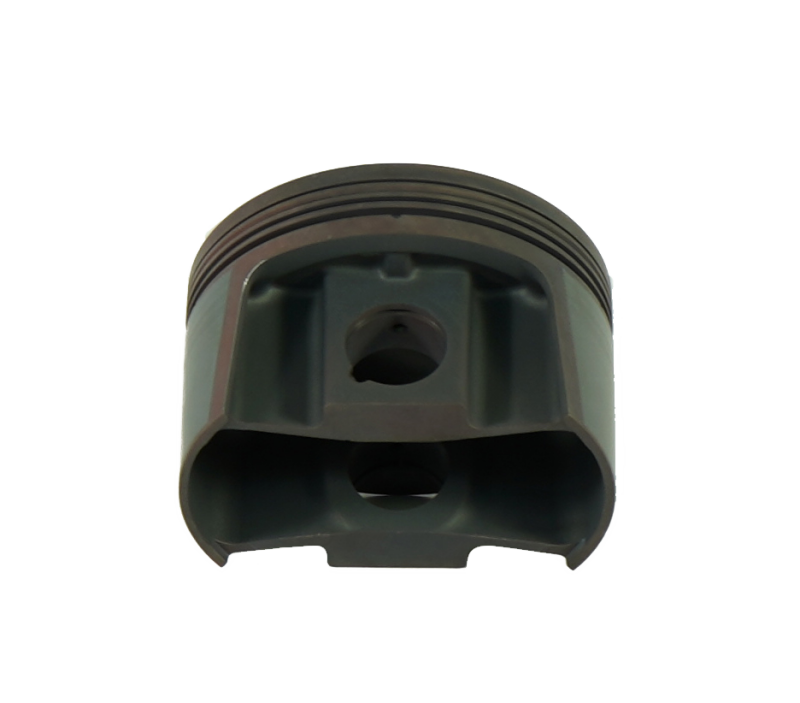

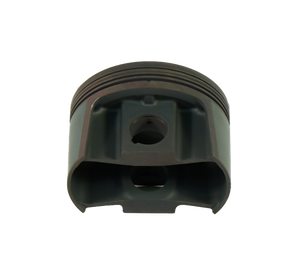

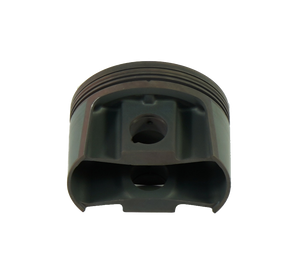

Mahle MS Piston SBC 377ci 4.155 Bore 3.480/3.500in Stroke 6.125in Rod .927 Pin -5cc 13.5 CR - Single - 930208255-1

Piston (ea) - SMALL BLOCK CHEVY 23 Deg DOME — 377cid 4.155 x 1.125CH, 3.480/3.500stroke,6.125rod,0.927pin,11.1cc,507g,13.5CR, 2618, SINGLE PISTON

Application

Chevrolet Small Block 377 cu in.

Features & Specs

• Replacement piston for kit 930208255, bare piston only, components must be ordered separately
• OCR Tension: Standard
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 2618
• Piston Mass: 507g
• Pins Included: N
• Pin Wall Thickness: 0.168
• Pin Style: Floating
• Pin Material: Steel
• Pin Mass: 118g
• Pin Length: 58.1mm
• Pin Diameter: 23.55mm
• Package Quantity: Sold as a set of 1
• OCR Thickness: 2.0mm
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: 11.1cc
• Clips Included: N
• Clip Style: Round Wire
• UCR Thickness: 1.0mm
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: N
• Piston Style: Dome, w/ 2 valve reliefs

Country of Origin: US  |  Package: Sold as a set of 1
