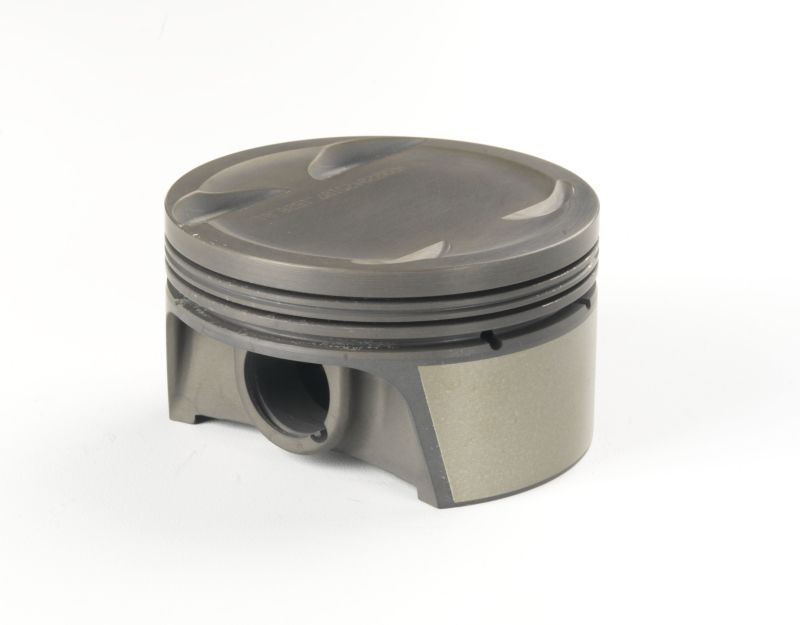

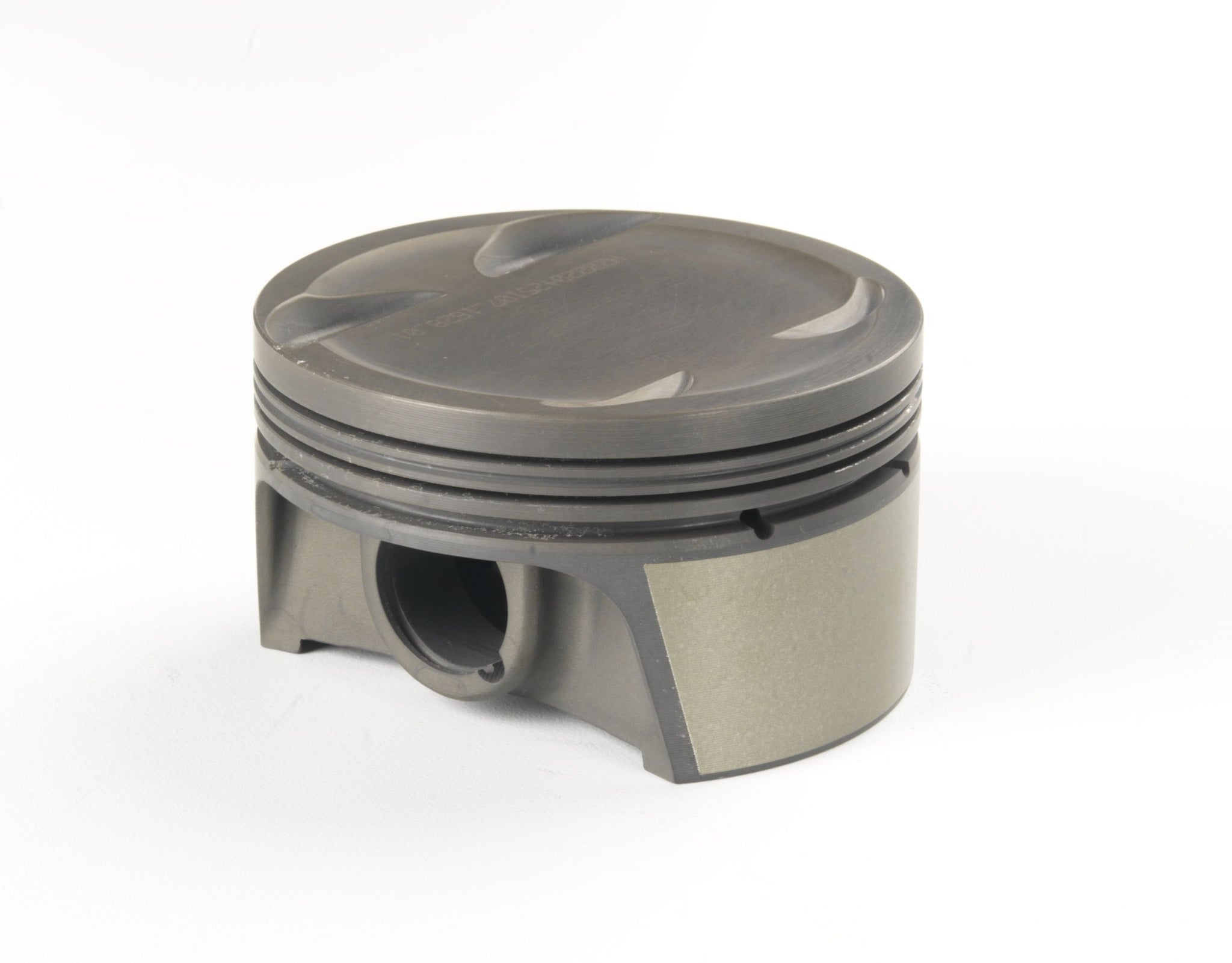

Mahle Gold Series Piston Set Honda F20C 87mm Bore 84mm Stroke 153mm Rod -11cc 8.9 CR - Single - 929986425-1

Piston (ea) - HONDA S2000 F20C 2.0L GOLD SERIES — 87.00mm x 30mm CH, 84.0mm stroke,153mm rod,23mm pin,-11.0cc,303g,8.9CR, 2618, SINGLE PISTON

Application

Honda F20C/F22C 2.0L

Features & Specs

• Replacement piston for kit 929986425, bare piston only, components must be ordered separately
• Crown Volume: -11.0cc
• Clips Included: N
• Clip Style: Round Wire
• UCR Thickness: 1.2mm
• UCR Material: Stainless Steel
• Rings Included: N
• Pin Length: 50.0mm
• Piston Style: Dome, w/ 4 valve reliefs
• Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
• Piston Material: Forged, 2618
• Piston Mass: 303g
• Pins Included: N
• Pin Wall Thickness: 0.197
• Pin Style: Floating
• Pin Material: Steel
• Pin Mass: 109g
• Pin Diameter: 23.0mm
• UCR Coating: Gas Nitrided
• Package Quantity: Sold as a set of 1
• OCR Thickness: 2.8mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.2mm
• LCR Material: Cast Iron
• LCR Coating: Phosphate
• File Fit: N

Country of Origin: US  |  Package: Sold as a set of 1
