Kleinn HK8 / 630 Horns BlastMaster Valve Upgrade Kit - 6880

Why Upgrade to the BlastMaster™ Kit?

• Isolated Solenoid Plumbing: Dedicates a high-performance electrical air valve to every individual trumpet, ending airflow sharing bottlenecks completely.
• Upgraded 1/2" Air Feed Line: Scales up total cubic feet per minute (CFM) from your air tank to achieve instantaneous burst times and deep acoustic notes.
• Premium Chrome Valves: Includes two (2) high-velocity Model 307 chrome-plated solenoids to flawlessly integrate into existing system brackets.
• Up to 30% Output Increase: Maximizes immediate sound output intensity, creating an unmistakable, commanding street presence.

THE VERDICT:The definitive choice for maximizing classic multi-horn velocity. The Model 6880 introduces an unconstrained 1/2" delivery pipeline and a dedicated triple-valve configuration to ensure your air horn system strikes at its true peak acoustic threshold.

⚠️ Important Fitment Verification Note

Before finalizing your upgrade order, please perform a physical inspection of your existing air horn manifold assembly to verify valve styling:

• Chrome Solenoid Systems: This Model 6880 BlastMaster™ kit is designed specifically for systems utilizing the classic **chrome-plated Model 307 solenoid** valve.
• Brass Solenoid Systems: If your system features a newer, all-brass **Vortex™ 6 solenoid valve** (standard on model configurations since 2017 or showing the brass valve on the retail carton layout), you must order **Part Number 6885 Ultra BlastMaster™ Upgrade Kit** instead.

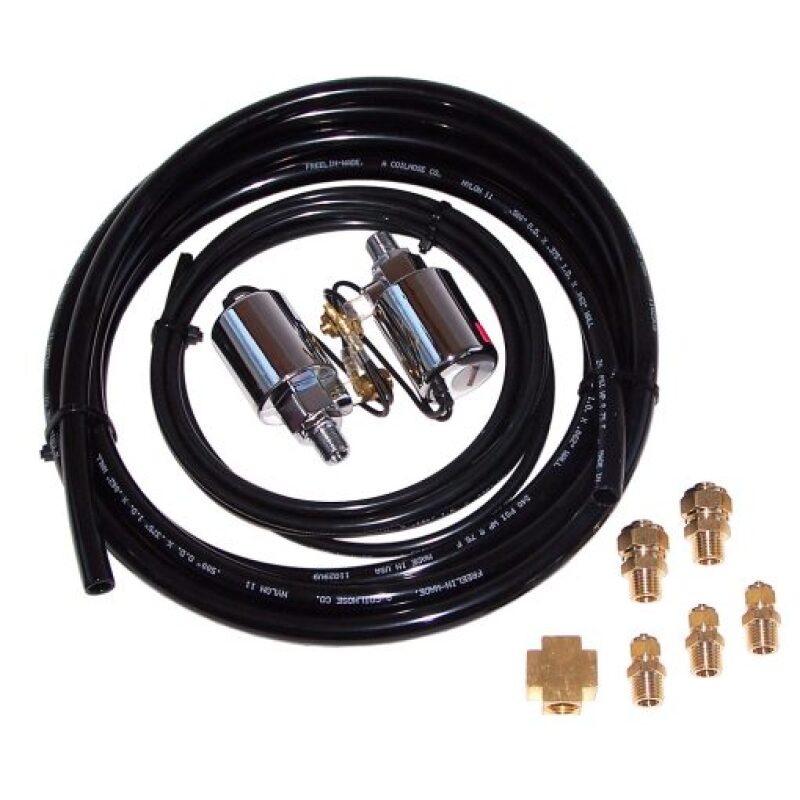

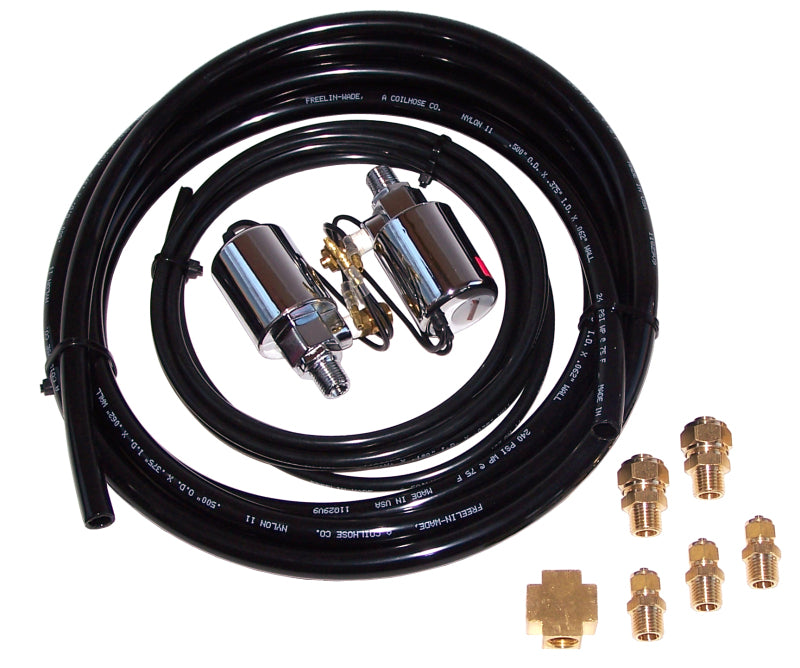

What's Included in the Box

• Model 307 Solenoids: Two (2) high-performance chrome-plated 12V electrical air solenoids.
• Upgraded Air Tubing: One (1) section of high-pressure, oversized 1/2" pneumatic air line.
• Plumbing Hardware Pack: Complete master selection of required compression fittings, junction adapters, and auxiliary tubing.

Three Solenoid Relay Wiring Configuration

Operating a triple-solenoid setup requires structured electrical distribution to safeguard your dash switches and ensure uniform current deployment to all coils simultaneously:

• Relay Terminal 30: Connect directly to a fused +12V positive battery terminal supply source (Ensure heavy gauge wire wire-run matching the total continuous amp draw).
• Relay Terminal 87: Split this power output line into a three-way junction run, feeding one positive lead wire cleanly to each of the individual solenoid valve assemblies.
• Relay Terminal 86: Ground this terminal pin out directly to a clean, unpainted chassis frame run or negative battery wire layer.
• Relay Terminal 85: Route this control pin wire line run up to your interior manual momentary cockpit switch or horn ring wire link.
• Solenoid Ground Returns: Gather the remaining secondary wire leads from all three solenoid casings and ground them collectively to a bare metal location.
