Model HK5: Universal "Mini Beast" Dual Train Horns System | ABS Trumpets
THE LEGENDARY KLEINN LOCOMOTIVE BLAST—REIMAGINED FOR SMALLER RIGS

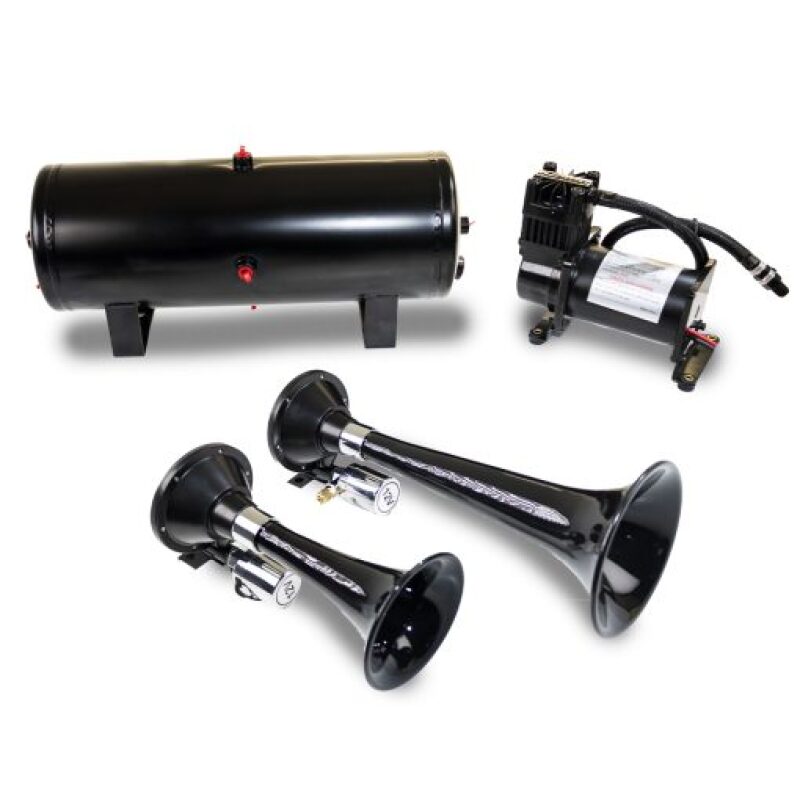

Don’t let the compact footprint or the price tag fool you; the Model HK5 "Mini Beast" truly lives up to its name. This system delivers a deep, locomotive, Kleinn-style blast by pairing dual composite ABS wide-bell horns with high-performance zinc alloy drivers. These horns provide the train horn blast with super versatile mounting capabilities; each horn mounts individually for a fit in virtually any application.
UNRESTRICTED AIRFLOW FOR MAXIMUM VOLUME
To ensure every decibel is accounted for, each horn is equipped with its own Vortex™ 4 (307) solenoid. By providing a dedicated air path of 1/4" airline to each horn, this setup allows for unrestricted airflow and a startlingly loud output that hangs with much larger systems.
THE COMPACT POWERHOUSE
The HK5 is the ultimate solution for vehicles where mounting space is at a premium—such as smaller trucks, SUVs, or Jeeps—but a commanding "get out of the way" presence is non-negotiable. This system bridges the gap between size and strength by pairing our industry-exclusive waterproof compressor with a larger capacity 1.5-Gallon tank. The Result? A consistent 150 PSI of pressurized air that fuels the deep, locomotive-style rumble only a true train horn can produce. Now you can command the road with the authentic Kleinn blast without the need for a massive, space-hungry footprint and with the durability that our clients expect.
TRAIN HORN SPECIFICATIONS
| Dual ABS Train Horns |
| Part Number | Model (220) “Mini Beast” |
| Number of Horns | 2 Horns (Individual Mount) |
| Warranty | 1-Year Warranty |
| Construction | Composite ABS Trumpets, Zinc Alloy Base |
| 12-Volt Solenoid (Chrome) | P/N- 307 Vortex 4 Horn Activation Solenoid |
| Min / Max Pressure | 140 - 160 PSI |
| Output (dB) @ 150 PSI | 151.8 dB |
| Dimensions (Small Horn) | 11.5” L x 5” W x 5” H |
| Dimensions (Large Horn) | 16.25” L x 6.25” W x 6.25” H |
| Minimum Tank Size | 1.5-Gallon |
| Airline Input Size | ¼” OD Airline |
AIR COMPRESSOR SPECIFICATIONS
| 12v Med Duty Air Compressor |
| Part Number | Model 6275RC |
| Warranty | 1-Year |
| Max Pressure | 150 PSI |
| Duty Cycle | 50% @ 100 PSI (@ 72° F) |
| Max Tank Size | 1.5 Gallon |
| Compressor Type | Waterproof Sealed, Oil-less |
| Voltage | 12-Volt DC |
| Motor Type | Permanent Magnetic Motor |
| Max Amp Draw | 20 Amps |
| Dimensions | 8.25” L x 4” W x 6.50” H |
| Mounting Holes | 6.14” L x 3.31” W (5mm Diameter) |
| Mounting Note | Mount in any position except upside down |
| Shipping Weight | 9 lbs |
| Pressure Switch | P/N 2151 (Works with 52175 Safety Valve) |
AIR TANK SPECIFICATIONS
| 1.5-Gallon Air Tank |
| Part Number | Model 6275RT |
| Warranty | 1-Year |
| Tank Capacity | 1.5-Gallon |
| Construction | All Steel Design (Gloss Black Epoxy Finish) |
| Internal Coating | Internal Cortec Coating for Corrosion Resistance |
| Mounting Legs | 2 Legs w/ 4 Mounting Points |
| Air Tank Ports | 5 - 1/4" NPT Ports |
| Mounting Hardware | Fitting Pack - 4 Bolts, Nuts, Washers |
| Max Pressure | 150 PSI |
| Dimensions | 15” L x 6” W x 8” H |
AIR TANK FILL RATE DETAILS
| Tank Capacity | Pressure Range | Fill Rate |
| 1 Gallon | 0 - 150 PSI | 1 Min. 30 Sec. (+/- 10 Sec.) |
| 1 Gallon | 110 - 150 PSI | 22 Sec. (+/- 5 Sec.) |
| 1.5 Gallon | 0 - 150 PSI | 3 Min. 27 Sec. (+/- 10 Sec.) |
| 1.5 Gallon | 110 - 150 PSI | 1 Min. 01 Sec. (+/- 5 Sec.) |
