MODEL 6275: COMPLETE MEDIUM-DUTY 150 PSI COMPRESSED AIR SYSTEM
HIGH PERFORMANCE, COMPACT FOOTPRINT
Don’t let the streamlined profile fool you; the Model 6275 delivers a consistent, high-pressure 150 PSI air supply engineered explicitly to power compact air horns and 220 Dual ABS train horns. Providing rapid recovery times and instantaneous pneumatic response, this system is optimized for vehicles where mounting real estate is restricted but maximum acoustic performance is mandatory.
BUILT FOR THE ELEMENTS
Designed to survive and thrive in punishing off-road and highway environments, this system features a fully sealed moisture- and dust-resistant compressor pump. The ruggedized, oil-less waterproof design actively repels trail grit, mud, high humidity, and abrasive road debris, ensuring dependable, long-term performance under the most grueling conditions.
ENGINEERED FOR LONGEVITY
The 6275 architecture includes a heavy-duty integrated check valve and a remote-mount Snorkel Kit air intake system designed to pull clean, moisture-free air from a protected location inside the vehicle cab. Paired with a robust 1.5-gallon internally coated steel air tank that actively fights rust scaling, this configuration stands as a reliable, long-term onboard air companion.
Why Choose Model 6275?
- 6275RC Compressor: High-efficiency 150 PSI waterproof compressor unit that handles water crossings and harsh elements with ease.
- Snorkel Kit: Extended remote intake filter system safeguards internal components from moisture, trail dust, and grit contamination.
- Compact Footprint: Streamlined design easily slips into tight under-chassis spaces, making it universally compatible with most vehicle platforms.
- High Output Balance: Recharges quickly to sustain maximum horn performance, initial blast intensity, and reliable accessory power.
- Heavy-Duty Architecture: Ruggedized, oil-less design features thermal overload protection for bulletproof trail security.
- Complete All-In-One Kit: Fully equipped with an internally coated steel reservoir, automated pressure switch, brass safety fittings, airline, and structural hardware.
THE VERDICT:The ultimate medium-duty 150 PSI pneumatic center for space-limited applications. The Model 6275 delivers premium, fully waterproofed air support for compact horn systems and air accessories without requiring extensive chassis modifications.

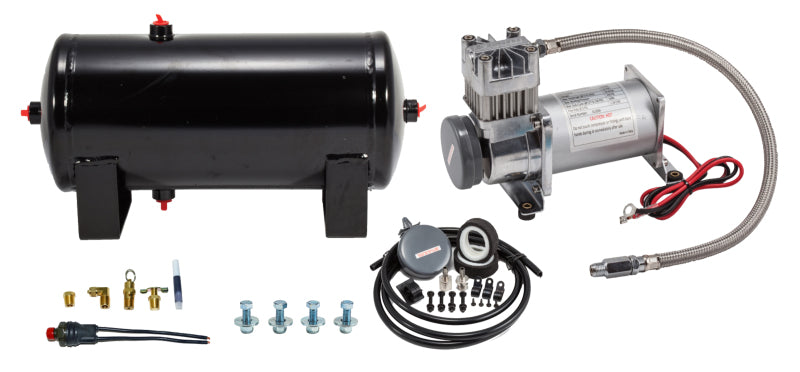

What’s in the Box?
- 6275RC: 150 PSI fully sealed waterproof air compressor
- Snorkel Kit: Remote air intake filter assembly with high-pressure extension tubing
- 6275RT: 1.5-gallon heavy-duty steel air tank with an internal anti-corrosion protective coating
- Fittings Pack: Pre-calibrated sealed pressure switch, safety blow-off valve, brass drain valve, and high-flow compression airline fittings
- Installation Kit: Full heavy-duty wiring harness, high-pressure airline, thread sealant, and all required structural mounting hardware fasteners
COMPRESSOR SPECIFICATIONS
| Feature | Feature Details |
| Part Number | Model 6275RC |
| Warranty | 1-Year |
| Max Pressure | 150 PSI |
| Duty Cycle | 50% @ 100 PSI (@ 72° F) |
| Max Tank Size | 1.5 Gallon |
| Compressor Type | Waterproof Sealed, Oil-less |
| Voltage | 12-Volt DC |
| Motor Type | Permanent Magnetic Motor |
| Max Amp Draw | 20 Amps |
| Dimensions | 8.25” L x 4” W x 6.50” H |
| Mounting Holes | 6.14” L x 3.31” W (5mm Diameter) |
| Mounting Note | Mountable in any position except upside down |
| Shipping Weight | 9 lbs |
| Pressure Switch | P/N 2151 (Works with 52175 Safety Valve) |
AIR TANK SPECIFICATIONS
| Feature | Details |
| Model | 6275RT 1.5-Gallon Air Tank |
| Warranty | 1-Year |
| Tank Capacity | 1.5 Gallon |
| Construction | All Steel Design (Gloss Black Epoxy Finish) |
| Internal Coating | Internal Cortec Coating for Corrosion Resistance |
| Mounting Legs | 2 Legs w/ 4 Mounting Points |
| Air Tank Ports | 5 - 1/4" NPT Ports |
| Mounting Hardware | Fitting Pack - 4 Bolts, Nuts, Washers |
| Max Pressure | 150 PSI |
| Dimensions | 15” L x 6” W x 8” H |
AIR TANK FILL RATES
| Tank Capacity | Tank Pressure Range | Tank Fill Rate |
| .5 Gallon | 0 - 150 PSI | 1:31 Sec. (+/- 5 Sec.) |
| .5 Gallon | 110 - 150 PSI | 0:26 Sec. (+/- 3 Sec.) |
| 1 Gallon | 0 - 150 PSI | 2:37 Sec. (+/- 10 Sec.) |
| 1 Gallon | 110 - 150 PSI | 0:38 Sec. (+/- 5 Sec.) |
