Kleinn Air Horns

SKU: SKU: KLE6852

Kleinn 10 Gauge Compressor Wiring Kit/ 40A Relay/ 14.75 ft w/ AGU Fuse Holder - 6852

$62.95 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Customers also viewed

MODEL 6852: 10-GAUGE AUTOMOTIVE AIR COMPRESSOR WIRING KIT

HEAVY-DUTY AMPERAGE ELECTRICAL ARCHITECTURE

Establish a rock-solid, high-current power path for your pneumatic system with the premium Kleinn Model 6852 Air Compressor Wiring Kit. Explicitly engineered to safely deliver clean power to heavy-draw automotive air systems, this master electrical installation package provides premium 10-gauge structural copper infrastructure wiring. By minimizing voltage drops and eliminating electrical bottlenecks, this kit ensures your heavy-duty compressors start up immediately and run at peak performance without overheating your vehicle's factory electrical layers.

UNIVERSAL HIGH-AMPERAGE POWER HARNESS

The Model 6852 is heavily curated with essential electrical baseline components to simplify your plumbing from bumper to bumper. Featuring a specialized 12V 30/40 amp 5-pin SPDT automotive relay and a dedicated pre-wired socket harness, this network safely separates your cabin controls from high-amperage current spikes under the hood. While optimally optimized as the official companion wiring array for Kleinn train horn systems, this versatile master installation kit can also be deployed in any custom 12V application where switching high-amperage auxiliary devices is required.

Why Choose the 6852 Wiring Kit?

  • Heavy-Duty 10 AWG Line: Packs 14.75 feet of premium 10-gauge power wire, supplying the thick cross-sectional current path needed for high-output compressors.
  • Inline Safety Protection: Equipped with an integrated heavy-duty ATC fuseholder and a matching 30-amp ATC blade fuse to defend against sudden short circuits.
  • Isolated Relay Infrastructure: Packs a commercial-grade 30/40 amp 5-pin SPDT relay with a dedicated socket, shielding cockpit controls from high current loads.
  • The Terminator™ Switch Included: Bonus inclusion of the legendary Model 320 all-metal brushed nickel flush-mount horn activation push button for clean dash styling.

THE VERDICT: The definitive electrical foundation for any high-output air network. The Model 6852 marries heavy-gauge current capabilities with a vital safety fuse and control relay, ensuring your onboard air installation remains secure, efficient, and completely fire-safe.

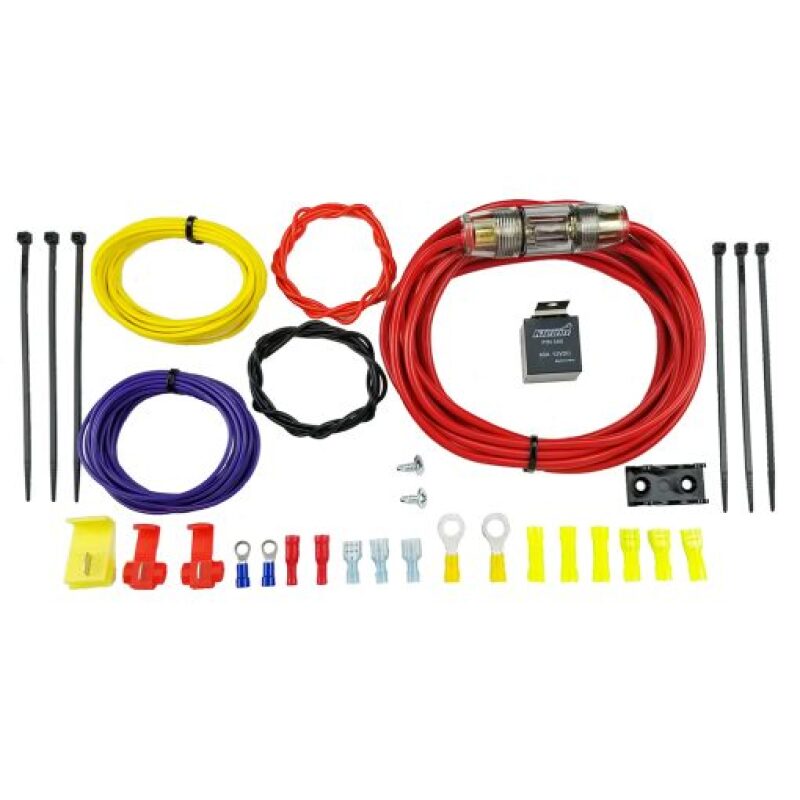

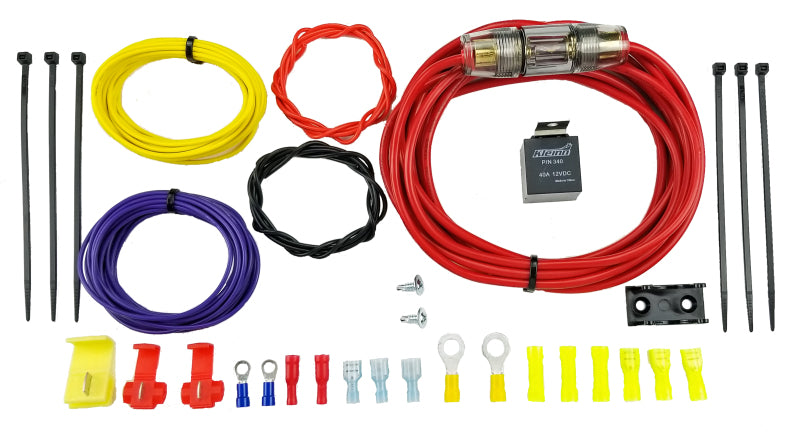

What's Included in the Box

  • Main Power Wire: 14.75 Feet of premium heavy-duty 10-gauge structural power wire.
  • Circuit Protection: Integrated inline ATC fuseholder equipped with one (1) 30-amp ATC blade fuse.
  • Control Module: One (1) premium 12-Volt 30/40 Amp 5-pin SPDT relay and matching socket harness.
  • Signal Wire: Spool of high-utility 18-gauge relay trigger and horn activation wiring.
  • Cockpit Trigger: One (1) Model 320 "The Terminator" brushed nickel flush-mount momentary horn switch.
  • Installation Accessories: Complete assortment of required crimp terminals, wire splices, and installation connectors.

🔴 PRO TIP: Tailor your wire routing seamlessly to your chassis length. This 14.75-foot kit is sized to fit standard vehicle layouts perfectly. If your specific vehicle configuration requires routing an extended compressor power line along the structural frame rails of a long-bed truck or full-size SUV, protect your electrical loop by stepping up directly to our extended Kleinn Part #6858 Wiring Kitthat offers a 26' length 10ga power wire.

PRODUCT SPECIFICATIONS

Feature Details
Part Number 6852
Wire Gauge Core Sizing Heavy-Duty 10 AWG Power Line / 18 AWG Signal Line
Power Wire Length 14.75 Feet Total Run
Relay Specifications 12-Volt DC / 30/40 Amp 5-Pin SPDT with Socket Harness
Circuit Protection Sizing Inline ATC Fuseholder with 30-Amp ATC Fuse Included
Bonus Dash Control Switch Model 320 (Brushed Nickel - 7/8" Flush Face / Fits 3/4" Hole)
System Voltage Compatibility Standard 12-Volt DC Automotive Electrical Loops
Universal Utility Applications Air Compressors, Train Horn Solenoids, Auxiliary Relays, High-Amp 12V Accessories
