Kleinn Air Horns

SKU: SKU: KLE51414BT

Kleinn 1/4In OD Tubing 1/4In M NPT T Push-to-Connect Fitting - 51414BT

$5.49 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Customers also viewed

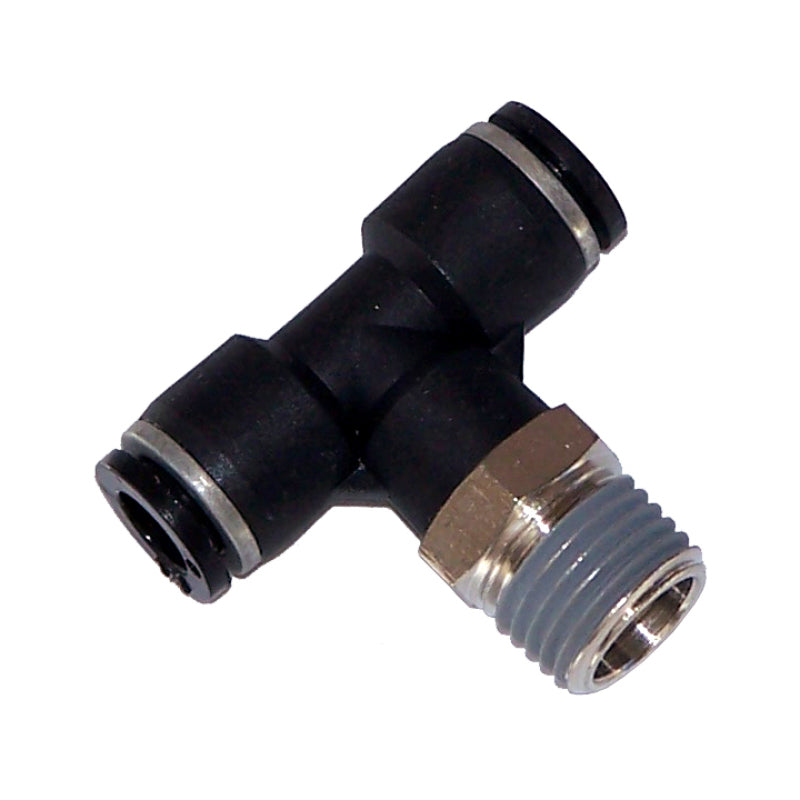

MODEL 51414BT: 1/4" MALE NPT BRANCH PUSH-TO-CONNECT "T" FITTING

EFFICIENT THREE-WAY ADAPTATION & COMPREHENSIVE AIR ROUTING

Simplify complex multi-line plumbing paths and expand your onboard air capabilities with the premium Kleinn Model 51414BT Branch Push-to-Connect "T" Fitting. Custom-engineered to serve as a high-flow split hub, this commercial-grade branch tee features a 1/4" Male NPT thread branch on the bottom and two 1/4" Outside Diameter (O.D.) push-to-connect ports on top. This advanced matrix allows you to split a single air source into two separate run directions straight from a single manifold or storage tank port, entirely eliminating the need for bulky stacked adapter fittings.

SWIVEL-BASE FLUID ALIGNMENT & TOOL-FREE HOSE RETENTION

The Model 51414BT features advanced push-to-connect (PTC) sockets that replace conventional mechanical ferrules and nuts, letting you secure 1/4" O.D. lines instantly by pushing the raw tube end directly into the lock ring. To deliver maximum installation versatility in tight spaces, the threaded male base incorporates a premium swivel architecture. This layout allows you to freely rotate and orient the upper "T" junction in any direction after the threads are tightened down, ensuring perfect air line alignment along vehicle chassis rails, firewalls, or bumper wells.

Why Choose the 51414BT Branch T-Splitter?

  • Efficient Branch Tee Geometry: Allows for a clean 90-degree multi-line split directly from an empty 1/4" NPT tank or manifold port, saving valuable installation space.
  • Instant Push-to-Connect Ports: Symmetrical dual ports accommodate 1/4" O.D. tubing with zero requirement for wrenches or manual compression sleeves—just push to secure.
  • Orientable Swivel Thread Base: Rotates independently after tightening, enabling installers to align line paths flawlessly and eliminate structural routing strain.
  • High-Pressure Internal Seals: Precision-engineered internal O-rings and high-strength gripping teeth lock onto nylon lines to maintain an airtight seal under heavy vibration and extreme PSI.
  • Industrial Strength Build Quality: Precision-machined for unyielding performance and superior corrosion resistance in harsh, exposed under-vehicle environments.

THE VERDICT:The definitive swivel branch tee for quick-assembly air networks. The Model 51414BT marries tool-free push-to-connect speed with an adjustable swivel base to guarantee your multi-horn systems and air accessories remain cleanly plumbed and completely leak-free.

What's Included in the Box

  • Branch Tee Fitting: One (1) Model 51414BT Swivel 1/4" Male NPT to Dual 1/4" O.D. Tube Push-to-Connect "T" Adapter.

🔴 PRO TIP: Lock down an absolute leak-proof seal across your multi-horn lines. Before snapping your 1/4" O.D. high-pressure tubing into either push-to-connect socket, use a dedicated pneumatic hose cutter to slice the lines completely square and clean. Jagged edges or angled cuts from wire snips will score the internal rubber O-rings, leading to slow, hidden system pressure drops that cause your compressor to cycle on unnecessarily.

PRODUCT SPECIFICATIONS

Feature Details
Part Number KL 51414BT (51414BT)
Fitting Interface Type 90° Swivel Branch "T" Push-to-Connect Adapter
Male Connection Sizing 1/4" Male NPT (National Pipe Thread) Base Branch
Tube Connection Sizing Dual (2) 1/4" O.D. (Outer Diameter) Push-to-Connect Ports
Connection Technology Tool-Free Push-to-Connect (PTC) Sockets with Independent Swivel Base
Material Composition Precision Machined Industrial-Grade Weather-Resistant Construction
Primary Utility Application Splitting a single 1/4" NPT air source port into dual 1/4" O.D. lines to feed multiple air horns or accessories concurrently
Component Weight 0.15 lbs
