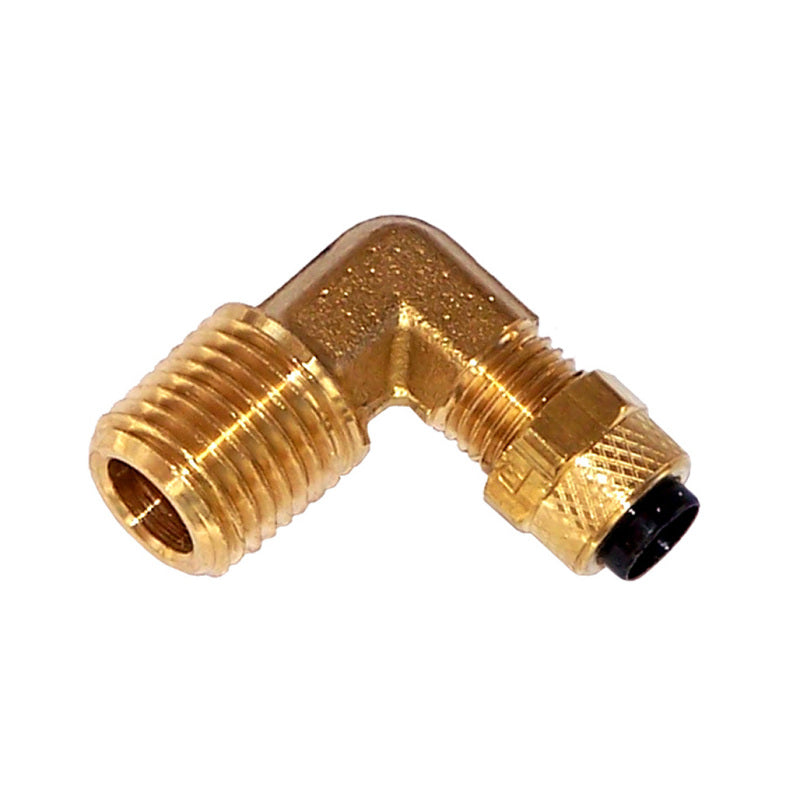

MODEL 51414L: 1/4" MALE NPT ELBOW COMPRESSION FITTING FOR 1/4" O.D. TUBE
PREMIUM 90-DEGREE LOW-PROFILE PLUMBING INTEGRATION
Navigate tight clearances and dense vehicle configurations with the premium Kleinn Model 51414L 90-Degree Elbow Compression Fitting. Precision-engineered to deliver a tight, secure connection in cramped spaces, this commercial-grade interface allows you to route high-pressure air lines around sharp corners or chassis obstacles without risking destructive hose kinks or airflow bottlenecks. It serves as an essential hardware component for plumbing low-profile layouts across air storage tanks, compact compressors, auxiliary manifolds, and air horn solenoids.
AIRTIGHT MECHANICAL COMPRESSION LOCKING
The Model 51414L is engineered to provide an uncompromised leak-proof seal without requiring specialized pipe flaring tools. Outfitted with a standard 1/4" Male NPT thread on one end, it seats tightly into fluid receiver ports, while the integrated heavy-duty mechanical compression end provides a reliable mechanical grip on standard 1/4" Outside Diameter (O.D.) high-pressure tubing. This heavy mechanical architecture ensures your layout maintains peak pressure thresholds even when subjected to intense chassis vibrations and harsh automotive environments.
Why Choose the 51414L Elbow Compression Fitting?
- 90-Degree Right Angle Design: Optimizes low-profile installations, delivering clean, organized air line paths within cramped engine bays or tight chassis frame rails.
- Secure Compression Seal: Pre-matched ferrule and compression hardware establish a permanent, mechanical lock on 1/4" O.D. tubing that remains completely airtight under severe vibration.
- Universal NPT Compatibility: Standard 1/4" Male NPT threads spin smoothly and natively into most aftermarket air tanks, upfitter manifolds, and electronic solenoids.
- Industrial Strength Construction: Precision-machined for superior structural durability, long-term corrosion resistance, and high-pressure cyclic fatigue life.
THE VERDICT:The definitive right-angle adapter for tight-clearance plumbing. The Model 51414L blends a robust mechanical compression sleeve with a clean, low-profile 90-degree configuration to guarantee your air distribution runs remain completely secure and kink-free anywhere on your vehicle.
What's Included in the Box
- Elbow Fitting: One (1) Model 51414L 90° Elbow 1/4" Male NPT to 1/4" O.D. Tube adapter body.
- Locking Hardware: One (1) pre-matched compression nut and sleeve ferrule kit.
🔴 PRO TIP: Ensure a permanent, zero-leak lock on your air lines. Before snugging down the compression nut with your standard service wrenches, use a dedicated pneumatic hose cutter to ensure your 1/4" O.D. high-pressure line is sliced completely square and smooth. Always add a few drops of liquid anaerobic compound like our genuine Kleinn JUICE to the Male NPT threads to completely insulate against slow, phantom pressure leaks.
PRODUCT SPECIFICATIONS
| Feature | Details |
| Part Number | KL 51414L (51414L) |
| Fitting Type | 90° Right Angle Elbow Compression |
| Thread Connection Size | 1/4" Male NPT (National Pipe Thread) |
| Compatible Tube Sizing | 1/4" O.D. (Outer Diameter) High-Pressure Tubing |
| Installation Hardware | Integrated Compression Ferrule Sleeve & Threaded Locking Nut |
| Primary Utility Application | Low-profile pneumatic line routing for air tanks, compressors, solenoids, and horns |
| Component Weight | 0.1 lbs |
