KC HiLITES 20+ Jeep Wrangler/Gladiator Mojave Gravity Titan Overhead Light Bar - AK-91426

At the center of the system is the Gravity Titan LED Light Bar, KC's most advanced lighting platform. Powered by the Titan Core and 3-Source LED optics, Titan produces a larger illumination zone, increased peak intensity, and greater beam distance than previous Gravity platforms. Dual Power Modes allow you to switch between full High Power Mode for nighttime driving and an integrated Amber Dust Light that acts as a highly visible marker in dusty, snowy, or low-visibility conditions. The system is completed with Jeep Wrangler 392 / Gladiator Mojave overhead mounting brackets built from heavy-duty steel and finished in a black powder coat. Designed for a precise fit on these factory-equipped models, the brackets provide a secure mounting solution engineered to withstand aggressive off-road use while maintaining compatibility with OEM components.

Features

• FEATURES

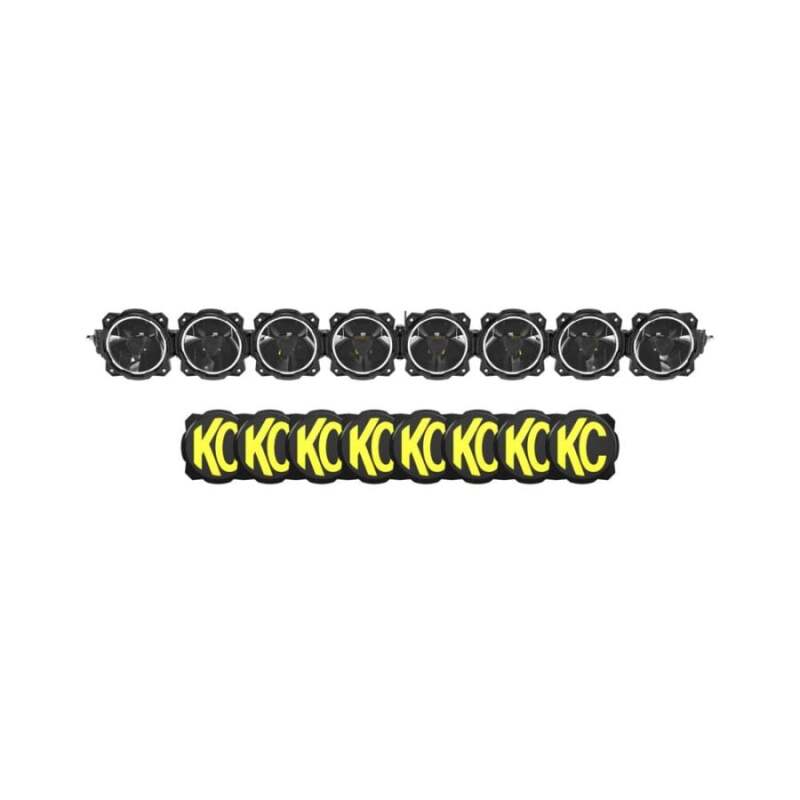

• 1x Gravity Titan 50" LED Light Bar 8-Light Combo Beam (SKU 91418)
• 8x Gravity 6" Light Covers – Black with Yellow KC Logo
• 1x Complete Wiring Kit with 3-Position Switch
• 1x Cover Removal Tool
• 1x Pair of Jeep Wrangler 392/Gladiator Mojave overhead mounting brackets (SKU 7328)
• Fitment & Installation Notes
• Vehicle Fitment: 2021-2026 Jeep Wrangler 392/2020-2026 Jeep Gladiator Mojave
• Mounting Location: Overhead/windshield
• Installation: Bolt-on installation using factory mounting locations
• For Jeep Wrangler NON-392/Gladiator Mojave Trims, see SKU AK-91424
• Dual Power Modes: Amber LED Dust Light: Highly visible marker for low-visibility conditions
• High-Power Mode: Intense forward-facing illumination for nighttime trail use
• Titan Core: Patented Pass-Through Front Cooling: Superior thermal management
• 3-Source LED Optics: Delivers comprehensive mid- and long-range lighting coverage
• Linkable and Curvable: Patented Infinity Ring system offers expandable widths and the option to curve or straighten your setup
• Gravity Reflective Diode Technology: Ensures unmatched beam precision and efficiency, providing brighter and more focused light
• MoistureBlock Technology: Integrated weather-sealed plug protects against water intrusion
• WHAT'S INCLUDED

Specifications

• Amp Draw Per Light: 0.93 A (Amber) / 3.29 A (White)
• Light Technology: LED
• Voltage: 9V-36V
• Total Wattage: 89.6W (Amber) /315.84W (White)
• Lux Total: 10,205 lx
• Lux: 1,443lx (Spot) / 775lx (Wide 40)
• Lumens Total: 23,776 lm
• Lumens Per Light: 2,972 lm
• Light Size (Inch): 50.0 in
• Amp Draw Total: 7.47 A (Amber) / 26.32 A (White)
• Light Temp - Units: Kelvin
• Light Temp (Kelvin): 5000 K
• Lens Color: Clear
• LED Color: Amber & White
• IP Rating: IP68
• Includes Installation Hardware: Yes
• Color: Black
• Candela Total: 1,020,500 cd
• Candela: 144,250cd (Spot) / 77,500cd (Wide 40)
• Beam Pattern: Combo
• Beam Distance (Meters): 1,010 m

Application

2018-2024 Jeep Wrangler JL/Gladiator JT
