As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons' performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Features & Benefits
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA

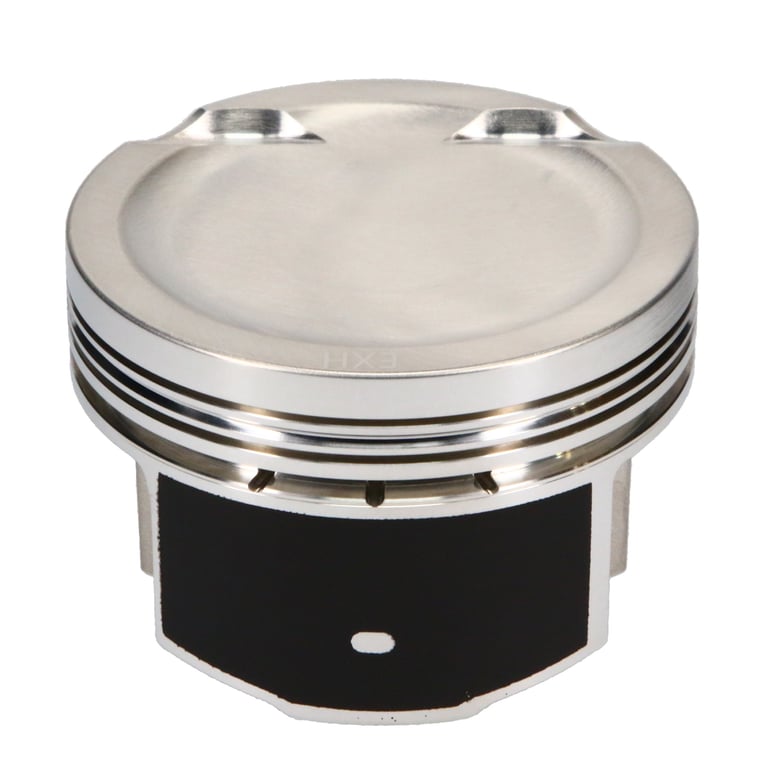

Specifications: Piston Set, 2618, Inv Dome/Dish, 3.209 Bore, 1.291 CD, 0.787 Pin, Set of 4.
These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.
Detailed Specifications
-
Intake Depth: .145 in.
-
Top Compression Ring Thickness: 0.0400 in.
-
Top Groove Width: 0.04000 in.
-
2nd Groove Width: 0.048 in.
-
Second Compression Ring Thickness: 0.0480 in.
-
Oil Ring Thickness: 0.111 in.
-
Oil Groove Width: 0.11100 in.
-
Wrist Pin Wall Thickness: 0.180 in.
-
Intake Diameter: 1.420 in.
-
Engine: 1.8L KR/PL 16V
-
Wrist Pin Length: 2.250 in.
-
Intake Angle: 24
-
Piston Average Weight: 288 g
-
Engine Stroke: 3.402 in.
-
Piston Quantity: 4
-
Connecting Rod Length: 5.669 in.
-
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
-
Piston Volume: 8.30 cc
-
Bore Diameter: 81.50 mm
-
Forging Type: FSR
-
Ring Set - Recommended: JG1001-3209
-
Cylinder Head: KR/PL
-
Accumulator Groove: Yes
-
Pin Fit: Yes
-
Ring Set Included: Yes
-
Skirt Coat: Yes
-
Smooth Crown Finish: Yes
