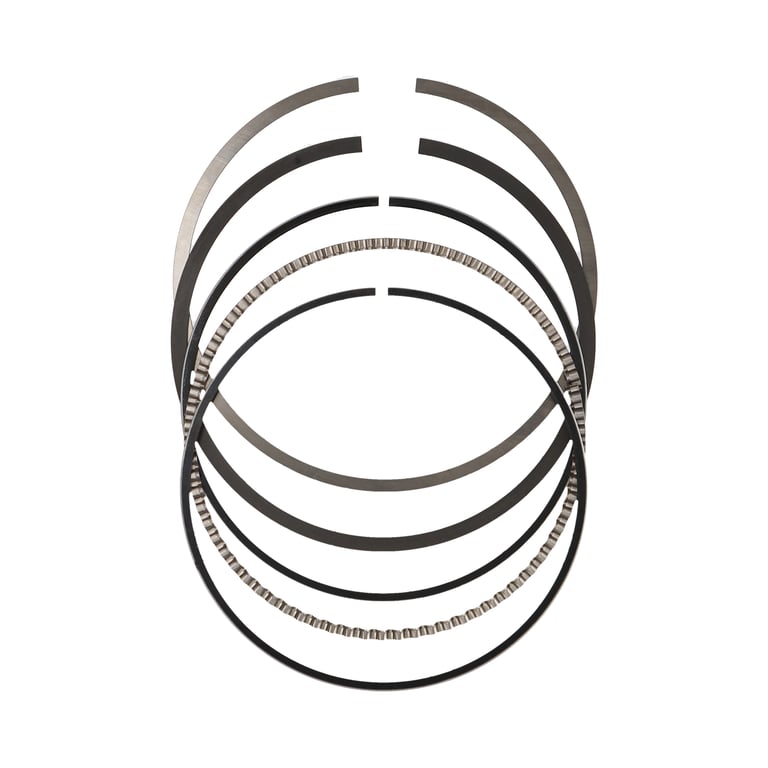

JE Pistons Ring Sets 1.0-1.0-2.0-3.268 - XG8300

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

Features & Benefits

• Alloy steel ferrox coated top ring
• Cast iron phosphate coated second ring
• 3 piece oil assembly
• Stainless steel spacer

Specifications: Piston Ring Set, 1 Cyl., File Fit, Each.

Detailed Specifications

• Third Ring Shape: SS50U Style
• Third Ring Material: Carbon Steel
• Third Ring Facing Material: Carbon Steel
• File Fit: Yes
• Bore Diameter: 3.268 in.
• Second Compression Ring Thickness: 0.0394 in.
• Top Compression Ring Thickness: 0.0394 in.
• Ring Set Thickness: 0.0394 in. Top x 0.0394 in. 2nd x 0.079 in. Oil
• Oil Ring Thickness: 0.079 in.
• Top Ring Radial Width: 0.124 in.
• Oil Ring Radial Width: 0.132 in.
• Second Ring Radial Width: 0.132 in.
• Second Ring Axial Height: 1.00 mm
• Top Ring Axial Height: 1.00 mm
• Oil Ring Axial Height: 2.00 mm
• Ring Type: 3 Ring
• Top Ring Shape: Barrel Face, Back Cut, Neutral
• Top Ring Material: Carbon Steel
• Top Ring Facing Material: Chrome
• Second Ring Material: Ductile Iron
• Second Ring Shape: Taper Face, Back Cut, Neutral
