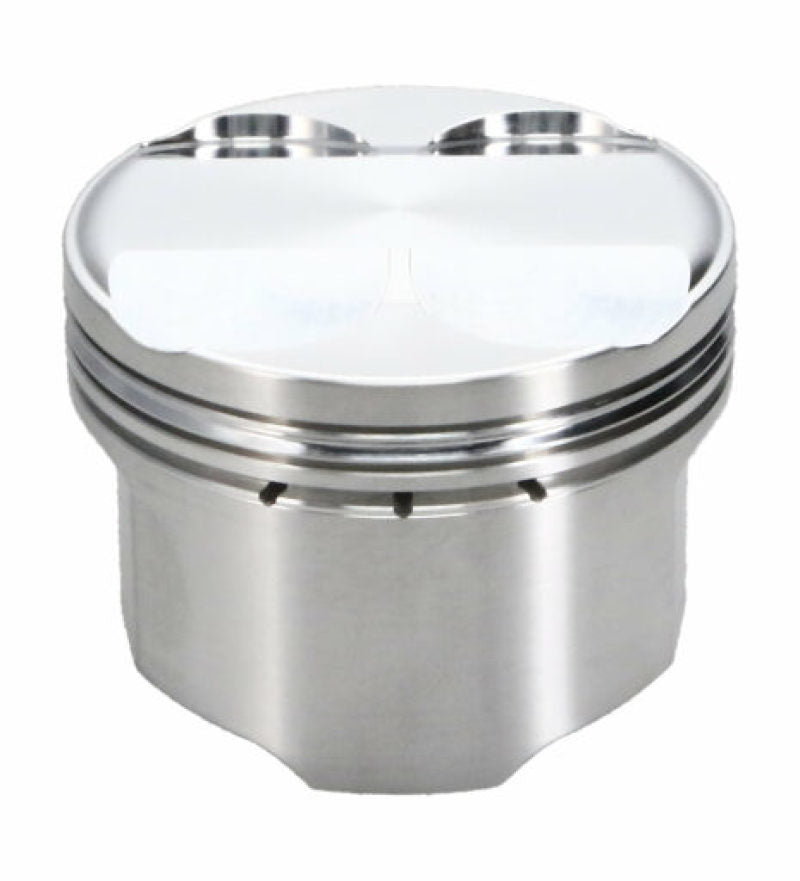

JE Pistons JE ULTRA SERIES - 1999-07 Suzuki GSX 130 Piston Kit - 379437

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Features & Benefits

• Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
• Designed specifically for each engine and use application to provide optimized performance durability
• Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
• Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
• Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
• Patented Dual Velocity Gas Ports combine the benefits of traditional gas ports, reducing ring flutter and movement while optimizing fuel efficiency and power output?without the risk of carbon build-up
• Made 100% in the USA

Specifications: Bore Diameter 3.268, 2618, Dome Piston Kit, Set of 2

These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Detailed Specifications

• Oil Groove Width: 0.11100 in.
• Piston Volume: -2.5 cc
• Exhaust Depth: .120
• Intake Depth: .184 in.
• Wrist Pin Outer Diameter: .787 in.
• Top Groove Width: 0.04000 in.
• 2nd Groove Width: 0.048 in.
• Exhaust Diameter: 1.250
• Intake Diameter: 1.420 in.
• Exhaust Angle: 13
• Intake Angle: 13
• Compression Ratio Actual: 13.5
• Wrist Pin Length: 2.250 in.
• Engine Stroke: 2.480 in.
• Piston Average Weight: 264 g
• Forging Type: FSR
• Cylinder Head: SUZUKI M/C 01
• Accumulator Groove: Yes
• Lateral Gas Ports: Yes
• Pin Fit: Yes
• Skirt Coat: Yes
• Thermal Crown: Yes
