As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons' performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Features & Benefits
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise

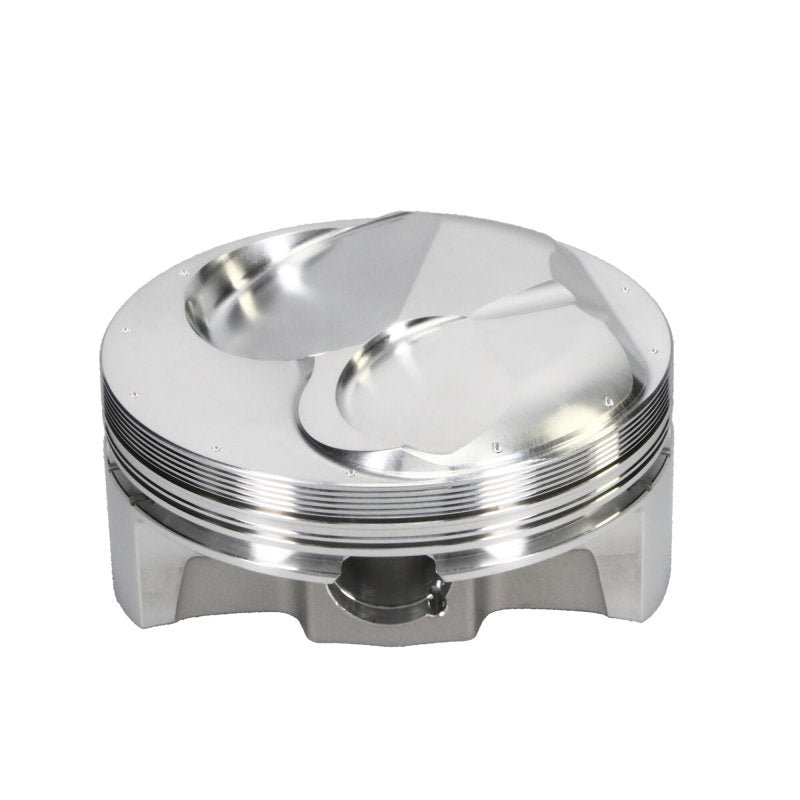

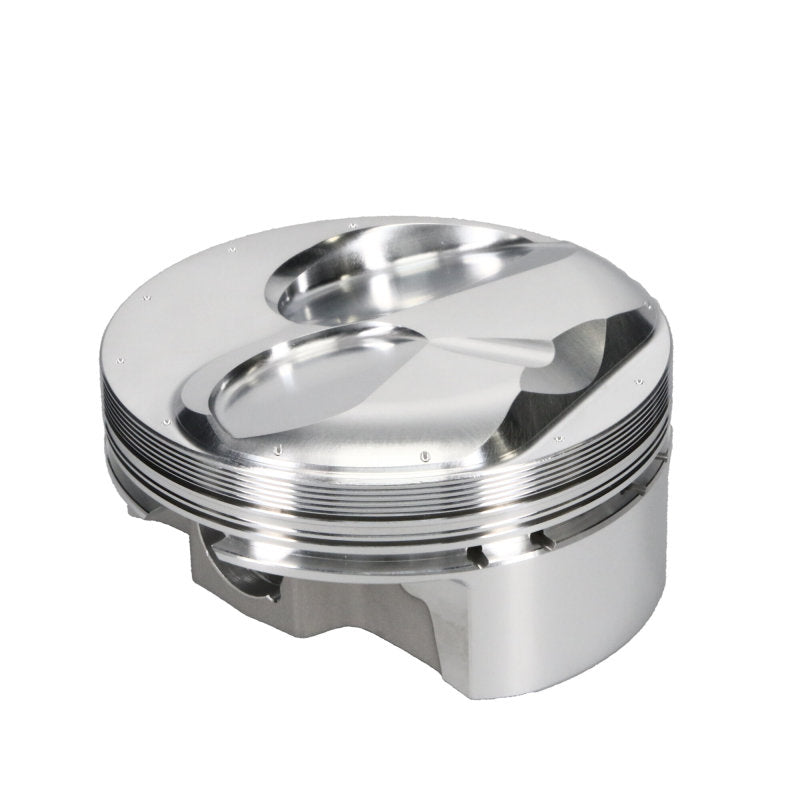

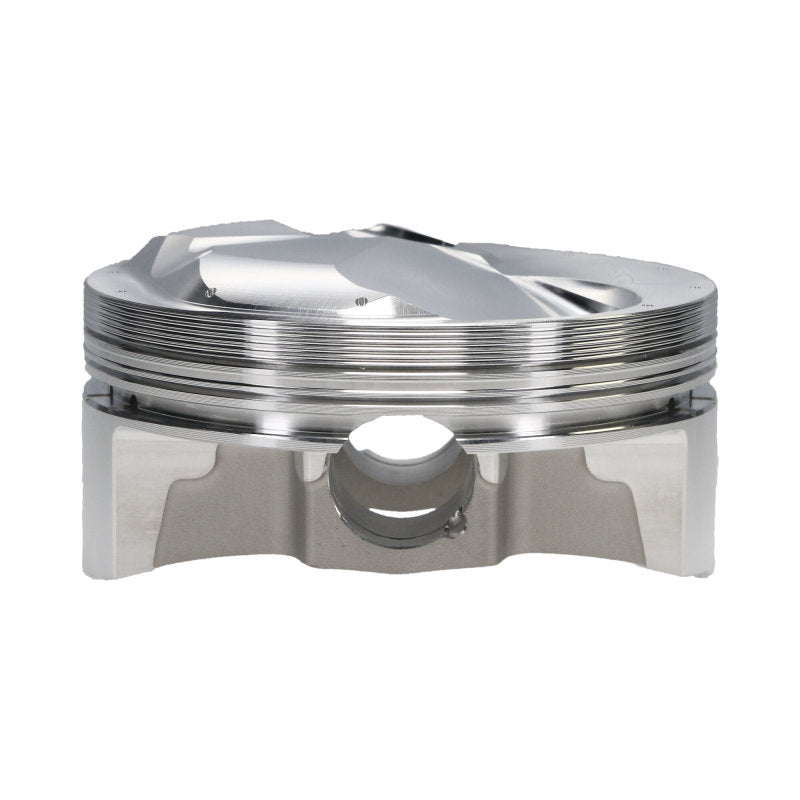

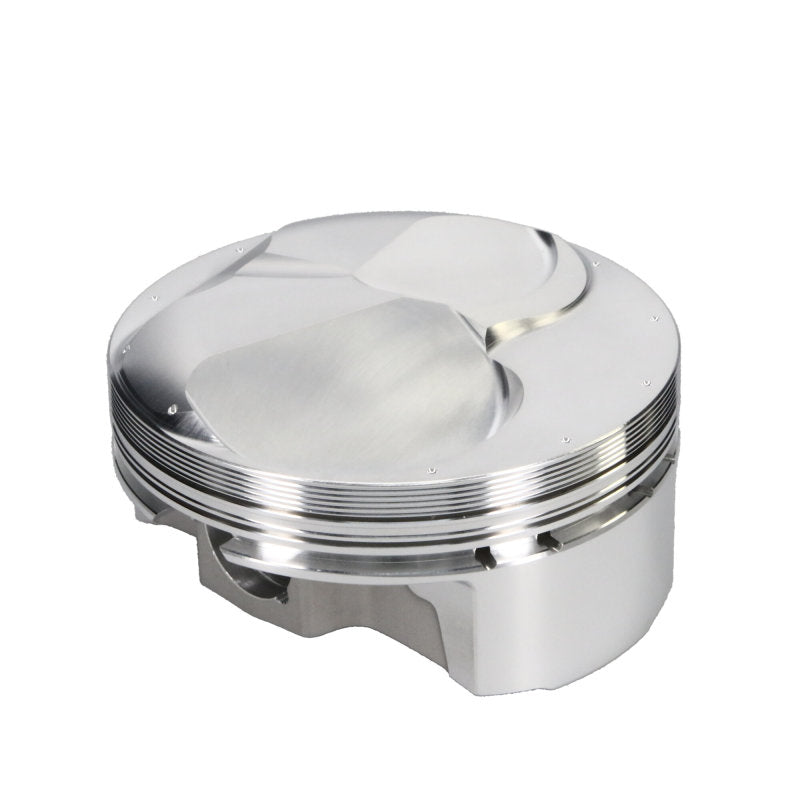

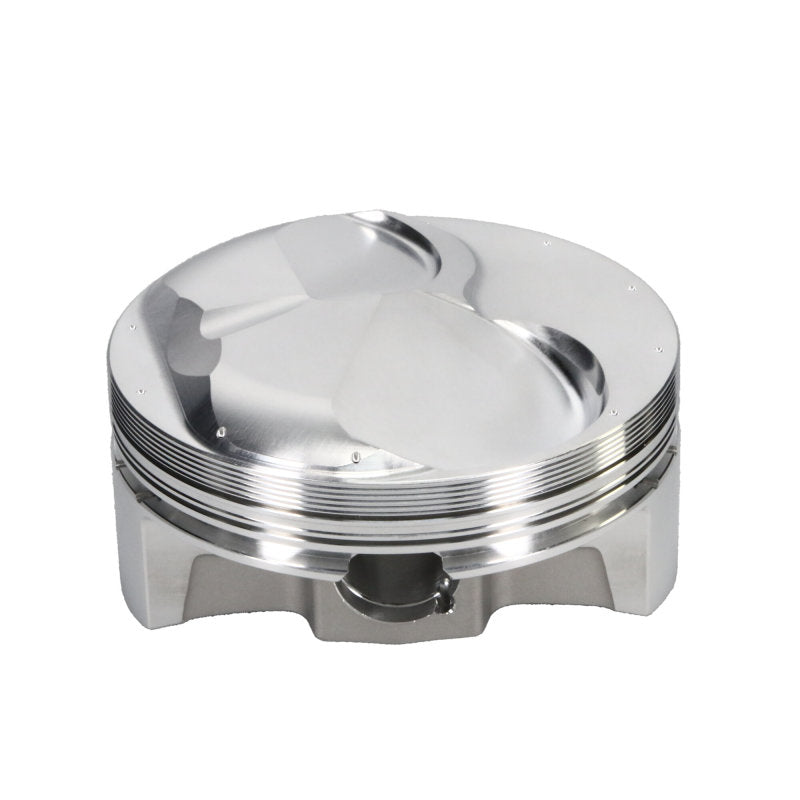

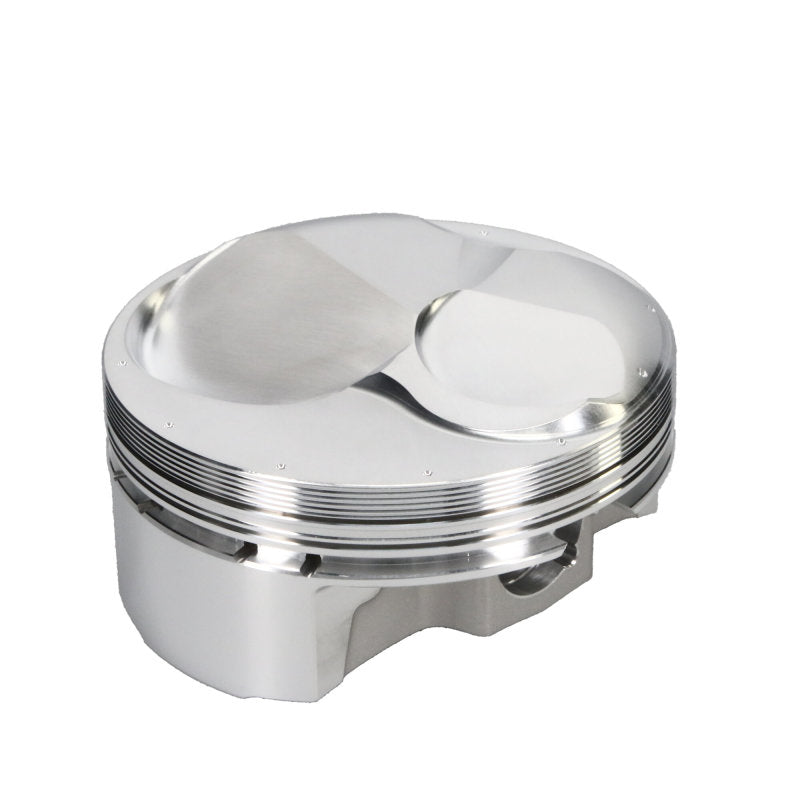

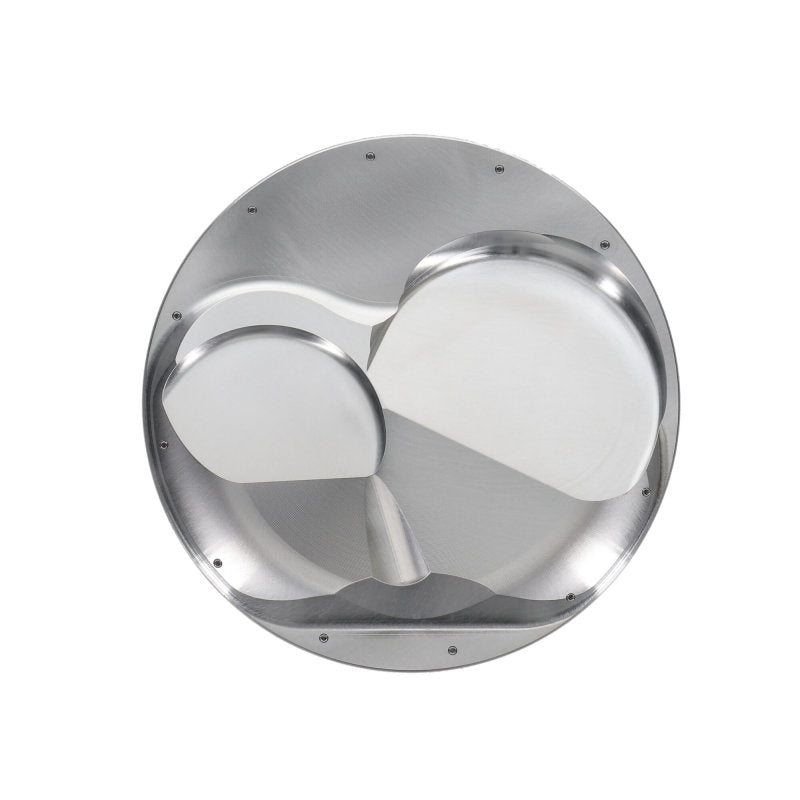

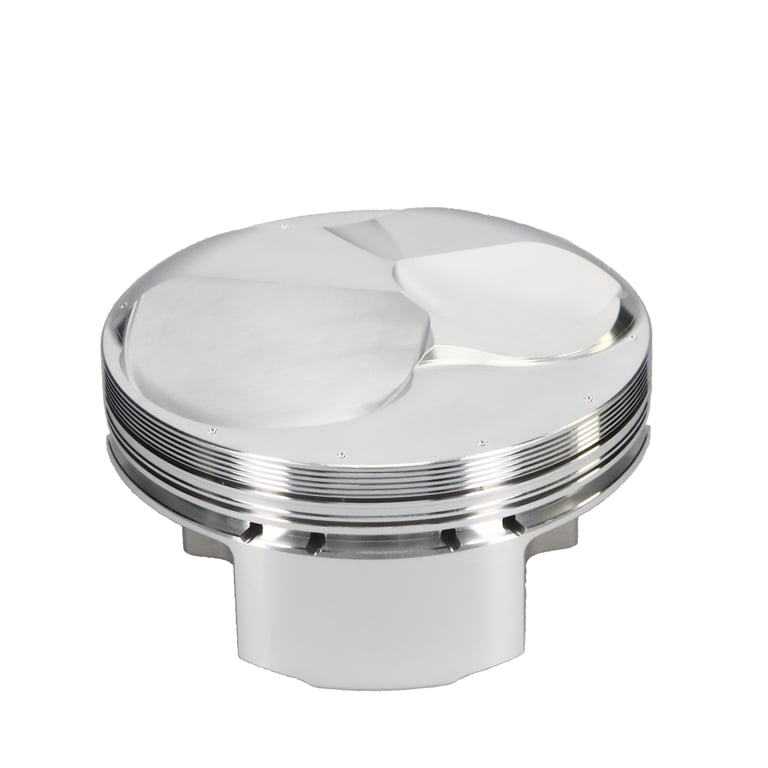

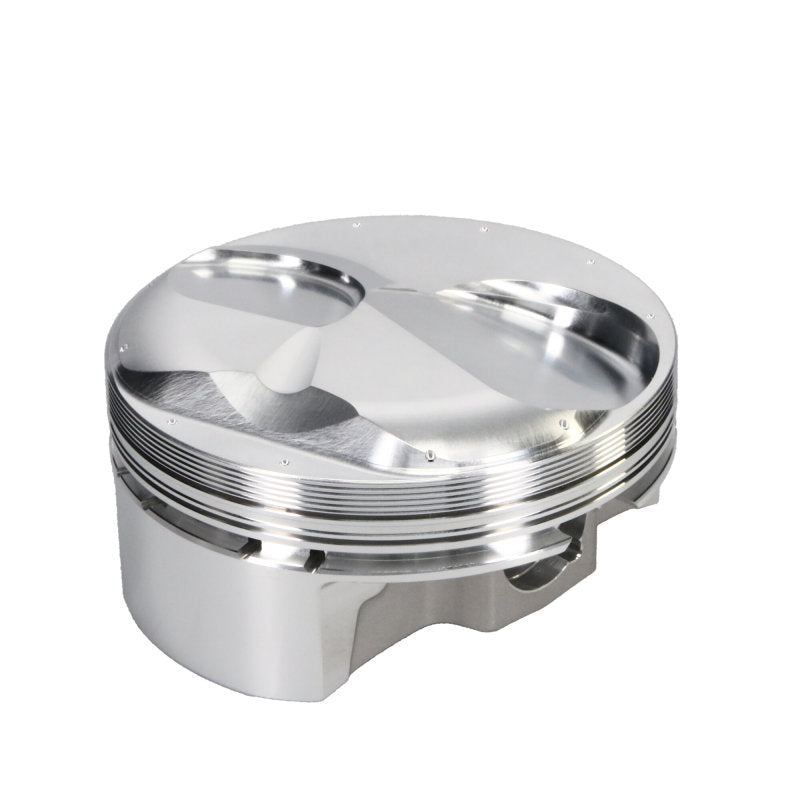

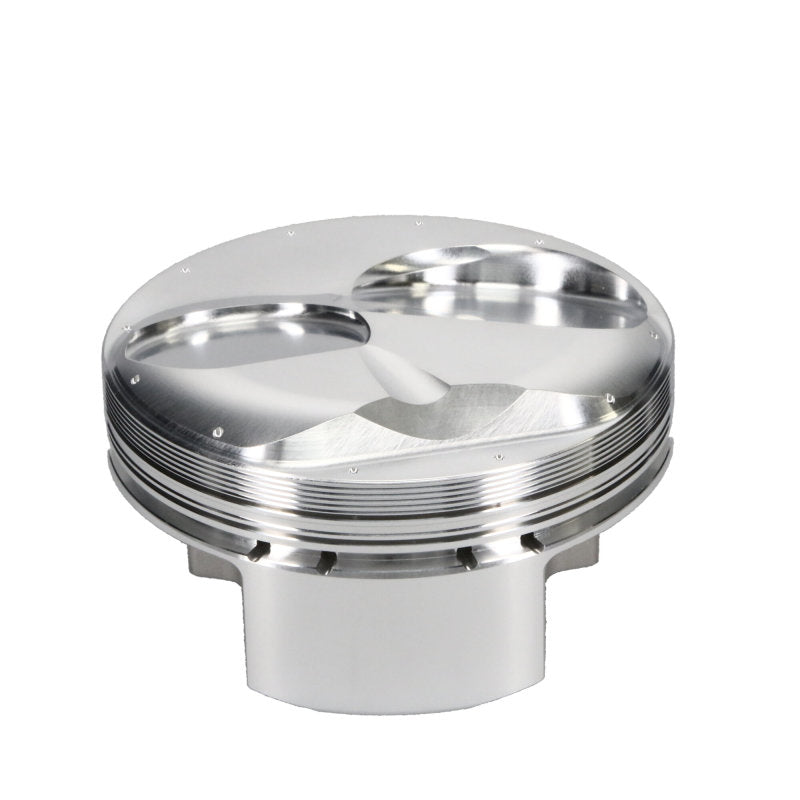

Specifications: Piston Set, 2618, Dome, 4.600 Bore, 1.120 CD, 0.990 Pin Dia, Set of 8.
JE designs are specifically engineered for extreme upplications up to, and including, professional competition
Detailed Specifications
-
Intake Depth: .335 in.
-
Exhaust Depth: ^.010
-
Top Groove Width: 0.04350 in.
-
2nd Groove Width: 0.044 in.
-
Oil Groove Width: 0.15000 in.
-
Wrist Pin Length: 2.750 in.
-
Intake Angle: 20
-
Piston Volume: 23.00 cc
-
Engine Stroke: 4.250 in.
-
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
-
Connecting Rod Length: 6.535 in.
-
Piston Average Weight: 605
-
Cylinder Head: 64- Brodix SR20
-
Engine Detail: 64- Brodix SR20
-
Piston Quantity: 8
-
Engine: Big Block
-
Engine Family: Big Block
-
Forging Type: FSR
-
Intake Diameter: 2.565 in.
-
Exhaust Diameter: 2.000
-
Exhaust Angle: 13
-
Wrist Pin Wall Thickness: 0.160 in.
-
Contact Reduction: Yes
-

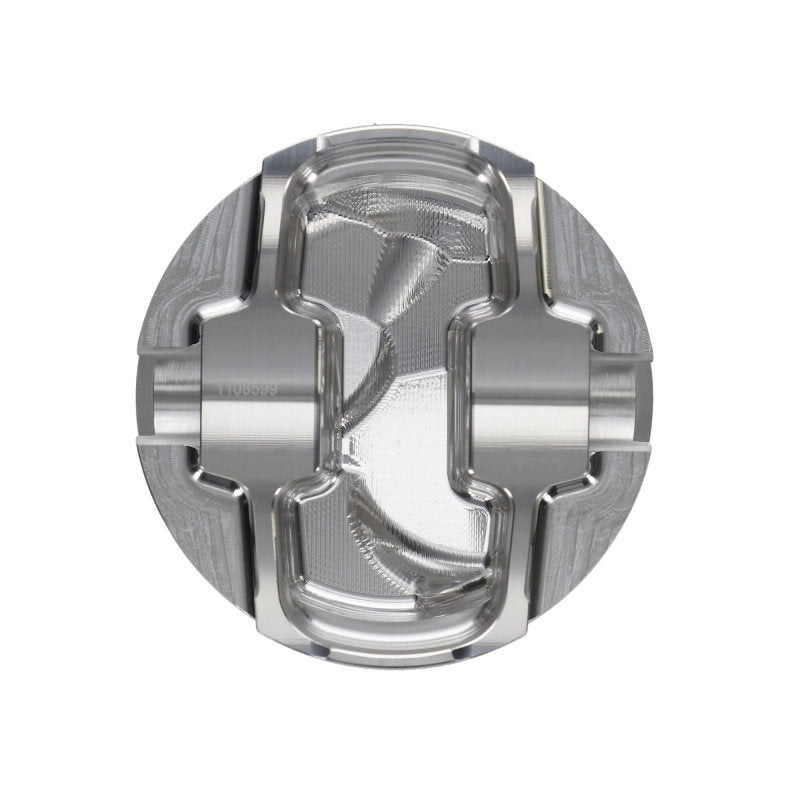

Econo Undercrown Milling: Yes
-
Pin Fit: Yes
-
Smooth Crown Finish: Yes
-
Ultra Groove: Yes
-
Vertical Gas Ports: Yes
