2003-2018 Cummins Gorilla Girdle W/ ARP XL Main Studs

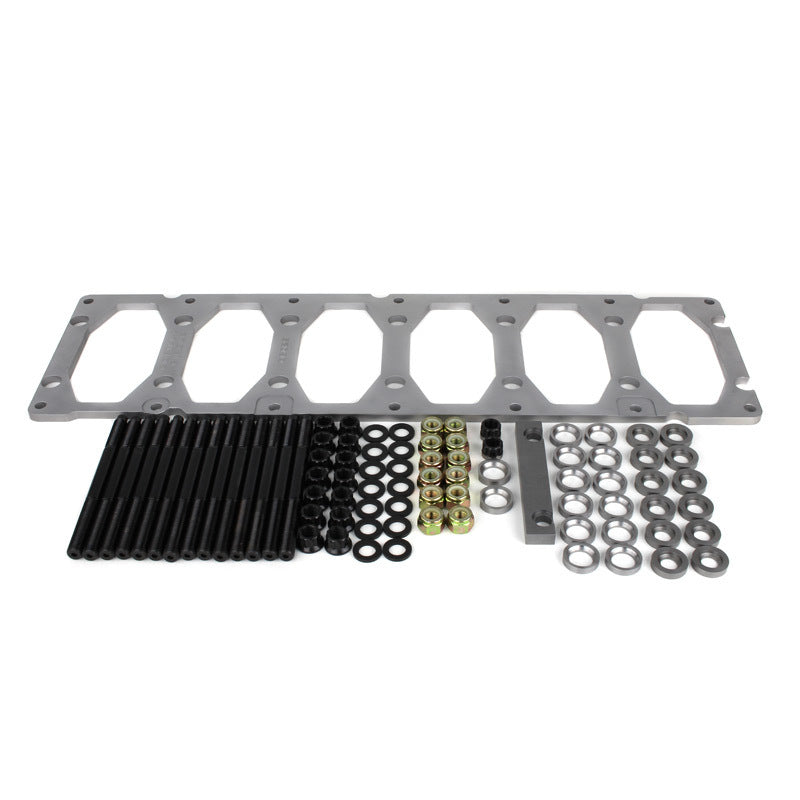

This kit includes:
- 1 Gorilla Girdle, 14 top spacers, (large hole)
- 12 bottom spacers (small hole)
- 1 rear main spacer bar
- 2 rear main stud nuts (12 point)
- 12 main stud nuts (Nylock).
- Available in 12mm or 14mm
- 14MM Kit will require a stamped oil pan
Before you start, READ AND UNDERSTAND THE INSTRUCTIONS.
(12mm ARP 2000, 125 ft lbs)
((14mm ARP, 150 ft lbs))
NOTE: On certain 6.7L Cummins engines that come factory with a windage tray instead of a factory girdle you will be required to get the early style longer oil pickup tube bolts as well as an early style oil pickup tube. We are currently working on a fix for this to prevent any further install issues.
Cummins oil pickup tube part number: 3949692 (qty 1)
Cummins oil pickup tube bolt part number: 3902460 (qty 2)
