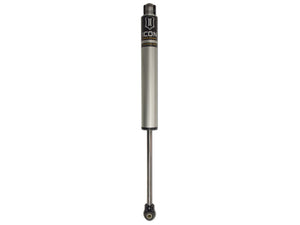

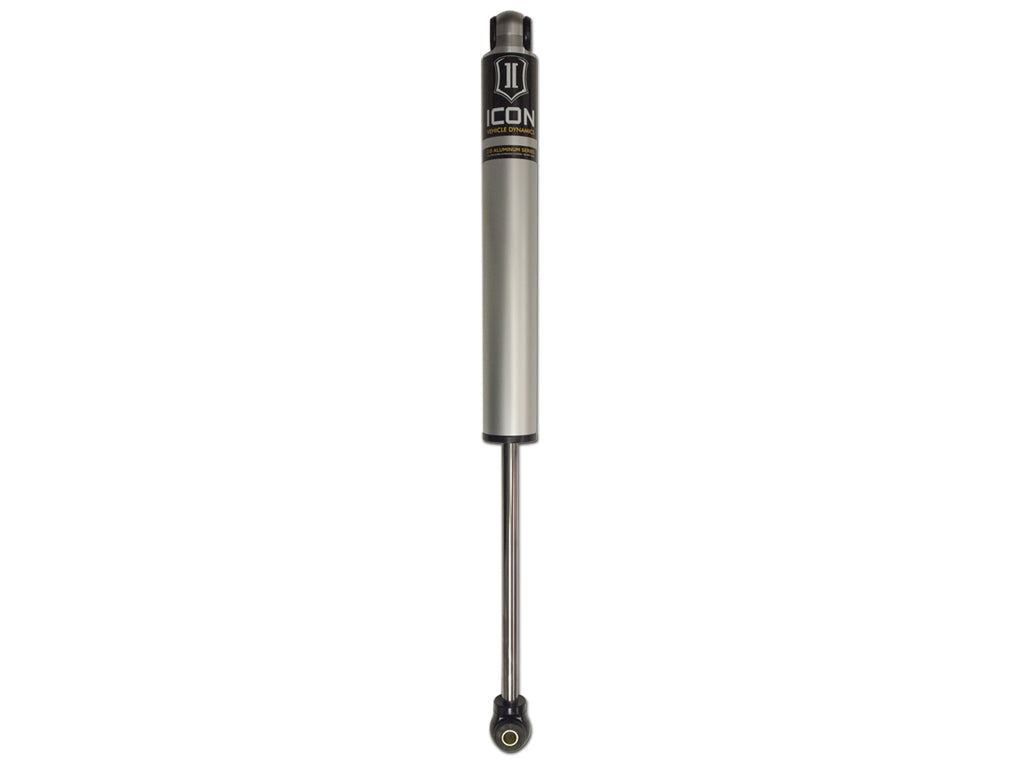

ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.
Features
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged emulsion shock
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
- 100% revalveable
TECH NOTE: Not application specific and may require custom fabrication to mount to vehicle.
EXTENDED LENGTH: 23.00"
COMPRESSED LENGTH: 13.55"
SHAFT TRAVEL: 9.45"
MOUNTING DIMENSIONS: Upper/lower eyelets for 1.5" width between tabs and .5" diameter bolt
Specifications
| Add-On Part |
614700 - 2.0 SHOCK BOOT KIT (EACH) |
| Adjustable |
No |
| Adjustable Damping |
Yes |
| Bore Diameter |
1.75 IN |
| Bushing Color |
Black |
| Bushing Included |
yes |
| Bushing Material |
Polyurethane |
| Coil Over Springs Included |
No |
| Damping Type |
Oil |
| Dust Shield |
No |
| Mounting Width |
1.5" x 1/2" Bolt (Upper&Lower) |
| Remote Reservoir |
NO |
| Service Parts |
252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts |
252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts |
254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
