ICON Part # ICO67811P

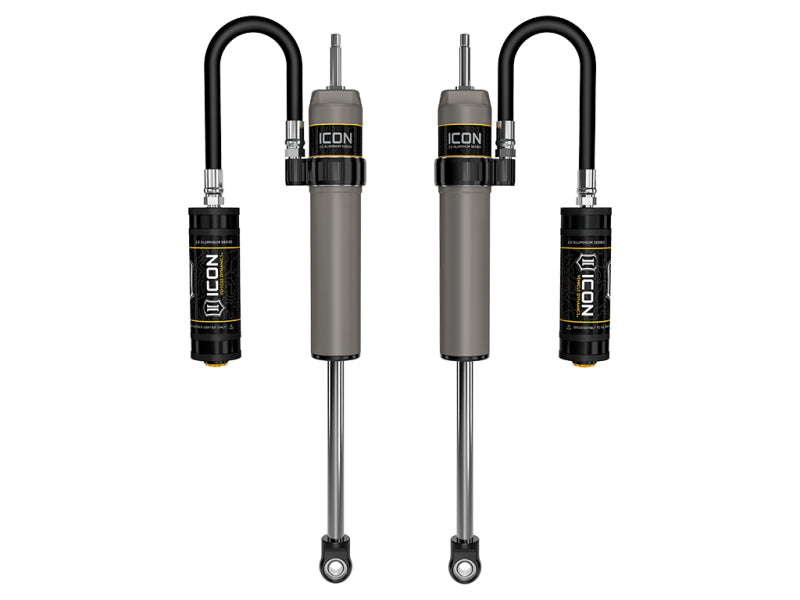

ICON 23-24 Ford F-250/F-350 Super Duty 4WD 4.5in Front 2.5 Series Shocks VS RR - Pair - 67811P

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. Remoyte reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. If you are looking for a more user-defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Installation Instructions

  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Fully rebuildable and retunable
  • Nitrogen charged monotube design with remote reservoir
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use and allow for longer suspension travel
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • Polyurethane bushings and forged steel mounting stems for OE factory type fitment
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish

  • Bore Diameter: 2.25 in.
  • Compressed Length: 15.98 in.
  • External Reservoir: Yes
  • Gas Charged: Yes
  • Lower Mount Type: EYELET
  • Mounting Hardware Included: Yes
  • Cylinder Color: Gray
  • Cylinder Diameter: 2.5 in.
  • Damping Type: Oil
  • Extended Length: 25.11 in.
  • Reservoir Type: Remote
  • Upper Mount Type: Stem
  • Valving Type: Digressive
  • Shaft Diameter: 0.875 in.
  • Shaft Material: Chrome
  • Shock Absorber Body End Measuring Point: Shoulder of Stem
  • Shock Absorber Rod End Measuring Point: Center of Eylet
  • Stroke Length Front: 9.13 in.
