SKU: SKU: ICO54102T

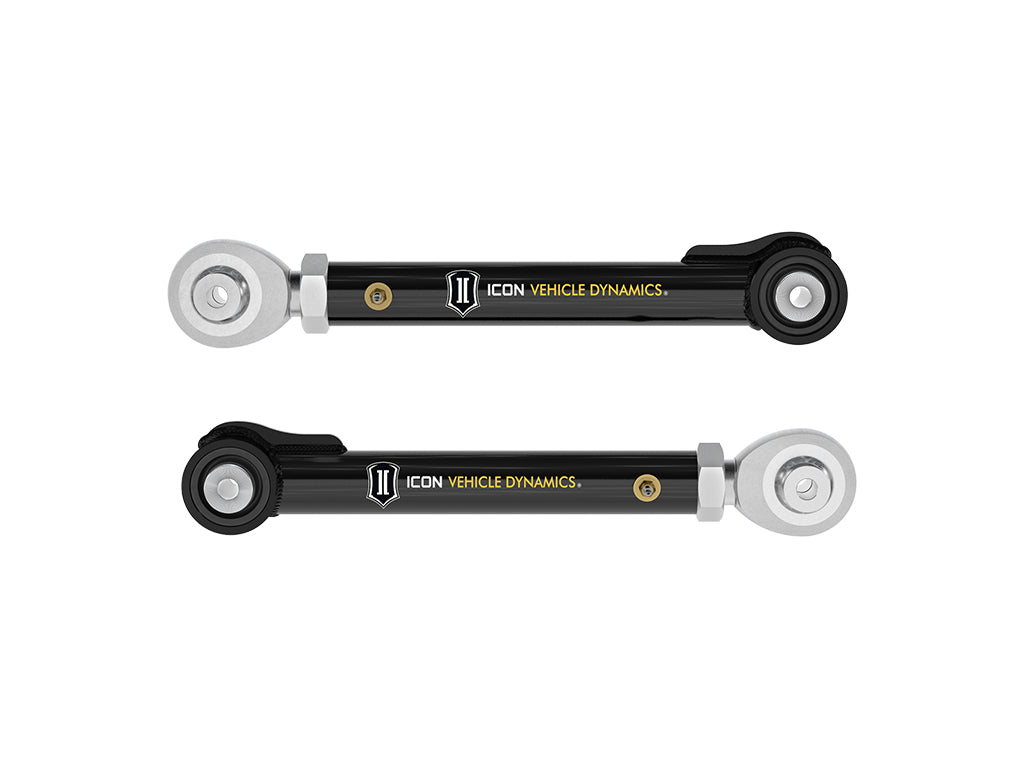

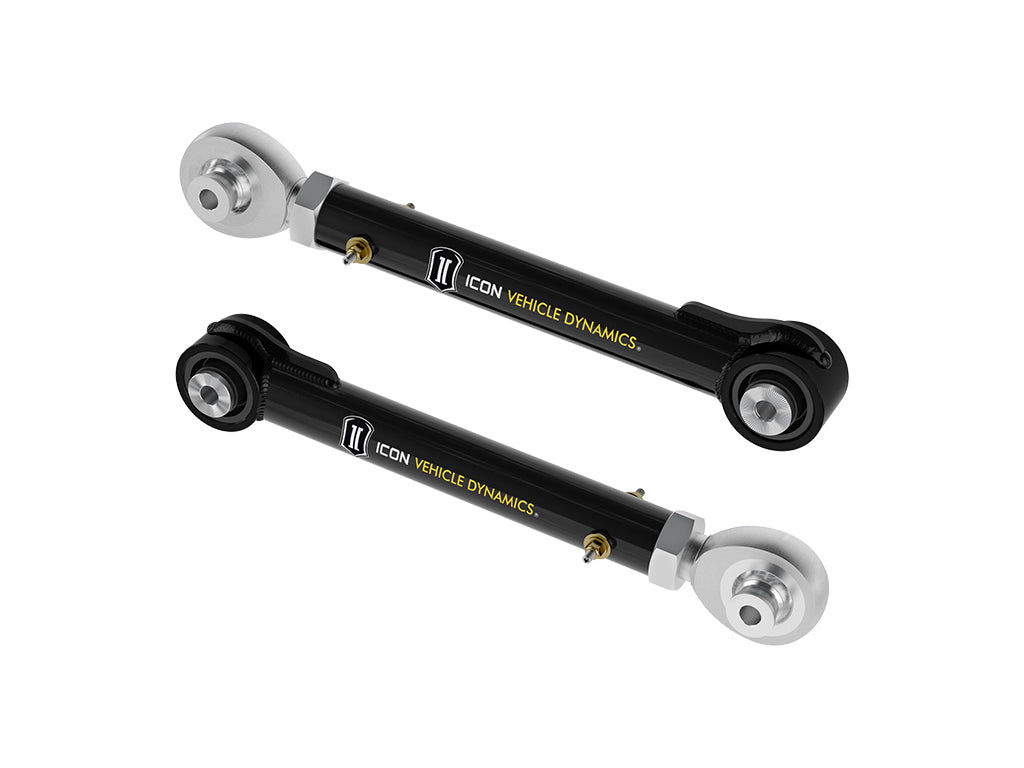

The ICON Tubular Rear Upper Link System helps free up rear axle movement on the 2022-2025 Toyota Tundra, 2023-2025 Toyota Sequoia, 2024-2025 Toyota Tacoma, 2024-2025 Toyota Land Cruiser 250 Series, 2025 Toyota 4Runner, and the 2024-2025 Lexus GX550 to allow for increased suspension travel and articulation. Formed using 1 ¾” x .313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish. These upper links are designed with massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.
APPLICATION NOTE #141: Tundra/Sequoia equipped with Automatic Leveling Headlights or Load-Leveling Rear Height Control Air Suspension part # 55153 is also required
APPLICATION NOTE #143: Compatible with ICON Tundra 6" Lift Performance Suspension System but may not be compatible with 6" lift kits from other manufacturers
APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
APPLICATION NOTE #199: Land Cruiser 250 Series and GX550 also require Sensor Bracket part number 55161
| Add-On Part | 55161 - 24-25 LC250/24-25 GX550 REAR UPPER LINK SENSOR BRACKET KIT |
| Add-On Part | 54003T - 24-25 LC250/24-25 GX550/25 4RUNNER TUBULAR REAR LOWER LINK KIT |
| Add-On Part | 54002T - 22-25 TUNDRA/23-24 SEQUOIA/24-25 TACOMA TUBULAR REAR LOWER LINK KIT |
| Add-On Part | 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT |
| Adjustable Control Arm | yes |
| Attachments Included | No |
| Ball Joint Mounting Type | Thread in |
| Bushing Color | Black |
| Bushing Color | Silver |
| Color | Black |
| End 1 Type | Bushing |
| End 2 Type | Rod End Bearing |
| Finish | Powdercoated |
| Material | DOM Steel |
| Quantity | Pair |
| Set | Yes |
| Suspension Type | Coil Spring |
