SKU: SKU: ICO48700

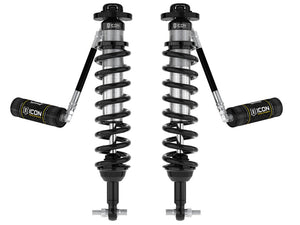

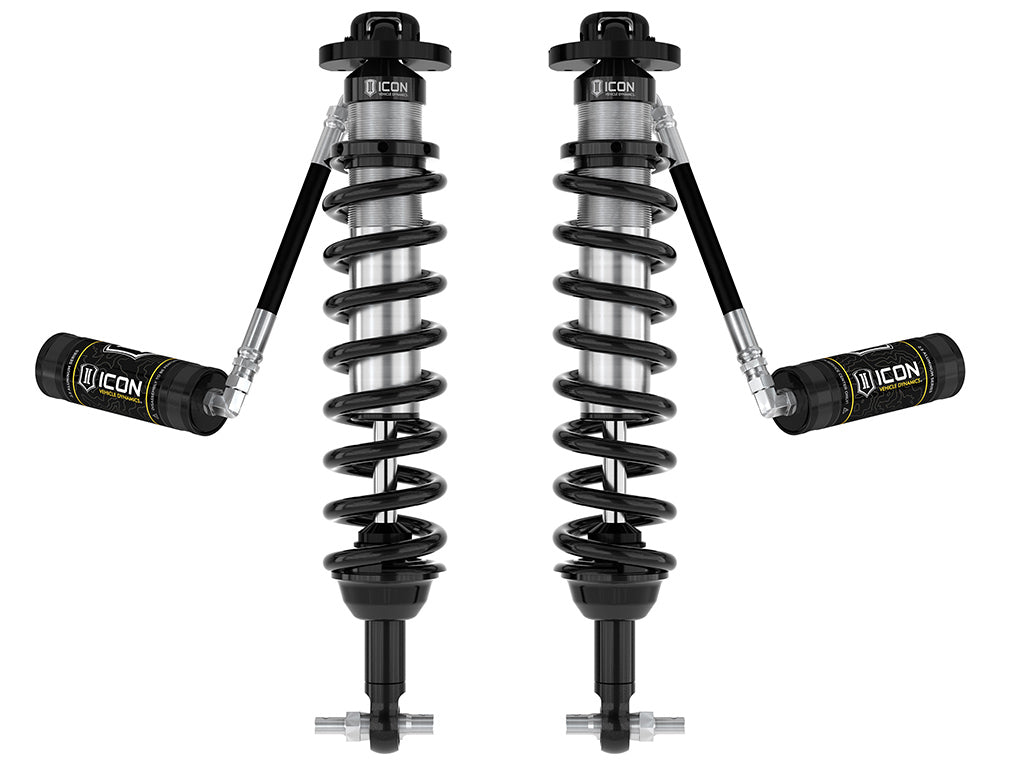

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.5 Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
OEM Wheels & Tires Fitment (With Sasquatch Package): Yes
OEM Wheels & Tires Fitment (Without Sasquatch Package): No
Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
APPLICATION NOTE #24: Factory UCA's Will Not Align Properly Past 2.5” Of Lift. Above 2.5” Of Lift An Aftermarket UCA Is Recommended.
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #132: When running 37" tires use up travel limiters part #611075 in the front
APPLICATION NOTE #138: Recommended crash bars part #42000 on Non-Sasquatch equipped vehicles when running 35" tires
APPLICATION NOTE #139: When running 37" tires crash bar removal may be required but is not recommended
TECH NOTE: Due to increased wheel travel and lift height provided by these coilovers, ICON upper control arms with Delta Joint Pro, part numbers 48400DJ or 48500DJ, are recommended. Other aftermarket front upper control arms may not be compatible and it is the duty of the installer to verify fitment. Failure to cycle suspension and check for ball joint bind issues may lead to component failure and/or injury.
TECH NOTE: Fitment testing done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
TECH NOTE: Bronco Everglades will have lift height range of 1.5-2.5" over stock
TECH NOTE: Not compatible with Bronco Raptor
| Lower Mount Type | BAR PIN |
| Material | Steel |
| Material | Aluminum |
| Maximum Lift | 4 IN |
| Minimum Lift | 2 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming) |
| Recommended Aftermarket Tires | (Without Sasquatch Package): 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications) |
| Recommended Aftermarket Wheels | (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset |
| Recommended Aftermarket Wheels | (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Flat on Bar Pin |
| Spring Rate Type | Linear |
| Travel Length | 6.39 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Add-On Part | 611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL |
| Add-On Part | 48400DJ - 21-23 BRONCO TUBULAR UCA DJ PRO KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 48500DJ - 21-23 BRONCO BILLET UCA DJ PRO KIT |
| Add-On Part | 42000 - 21-23 BRONCO HIGH CLEARANCE CRASH BAR KIT |
| Add-On Part | 45212 - 21-23 BRONCO XD TIE ROD KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Adjustable Damping | NO |
| Body Diameter | 2.5 IN |
| Coil Over Springs Included | Yes |
| Compressed Length | 18.14 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Damping Type | Oil |
| Extended Length | 24.53 IN |
| Gas Charged | Yes |
⚠️ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
