ICON Part # ICO58692

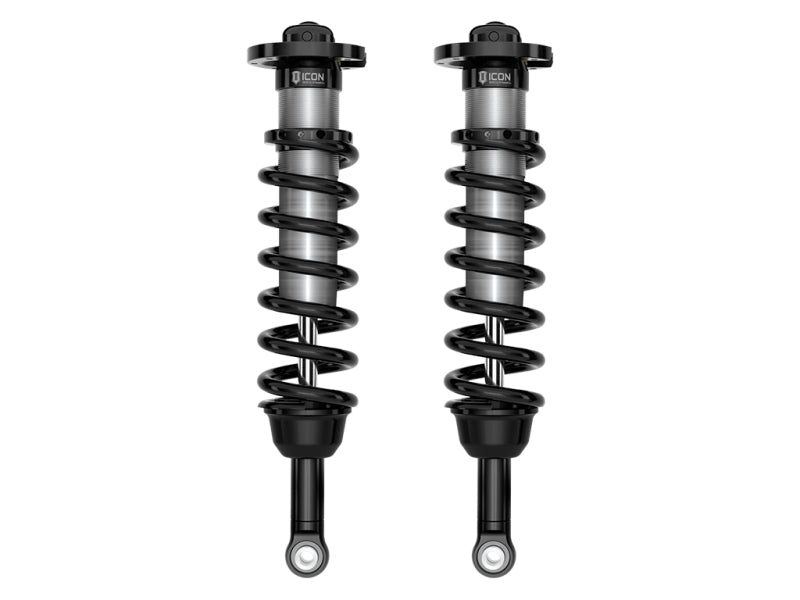

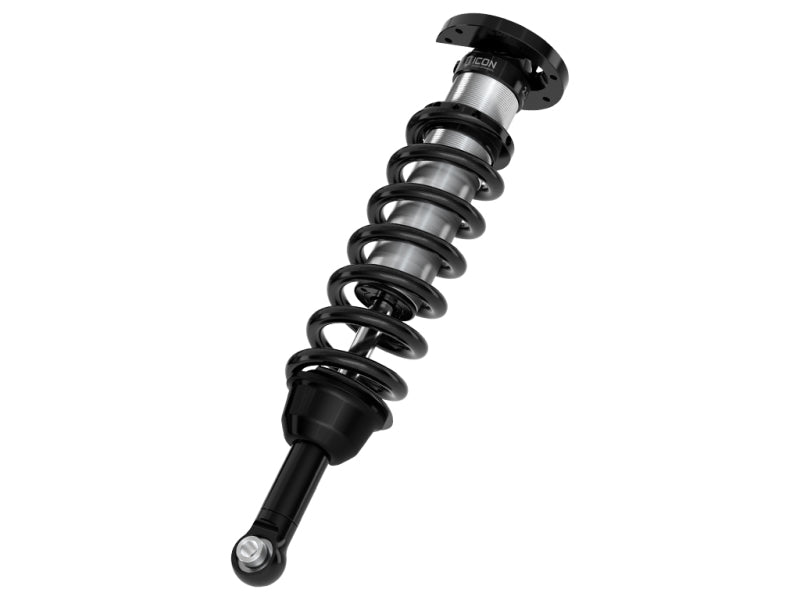

ICON 2025 Toyota 4Runner 4WD 1.25-3in Front 2.5 VS IR Coilover Kit - 58692

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2025 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.

Installation Instructions

  • Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
  • Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
  • Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
  • 2.5" diameter shock bodies with internal reservoirs for consistent performance
  • ICON engineered coil springs

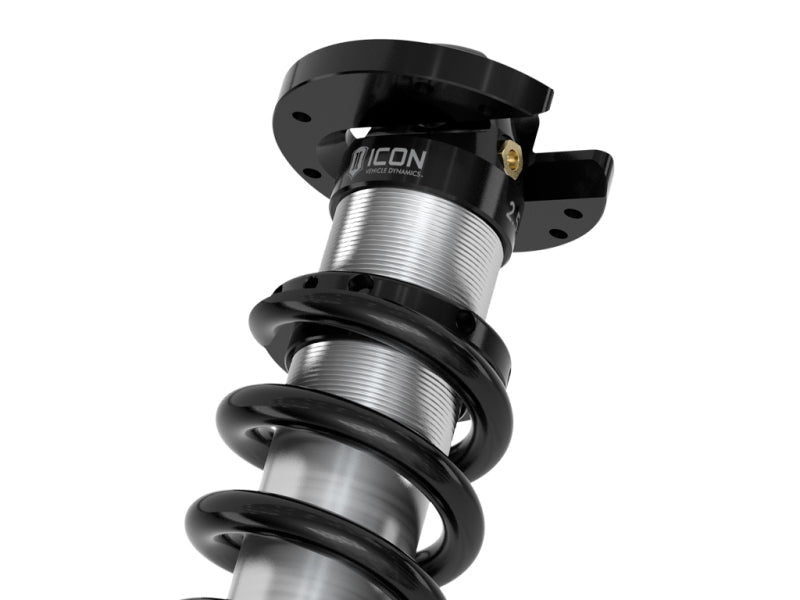

  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable

  • Cylinder Material: Steel
  • Cylinder Finish: Cadmium Plated
  • Damping Type: Oil
  • Coil Over Springs Included: Yes
  • Compressed Length: 19.2 in.
  • Cylinder Color: Silver
  • Extended Length: 24.85 in.
  • Front Spring Rate: 550 lb/in
  • Gas Charged: Yes
  • Includes Bump Stop: Yes
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Eyelet
  • Maximum Lift: 3 in.
  • Adjustable Ride Height: Yes
  • Assembled: Yes
  • Body Diameter: 2.5 in.
  • Maximum Ride Height Raising Distance: 3 in.
  • OEM Wheels & Tires Fitment: Yes
  • Shaft Diameter: 0.875 in.
  • Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point: Center of Eyelet
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate Type: Linear
  • Travel Length: 5.65 in.
  • Upper Mount Type: Mounting Plate
  • Valving Type: Digressive
