SKU: SKU: ICO58691

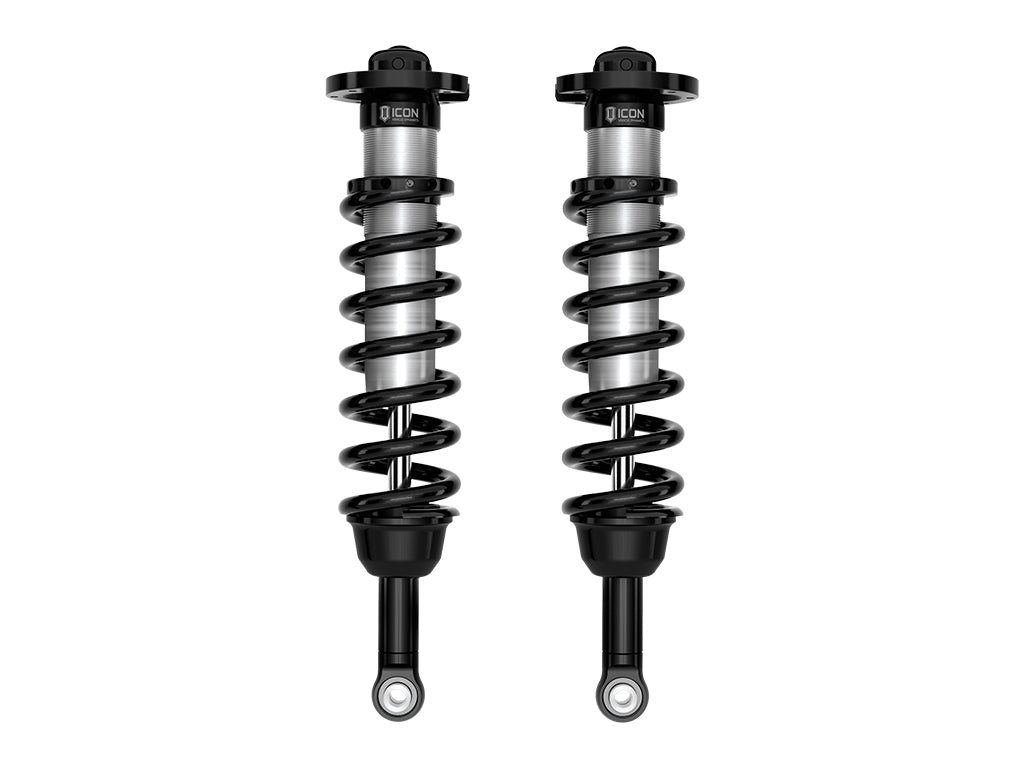

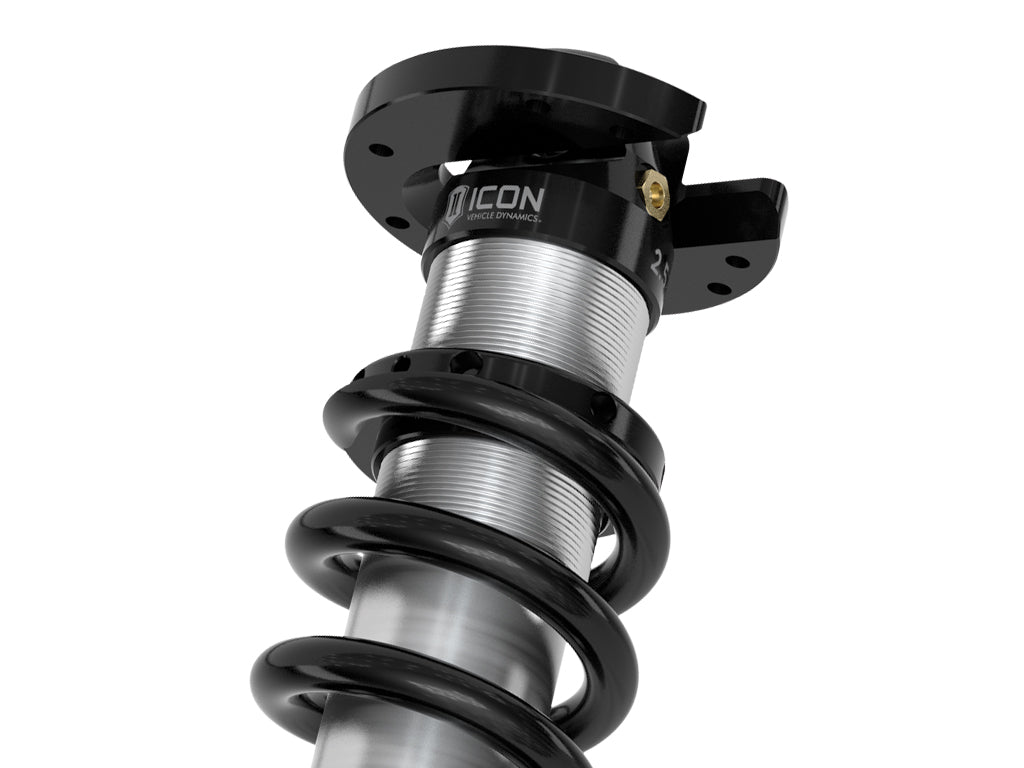

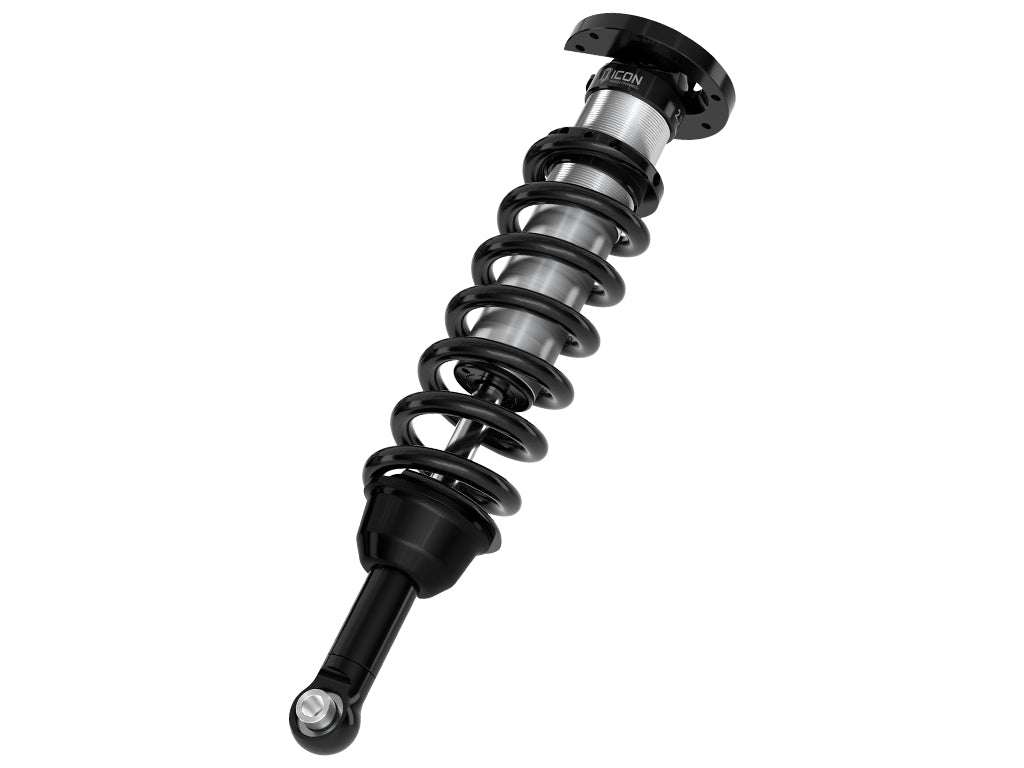

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2024-2025 Toyota Land Cruiser 250 Series. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Land Cruiser 250 Series.
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #169: 4WD models require front differential drop part # 55160
APPLICATION NOTE #202: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 55160 - 24-25 TACOMA 4WD/24-25 LC250/25 T4R 4WD FRONT DIFF DROP KIT |
| Add-On Part | 58552GDJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT GOLD ANO |
| Add-On Part | 58552DJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 58452DJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R TUBULAR UCA DJ PRO KIT |
| Adjustable Damping | No |
| Body Diameter | 2.5 IN |
| Coil Over Springs Included | Yes |
| Compressed Length | 19.2 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Damping Type | Oil |
| Extended Length | 24.85 IN |
| Gas Charged | Yes |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Material | Aluminum |
| Maximum Lift | 3 IN |
| Minimum Lift | 1.25 IN |
| OEM Wheels & Tires Fitment | Yes |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Spring Rate Type | Linear |
| Travel Length | 5.65 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
