ICON 2017+ Ford F-250/F-350 2.5in Stage 2 Suspension System - K62512

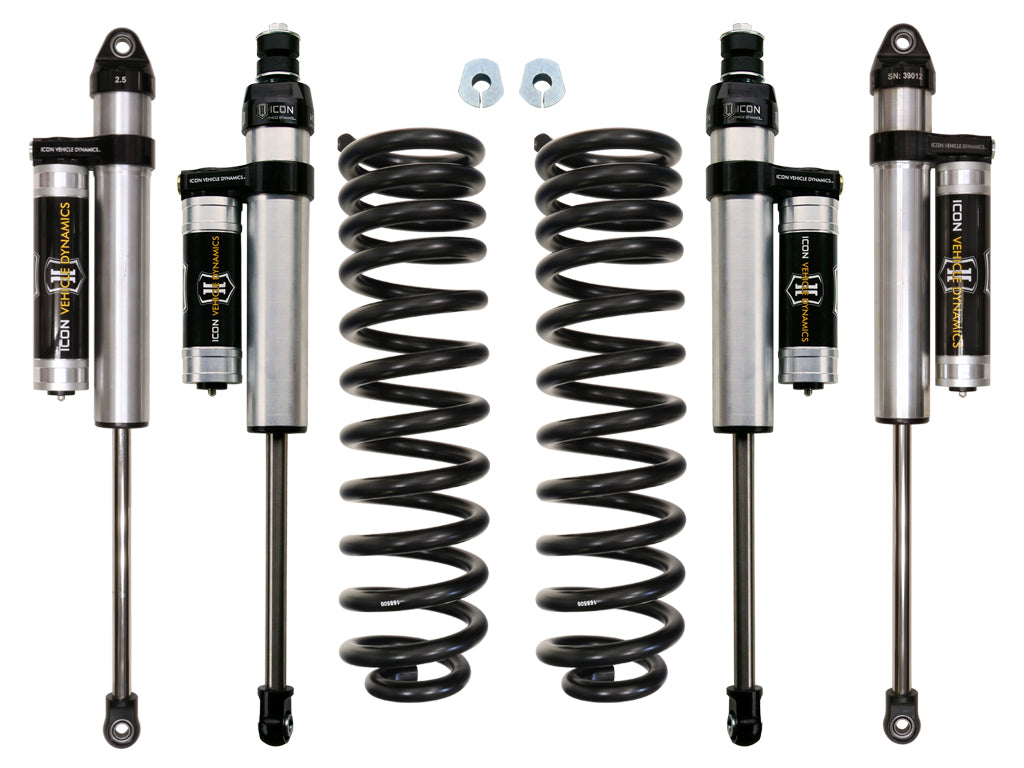

This ICON Vehicle Dynamics 2.5” suspension system is a great way to level your 4WD 2017-2019 Ford F250/350 Super Duty while drastically improving ride quality and performance. The Stage 2 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. ICON's Stage 2 System is comprised of dual rate coil springs, alignment cams, and ICON 2.5 Aluminum Series front and rear piggyback reservoir shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Features

• Fits 2017-2019 F250 / F350 4WD applications
• Approximately 25% increased front wheel travel over stock
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Shocks are fully rebuildable and revalvable
• Corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
• FK Rod End bearings provide extended longevity and minimal deflection
• Lifetime guarantee against coil spring breakage or sag

OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY

APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE

APPLICATION NOTE #119: RARE CASES REQUIRE A 2.6 DEGREE ALIGNMENT CAM ON ONE SIDE OF VEHICLE FOR PROPER CASTER SPLIT

TECH NOTE: Compatible with 4WD models only

TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)

TECH NOTE: Not compatible with F-350 Cab & Chassis models

TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry

TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock

Specifications

Documents

• I37705P_REVB.pdf
• I62510_REVC.pdf
• I67700P_REVB.pdf
