ICON 2016+ Nissan Titan XD 3in Stage 1 Suspension System - K83031

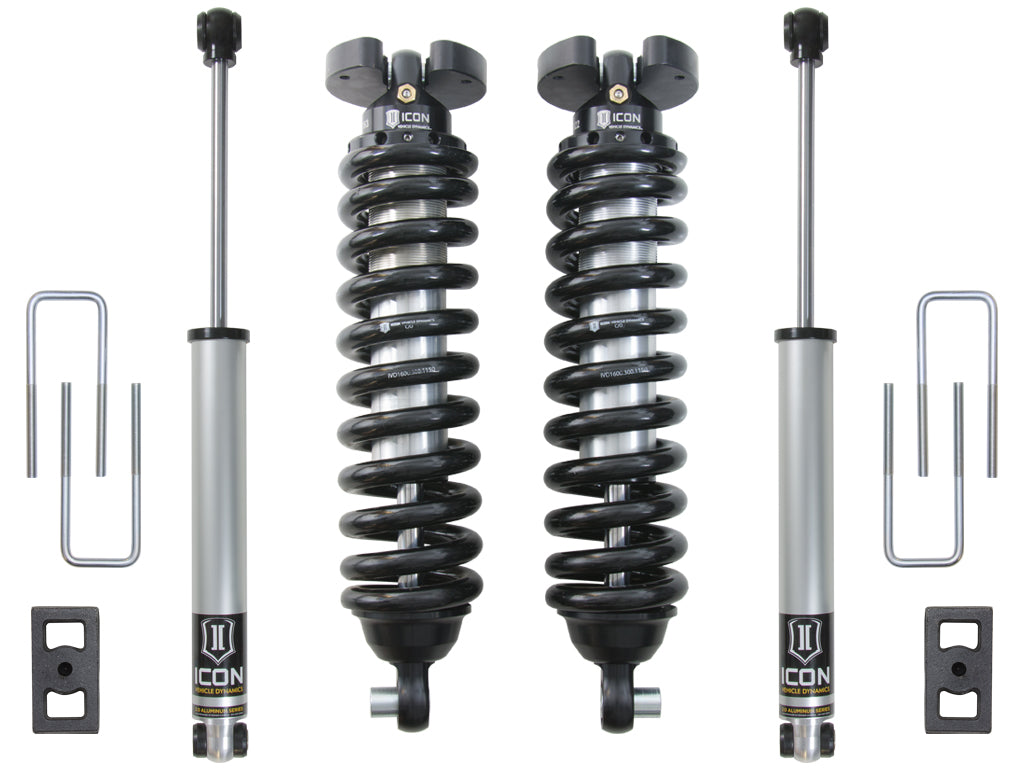

The 2016-2023 Nissan Titan XD is a truck with a heavy-duty build that’s aimed to blend the lines between ½ ton efficiency and ¾ ton capability. With this in mind, ICON Vehicle Dynamics has developed a complete suspension system designed from the ground up for improved performance on and off-road, increased wheel travel over stock, and the best ride quality on the market. The Stage 1 system includes ICON 2.5 Series coilovers, 2.0 Aluminum Series rear shocks, rear lift blocks, and u-bolts. These products feature high-quality components such as ICON-designed coil springs, precision machined internals, FK Rod End bearings, and a vehicle-specific shock tune that translates to a ride quality that is second to none. The ICON Vehicle Dynamics 2016-2023 Nissan Titan XD Stage 1 suspension system is an excellent choice for drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features

• Fits 2WD / 4WD applications
• Increased ride quality over stock with no change in towing capacity
• Approximately 32% increased front wheel travel over stock
• Adjustable coilovers provide 2.5-3" of lift height
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
• FK Rod End bearings for extended longevity and minimal deflection
• 100% bolt-on system

APPLICATION NOTE #115: LIFT HEIGHTS BASED ON 4WD CREW CAB DIESEL

Ships in multiple boxes

OEM Wheels & Tires Fitment: Yes

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset

Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE

Specifications

Documents

• I86535_REVA.pdf
• I88700_REVA.pdf
