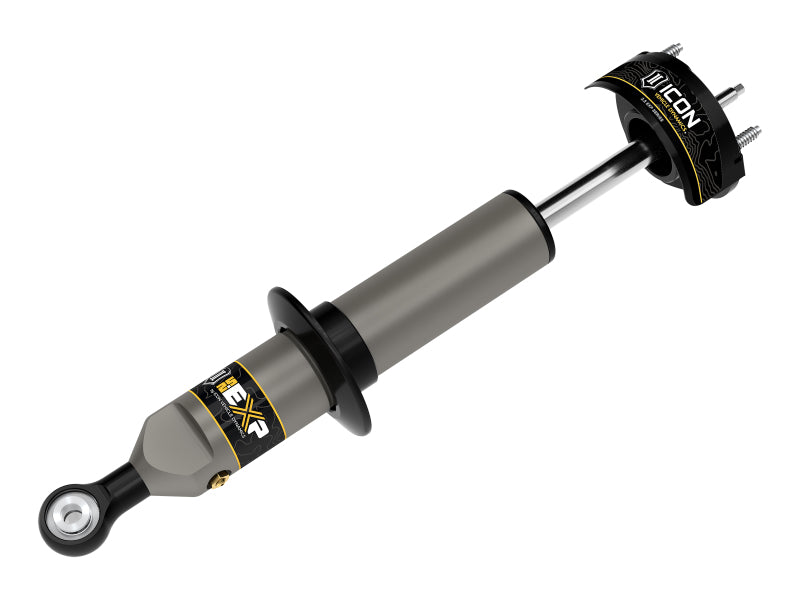

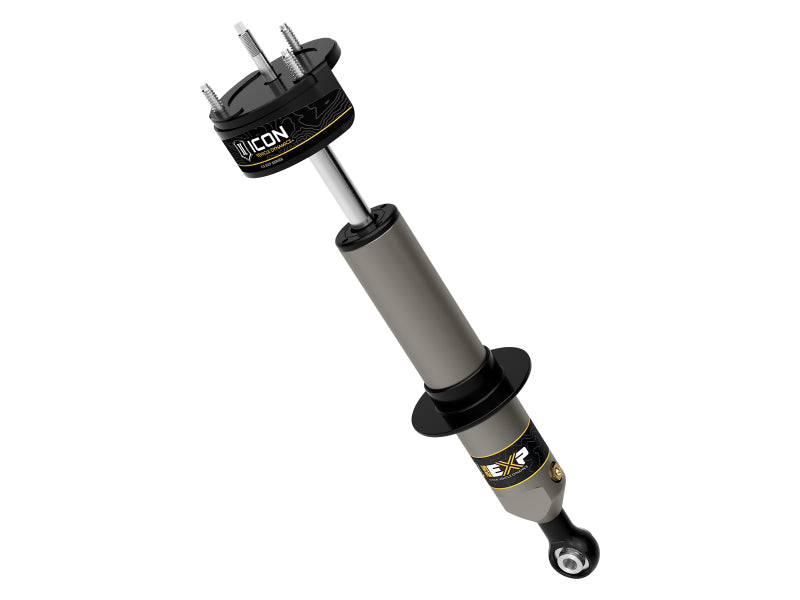

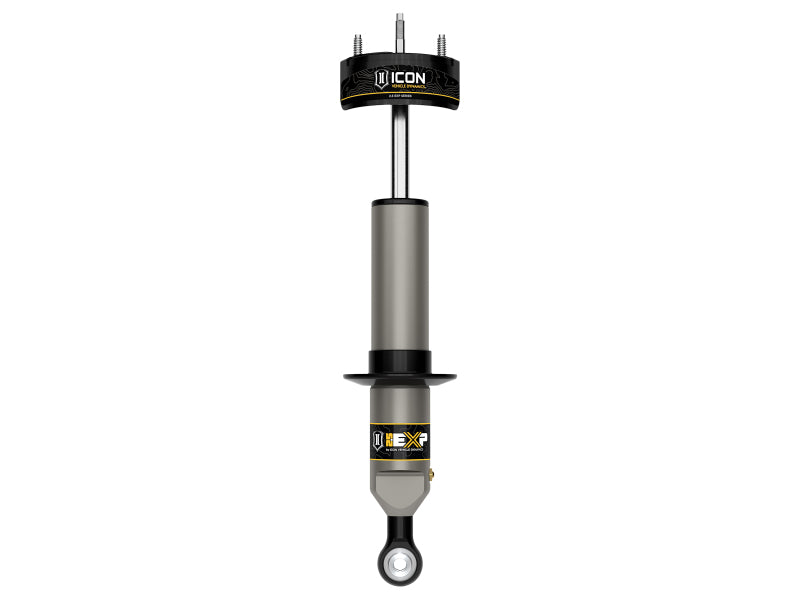

EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. 2005-2023 Tacoma EXP shocks mount in a shaft-up orientation and include the upper shock mount and spring seat.
The 6061-billet aluminum coil spring seat is CNC machined to fit the Tacoma's OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0" to 2” of lift over stock.
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tacoma in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Minor fender trimming may be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO
TECH NOTE: Not compatible with 2005-2015 rear wheel drive Tacomas with 5 wheel lug studs
TECH NOTE: Requires ICON sway bar relocation bracket part # 611030
TECH NOTE: Not compatible with Tacoma Trail or Tacoma Trail Special Edition
| Material | Aluminum |
| Material | Steel |
| Maximum Lift | 2 IN |
| Minimum Lift | 0 IN |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Center of Eyelet |
| Shock Absorber Rod End Measuring Point | Shoulder of Stem |
| Upper Mount Type | Stem |
| Add-On Part | 611030 - 05-23 TACO/07-09 FJ/03-09 T4R SWAYBAR RELOCATION KIT |
| Add-On Part | 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT |
| Adjustable Damping | NO |
| Assembled | No |
| Body Diameter | 2.5 IN |
| Coil Over Springs Included | No |
| Cylinder Finish | Hard Anodized |
| Damping Type | Oil |
| Gas Charged | Yes |
