SKU: SKU: ICOK67301

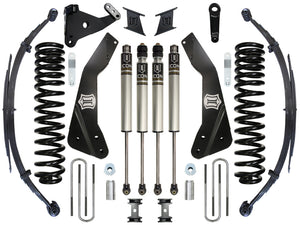

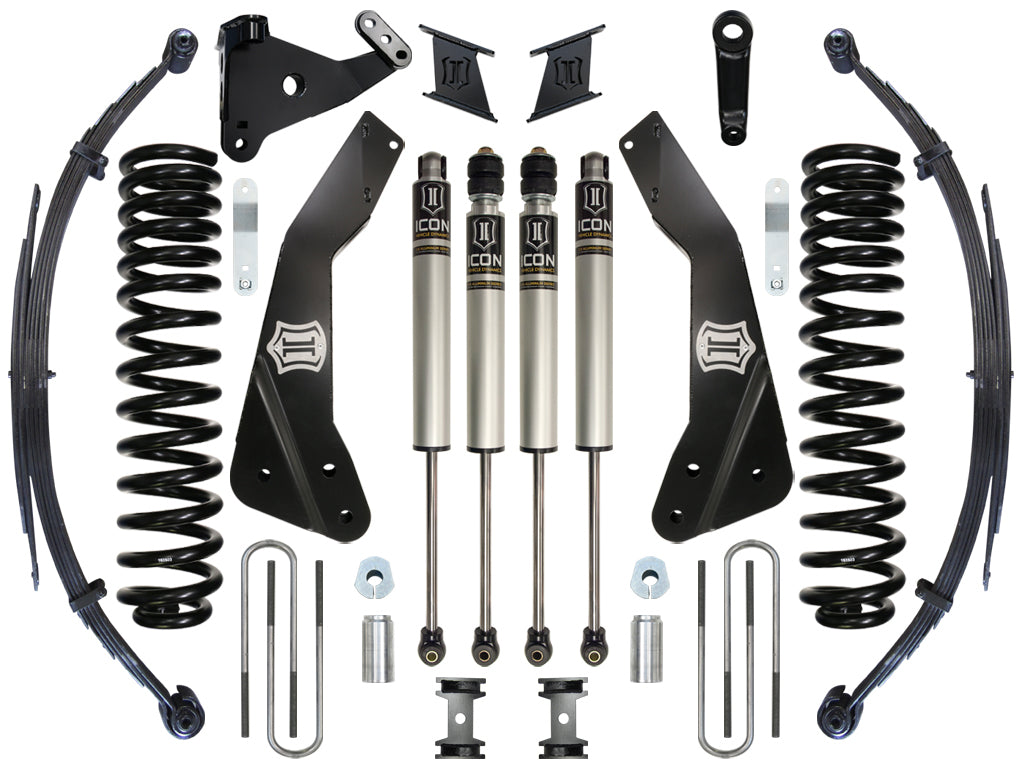

ICON Vehicle Dynamics is an industry leader when it comes to Ford Super Duty performance. Our engineers have spent countless hours under these trucks and behind the wheel developing some of the most refined suspension systems available. Increasing wheel travel and ride comfort is standard operating procedure at ICON, but our engineers aimed high to produce a suspension solution that also maintained the Super Duty’s towing capacity. ICON’s 7” Suspension System for the 2011-2016 Super Duty yields enough lift to clear 37” tires while providing excellent ride characteristics across a wide variety of terrain on and off-road. Each component of this suspension system has been specifically engineered to work in union with other ICON parts to extract maximum performance out of the vehicle. Our Stage 2 System is comprised of 7” lift dual rate coil springs, fabricated radius arm drop mounts with brushed stainless badges, track bar drop bracket, bump stop extensions, sway bar links, a forged pitman arm, brake line brackets, rear 5" lift progressive rate leaf springs w/ U-bolts, and 2.0 Aluminum Series smooth body front & rear shocks.
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
APPLICATION NOTE #57: RETAINS FACTORY BLOCK FOR TRUCK TO SIT LEVEL WITH FRONT OF TRUCK
Ships in multiple boxes
| Dual Rate Coil Springs | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
