ICON 05-07 Ford F-250/F-350 7in Stage 4 Suspension System - K67103

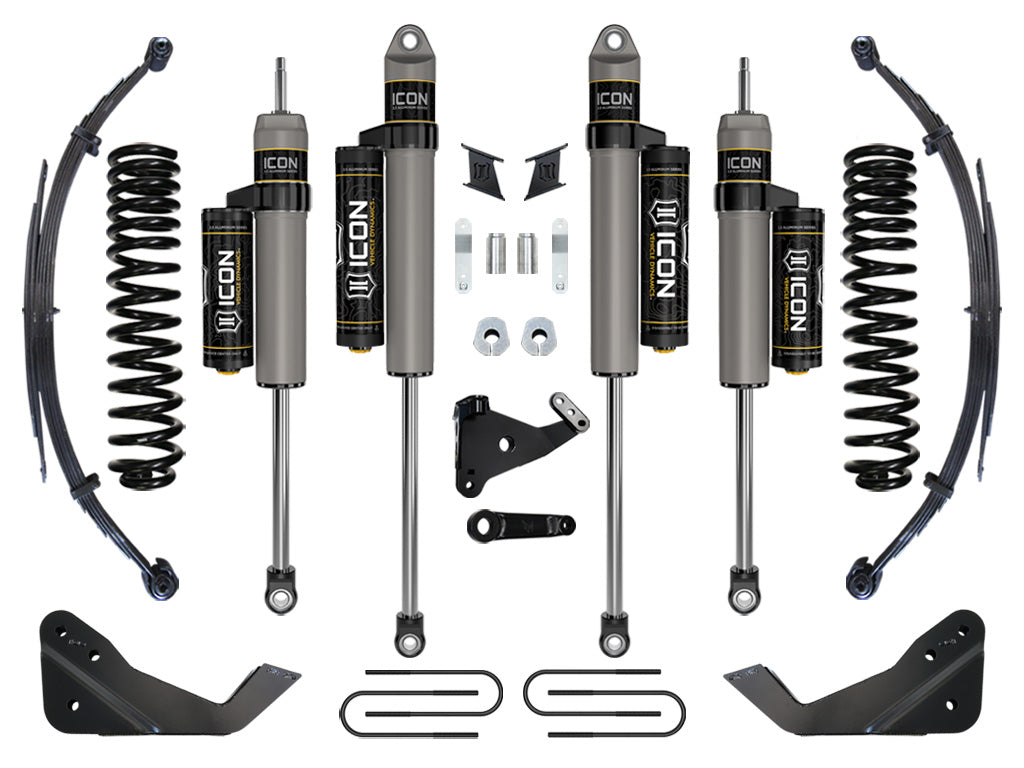

ICON’s 7” Suspension System for the 2005-2007 Ford Super Duty offers unparalleled performance and ride quality while giving the vehicle clearance for 38” tall tires. This Stage 4 system takes performance and ride quality to a whole new level. The Stage 4 system comes complete with ICON 2.5 Aluminum Series piggyback shocks, Dual-Rate Coil Springs, Drop Pitman Arm, Pan Rod Bracket, Brake Line Brackets, Radius Arm Drop Down Brackets, ICON's progressive 5" rear leaf springs, and U-bolts.

Features

• 50% increase in wheel travel
• Less body-roll than stock truck
• State of the art dual-rate coil spring
• Lifetime guarantee that coil springs won’t sag
• Clears 37" Tall Tires
• No change in towing capacity
• No driveshaft modifications needed
• 100% Bolt-on system - No drilling, cutting or welding necessary for install
• Vehicle Specific tuned 2.5 Aluminum Series Piggyback Reservoir shocks for incredible ride quality

OEM Wheels & Tires Fitment: Yes

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY

APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION

APPLICATION NOTE #28: Pinch Weld On ‘05-’10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware

APPLICATION NOTE #29: 7” Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams. Caster Can Be Adjusted By The Lower Link Arms

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE

APPLICATION NOTE #57: RETAINS FACTORY BLOCK FOR TRUCK TO SIT LEVEL WITH FRONT OF TRUCK

Ships in multiple boxes

Specifications

Documents

• I37701P_REVB.pdf
• I62530_REVB.pdf
• I64040_REVA.pdf
• I67010_REVA.pdf
