SKU: SKU: HKS31021-AH005
LEGAMAX Sports
Vehicle: CIVIC TYPE R
Application
Specifications

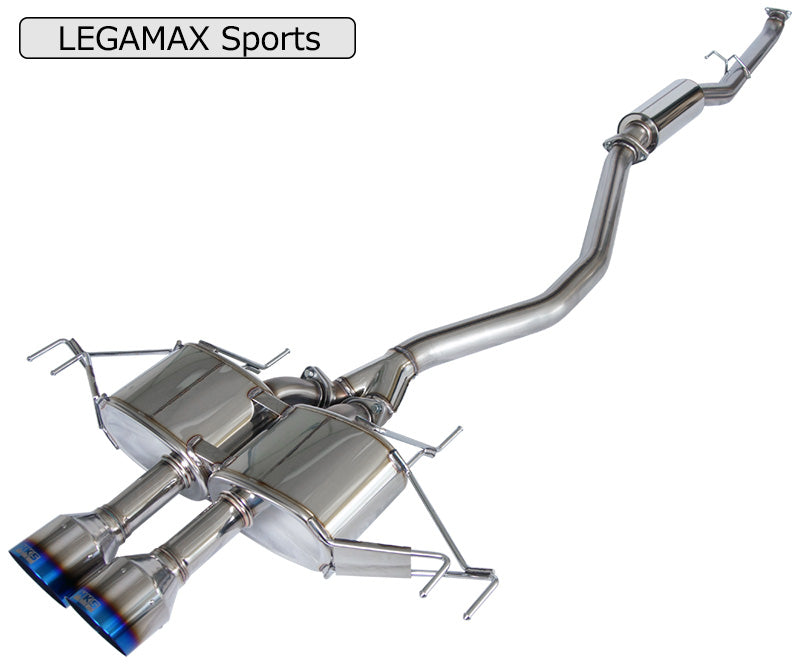

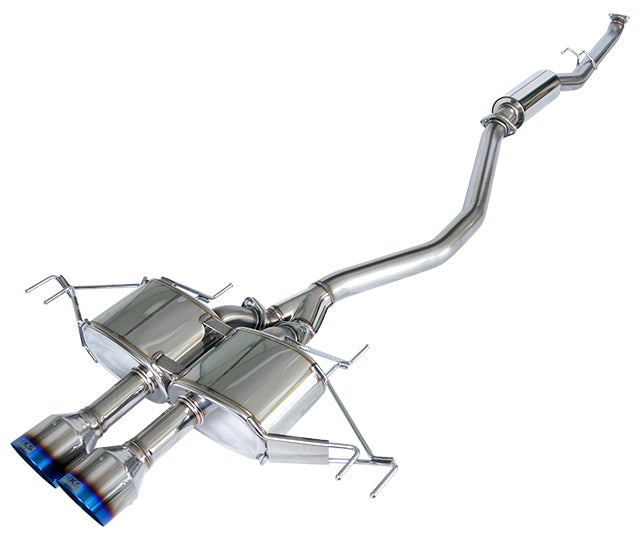

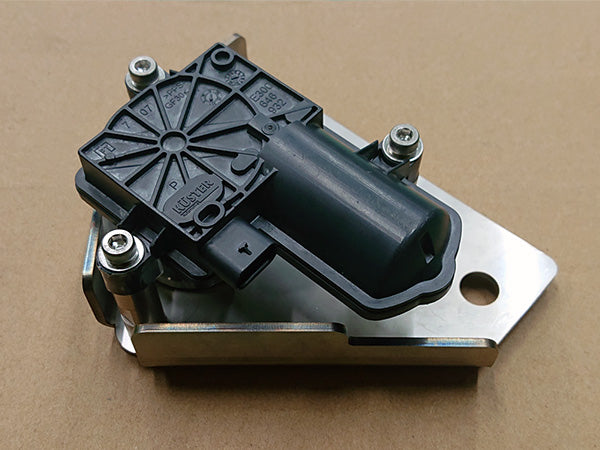

CIVIC TYPE R 6BA-FL5 Revolutionary Exhaust System Unleashes Peak Performance While Slashing Pressure Turbocharge Your Ride Unlock -30% Exhaust Pressure with Sleek φ75 Full Straight Design and Φ119 Titanium Tail with HKS logo. Rev Up the Thrill Enjoy a Crystal-Clear Sporty Sound Experience with Innovative Valveless Design and Cabin Comfort. Cert. No. JQR30233117 Vehicle CIVIC TYPE R Model FL5 Engine K20C Model Year 22/09 - Shape of muffler Ti (Titan) (LEGAMAX Sports) Main material S3/S4L Diameter of tip 119 Diameter of center pipe 74.7 → 60.5 × 2 (*1) Close noise level Stock 84 HKS 93 About road clearance(*2) Clearance 125mm Portion of the kit Factory front under panel Remarks Product Weight 18.5kg Remarks A dedicated actuator for factory valve motor included
Features

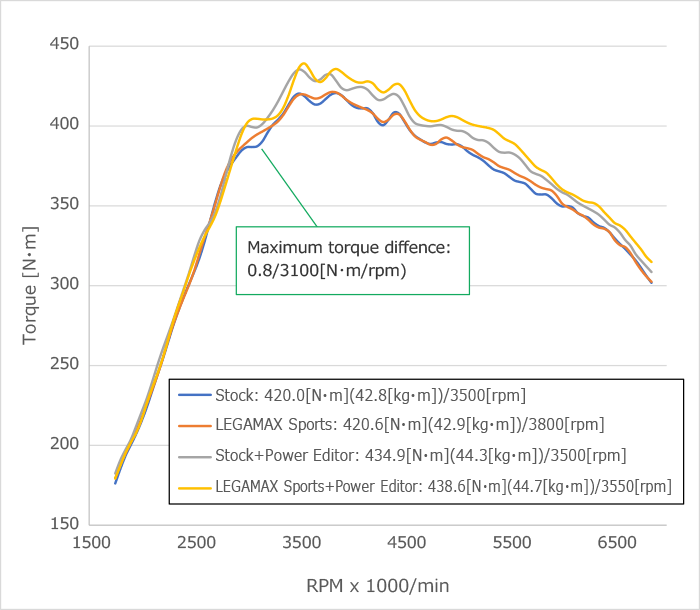

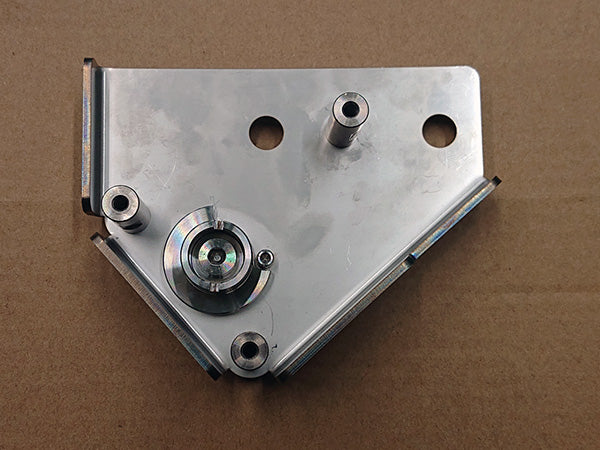

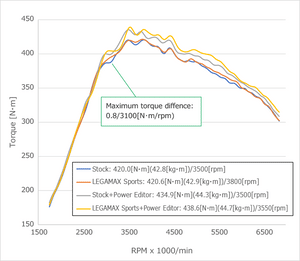

The stock ECU manages output based on torque, so just changing the exhaust alone will limit the output to the stock. When combined with the Power Editor, the output becomes as both graph. Stock: 250kw, 434.9 N.m, and with the LMS: 252kw, 438.6 N.m. It can further enhance the output by increasing the boost. *Power Editor: 42018-AH013 (for FL5) The exhaust pressure is 30% lower compared to stock, and the exhaust efficiency is increased. Therefore, by using the Power Editor and tune the ECU, you can expect even more power enhancement By eliminating the valves,
