SKU: SKU: HKS31021-AT005
LEGAMAX TRAILMASTER
Vehicle: HILUX
Application
Specifications

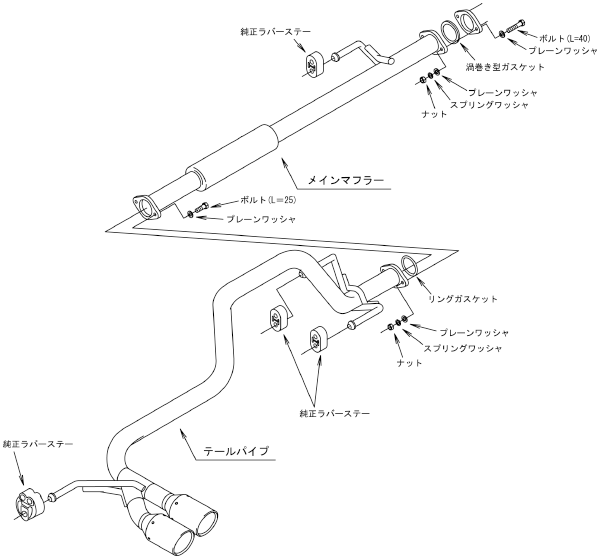

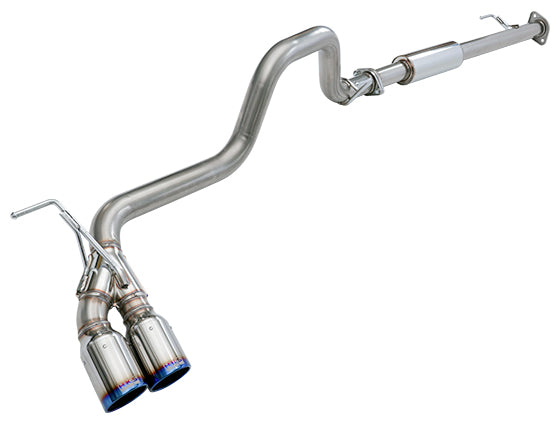

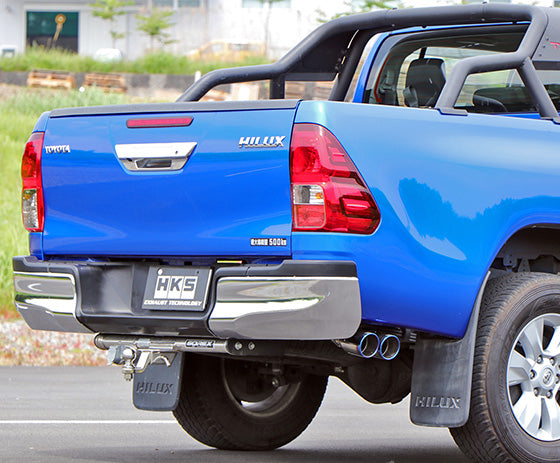

HILUX QDF-GUN125 Side type exhaust system By adopting the side layout, it can be installed in the vehicle equipped with a towing hitch, giving it a wild look. You can use the truck bed for loading and unloading the load even though installing the product. The sound quality and volume are good for daily use, even having a wild product appearance. Cert. No. JQR10192072 Vehicle HILUX Model GUN125 Engine 2GD-FTV Model Year 17/09 - 20/07 Shape of muffler KC-1 (Titan) (LEGAMAX TRAILMASTER) Main material S304 Diameter of tip 90 Ti x 2 Diameter of center pipe 65→60.5 × 2 (*1) Close noise level Stock 70 HKS 71 About road clearance(*2) Clearance 300mm Portion of the kit Stock CAT Remarks No change in clearance due to installation of this product. Product Weight 9kg Remarks Make to order item Compatible with G, Z grade. A vehicle with a towing hitch other than those made by SOREX is not confirmed. Not compatible with 3DF-GUN125 made after Aug 2020 due to flange position difference. About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However,
Source: HKS Japan · Detail page
