SKU: SKU: HKS31021-BH003

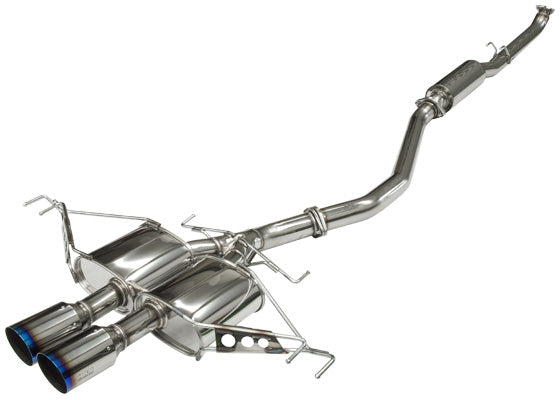

LEGAMAX Premium
Vehicle: CIVIC TYPE R
Application
Specifications
CIVIC TYPE R DBA-, 6BA-FK8 Overwhelming Low Exhaust Pressure - 50％ of Original Pressure φ75 large diameter pipe and full straight structure reduce the exhaust pressure to 50% of the stock. This significant exhaust pressure reduction enables the turbine to run smoothly from the low RPM range, which results in the engine output increase in an entire speed range. Also, this pressure reduction effect is enhanced as the tuning level becomes more advanced; the engine output can be increased to 540ps without engine power-loss. This product is EU Certified fully legal exhaust system. Cert. No. JQR30183001 K20Ct Vehicle CIVIC TYPE R Model FK8 Engine K20C Model Year 17/09 - 22/08 Shape of muffler (LEGAMAX Premium) Main material S304 Diameter of tip 97 Ti Diameter of center pipe 75-60 x 2 (*1) Close noise level Stock 82 *HKS 88 *About road clearance(*2) Clearance 110mm Portion of the kit Mid Pipe Silencer Remarks Product Weight Remarks Compatible with 6BA-FK8. About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understan
Source: HKS Japan · Detail page
