SKU: SKU: HKS80280-AA001
Touring
Vehicle: Model
Application
Specifications
CORVETTE -Y2XC- Adjustable spring kit that uses stock suspension system and adds vehicle height adjustment function
Features

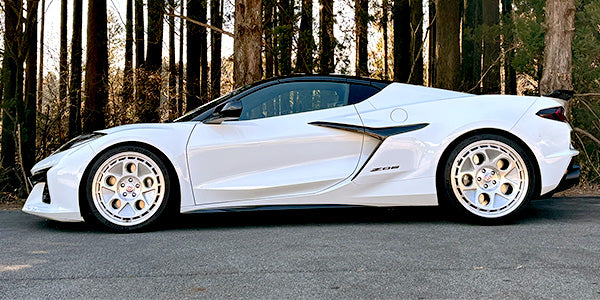

The C8 Corvette boasts a design that’s both sporty and refined. This model features a lowered stance that enhances its sleek silhouette, offering a more aggressive look compared to the stock version’s high-riding feel. With the HIPERMAX Touring suspension, you can achieve a lower ride height without compromising the factory electronic damping system or front lift functionality. The front ride height is adjustable via spacers, giving you three options: -10mm, -20mm, or -30mm from the stock height. The rear retains the factory ride height adjustment feature. Backed by a 2-year or 40,000km warranty, this setup is supported by HKS’ trusted quality control, carried out entirely in-house at their domestic facility—a level of reliability only HKS can offer.

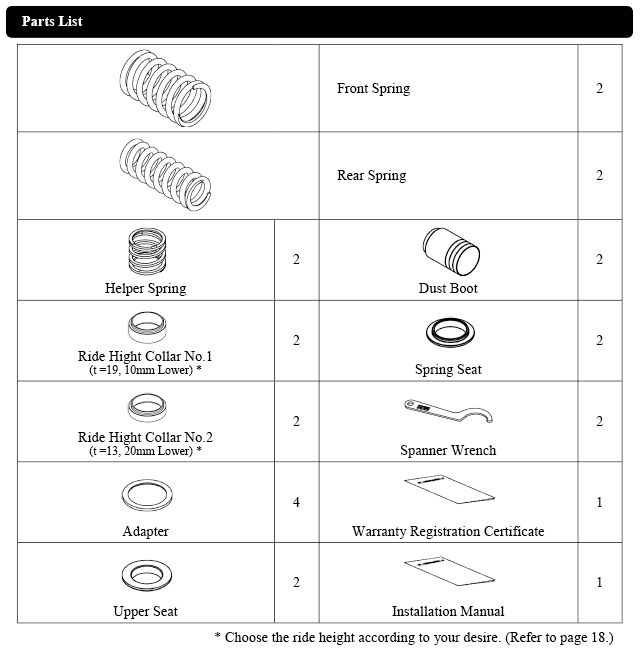

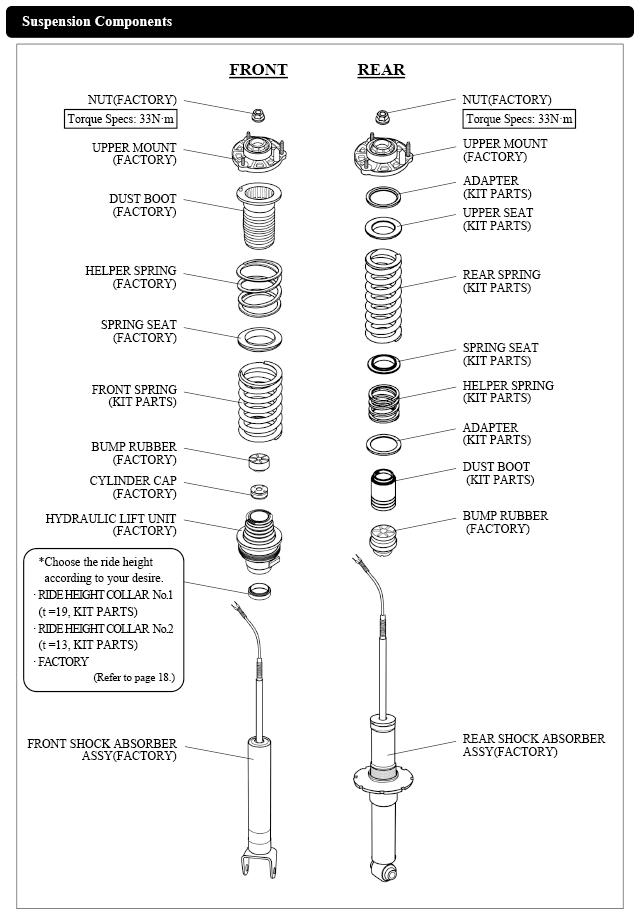

Set contents and configuration diagram
Suspension
Setting Table Default During Testing Maximum upper limit to maximum lower limit *3 Upper limit to lower limit of drivable range *4 FRONT Vehicle Height *1 691 ← 691~671 691~671 From Stock Height -10 ← -10~-30 -10~-30 REAR Vehicle Height *1 722 ← 727~706 727~709 From Stock Height -5 ← 0~-21 0~-18 *1. Height from the road surface to the fender arch. *2. The default vehicle height is a reference measurement data based on
