SKU: SKU: HKS80310-AT005
Application
Specifications

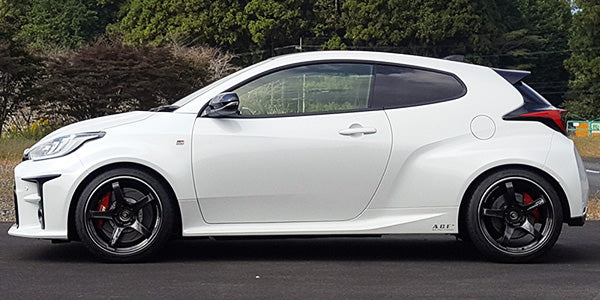

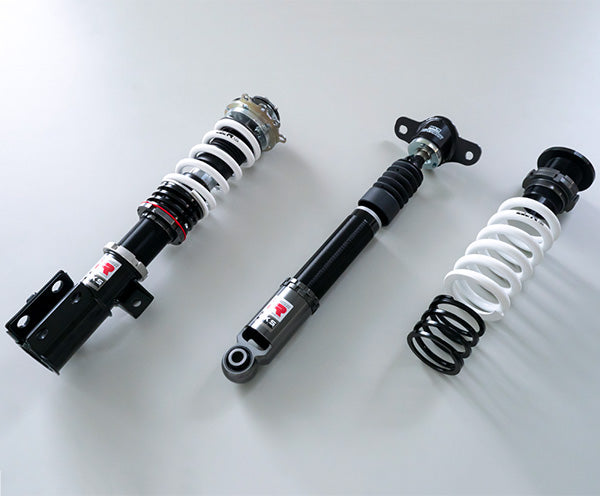

GR YARIS GXPA16 The fun to drive at will and the balance can be adapted from circuit to winding road. Reised Driving-Comfort, "Ultimate All-Rounder" Application Engine G16E-GTS Model Year 20/09 - 24/03 Remarks Cultivated with RZ high performance 1st edition. This is designed for 4WD vehicle. Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Spherical bearing Spherical bearing Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Separated Spring rate change at factory Possible Possible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) 〇 (19.8) 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 657 639 682 ～ 557 682 ～ 610 Against stock -26 -44 -1 ～ -126 -1 ～ -73 REAR Ride height *1 657 639 680 ～ 600 680 ～ 600 Against stock -25 -43 -2 ～ -82 -2 ～ -82 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the produc
Source: HKS Japan · Detail page
