SKU: SKU: HKS80260-AF001
Vehicle: Model
Application
Specifications
WRX STI VAB ~ For Obsession with High Quality ~ Integration of quality over cost principles of turning parts and benefits and compatibility gained from OEM design. for WRX STI (VAB) ＜Product Basic Structure＞
Single

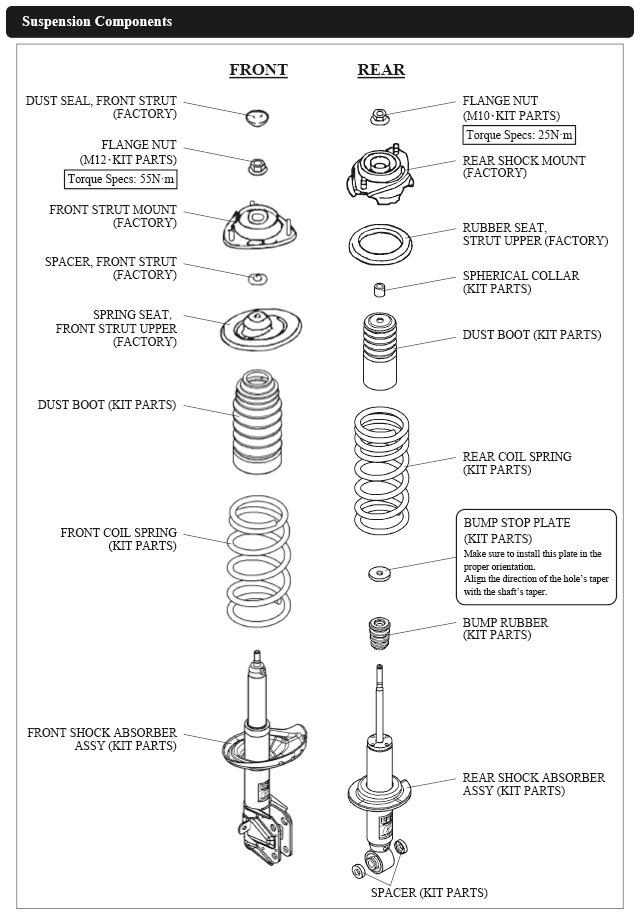

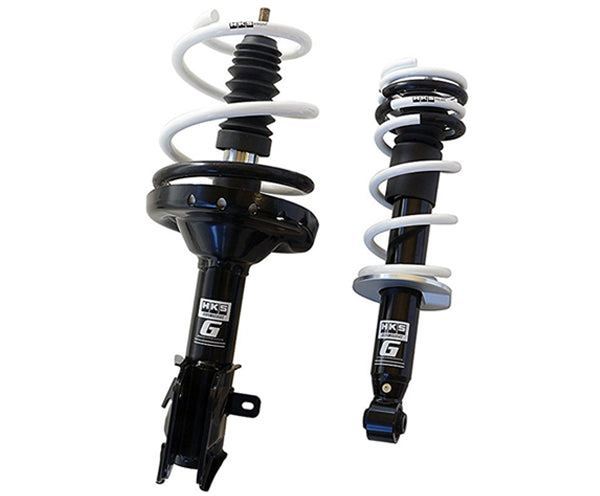

Tube Damper Assembly
Special
Low-down Style Spring *The stock upper mounts are used.
Features
Utilizing the stock suspension structure for Hipermax G series provides a better durability and ride quality than its original even after lowering vehicle’s height. The front inverted mono tube dampers of the stock VAB design delivers high rigidity and reliable handling performance. Handling performance and ride comfort are balanced in a high dimension. Setting was performed to avoid excessive sportiness for better ride quality. The vehicle height is set to a modest level for "mature" tuning without being too assertive.
Kit
Parts Vehicle Model Engine Model Year Series Full Kit Spring Rate F/R Free Height Damping Force Piston Speed 0.1m/sec Damping Force N Vehicle Height (Highest - Lowest) Code No. Manual Remarks F: Rebound/Compression R: Rebound/Compression WRX STI VAB EJ20(TURBO) 14/08 -20/04 G F=53(5.4)/R=62(6.3) Special/Special 824/275 363/216 -13 -10 80260-AF001 Make to order item [ CLOSE ]
