SKU: SKU: HKS80270-AS004
Vehicle: Model
Application
Specifications

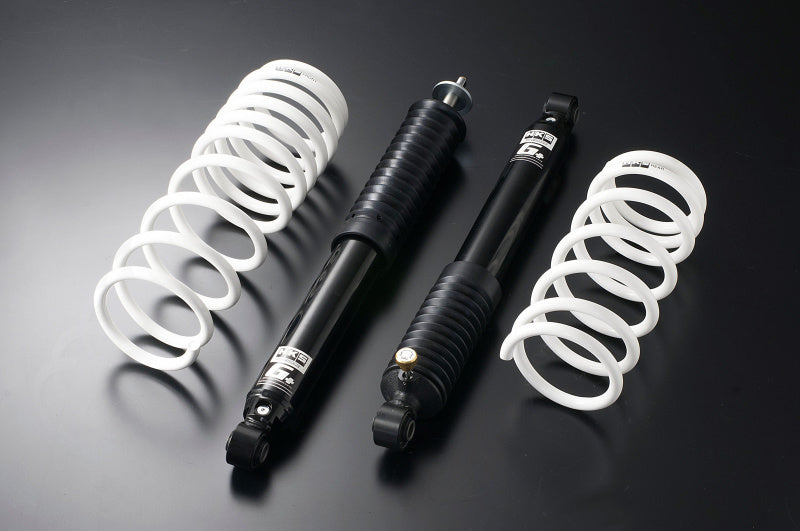

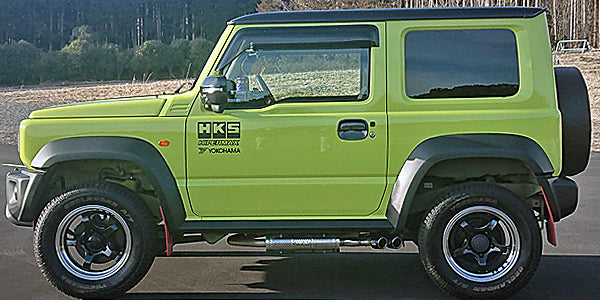

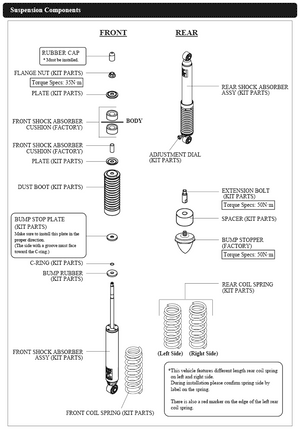

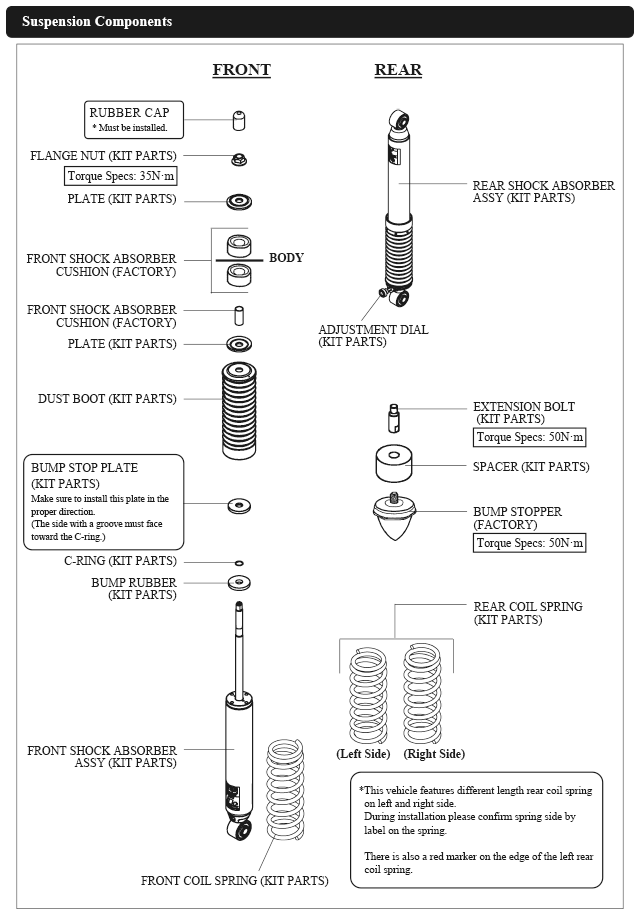

JIMNY SIERRA JB74W Dynamic lifted-up style with ensuring comfort in street driving. HIPERMAX G+ LIFT UP for JIMNY SIERRA (JB74W) ＜Product Basic Structure＞
Single
Tube Damper Assembly
Lift
Up *The stock upper mounts are used.
Features
Lifting up the vehicle height 20 to 25 mm higher makes JIMNY SIERRA more stylish and it also set to a good match with the high rate spring. Reduce excessive body roll or yawing due to the strong damping force made by the single-tube shock absorber. It also provides a comfortable ride on the paved road. Significantly improved the stability when turning by reducing the degree of body roll and speed. Offers 30 steps of adjustable damping force that can be selected for your preferable ride.

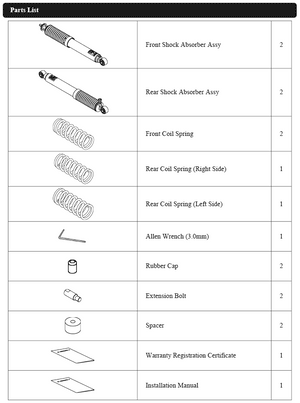

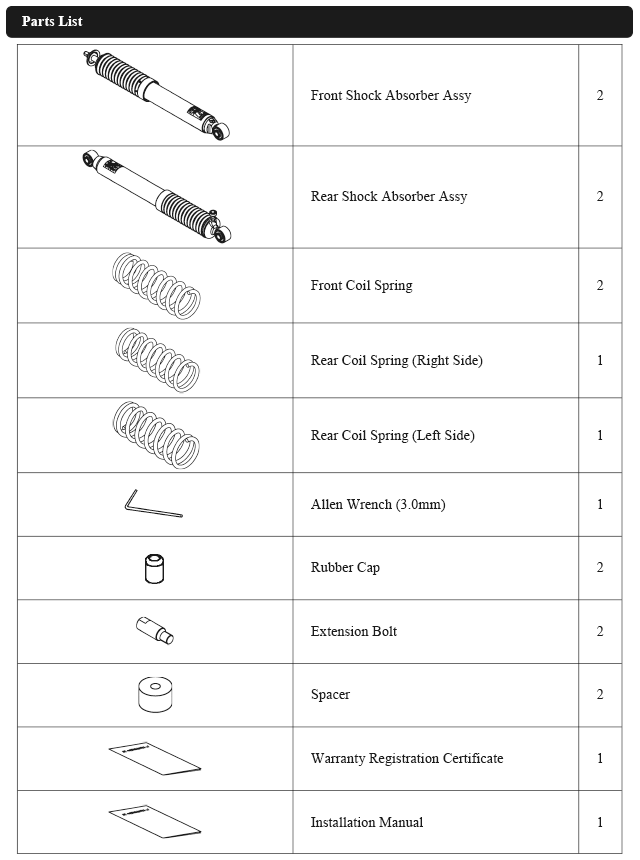

Kit
Parts Vehicle Model Engine Model Year Series Full Kit Spring Rate F/R Free Height Damping Force Piston Speed 0.1m/sec Damping Force N Vehicle Height (Highest - Lowest) Code No. Manual Remarks F: Rebound/Compression R: Rebound/Compression JIMNY SIERRA JB74W K15B 18/07 - G+ F=45(4.6)/R=39(4) Special/Special 471/422 353/265 +25 +20 80270-AS004 Make to order item Equipped with damping force adjustment 30 levels. Please use a stock bump rubber. [ CLOSE ]
Source: HKS Japan · Detail page
